Mitutoyo AT211 - Connection Method

37
4Specication
No. 99MBE011A
4.5.4 Connection Method
Do not directly supply air from the compressor to the air unit. Make sure to use dry compressed air
through the air dryer or main line air lter.
Attach the xed diaphragm to the scale side.


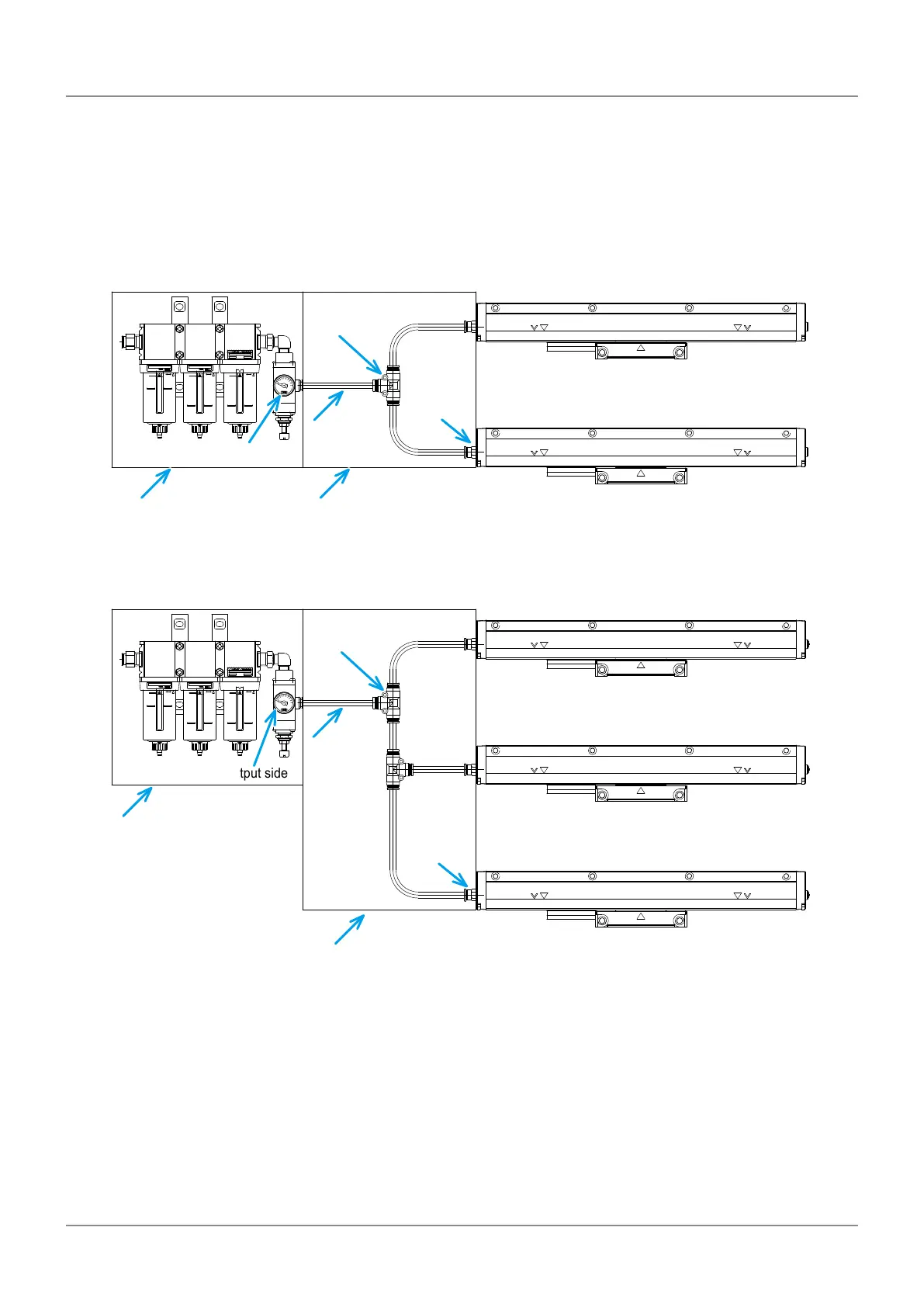

When supplying air to two linear scales (two axes)
T-joint
Linear scale (option)
Fixed
diaphragm
ø6 tube
Pressure on output side
Air unit (main unit)
(Part No.06ACJ154)
Option set for two linear scales (two axes) (optional: Part
No.06ACJ162)

When supplying air to three linear scales (three axes)
T-joint
Fixed
diaphragm
ø6 tube
Pressure on output side
Linear scale (option)
Air unit (main unit)
(Part No.06ACJ154)
Option set for three linear scales (three axes) (optional: Part No.06ACJ163)
Tips
• For each air unit, air can be supplied up to ve axes.
• You can connect up to four to ve axes by combining option sets for two axes (No.06ACJ162) and three axes
(No.06ACJ163).
A ø6 air tube (length: 20 m) is included in each option set.
• For information on maintenance, refer to the manual supplied with the unit.
