Mitutoyo AT211 - 4.3 DIP Switch Settings

28
4Specication
No. 99MBE011A
4.3
DIP Switch Settings

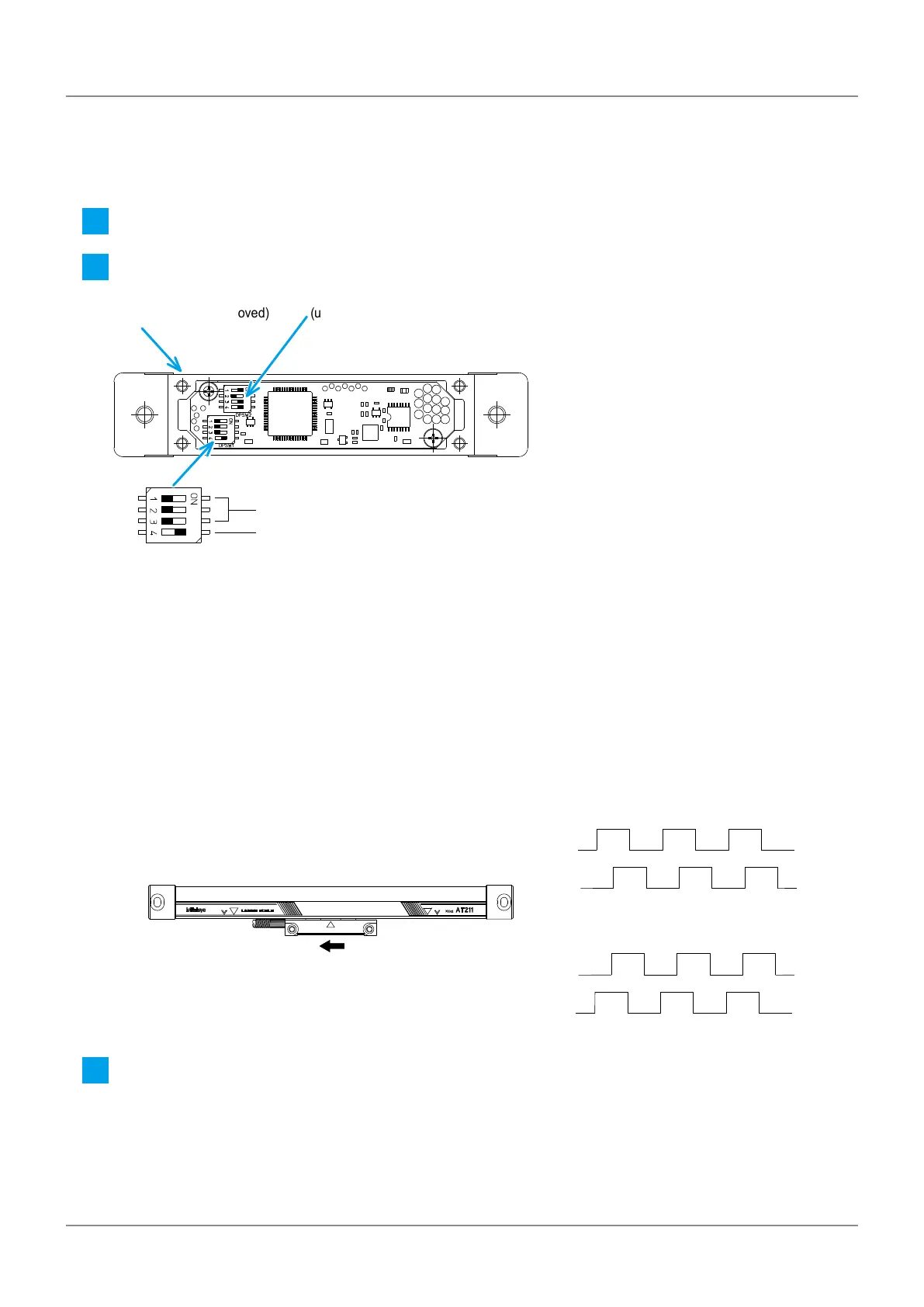

You can switch the direction with the DIP switch on the Detector board.
1
Remove the screws (four locations) that x the Detector cover.
2
Change the switch 4 setting with DIP switch 1 on the board.
Detector
(when the cover is removed)
Fixed when shipped (unable to be set by
user)
Direction setting (switch 4)
DIP switch 1
DIP switch 2: Fixed when shipped
(unable to be set by user)
Tips
• Do not change the switch 1—3 setting with the DIP switch 1 (xed when shipped). If you changed the set-
ting by mistake but do not know the default setting, please contact the nearest Mitutoyo sales o󰀩ce/service
center before turning on the system.
• Do not change the switch 2 setting (xed when shipped). If you changed the setting by mistake but do not
know the default setting, please contact the nearest Mitutoyo sales o󰀩ce/service center before turning on
the system.
Tips
When you turn on switch 4 on DIP switch 1, the PA phase is set to phase advance as follows.
PA
PB
PA
PB
Detector move direction
When switch 4 is ON: PA phase: Phase advance
When switch 4 is OFF: PB phase: Phase advance
3
Fix the Detector cover with the screws (four locations). (Screw tightening torque: 0.18 N･m)
