2.2.5 Precautions on Designing the Mounting Surface
The following describes precautions on designing the mounting surface.
For details about the mounting specications, see
"4.6 External View and Dimensional Drawings of
the Scale Main Unit" (page 38)
For details about the mounting procedures, see
"3 Installation onto the Machine Main Unit" (page
15)

Precautions

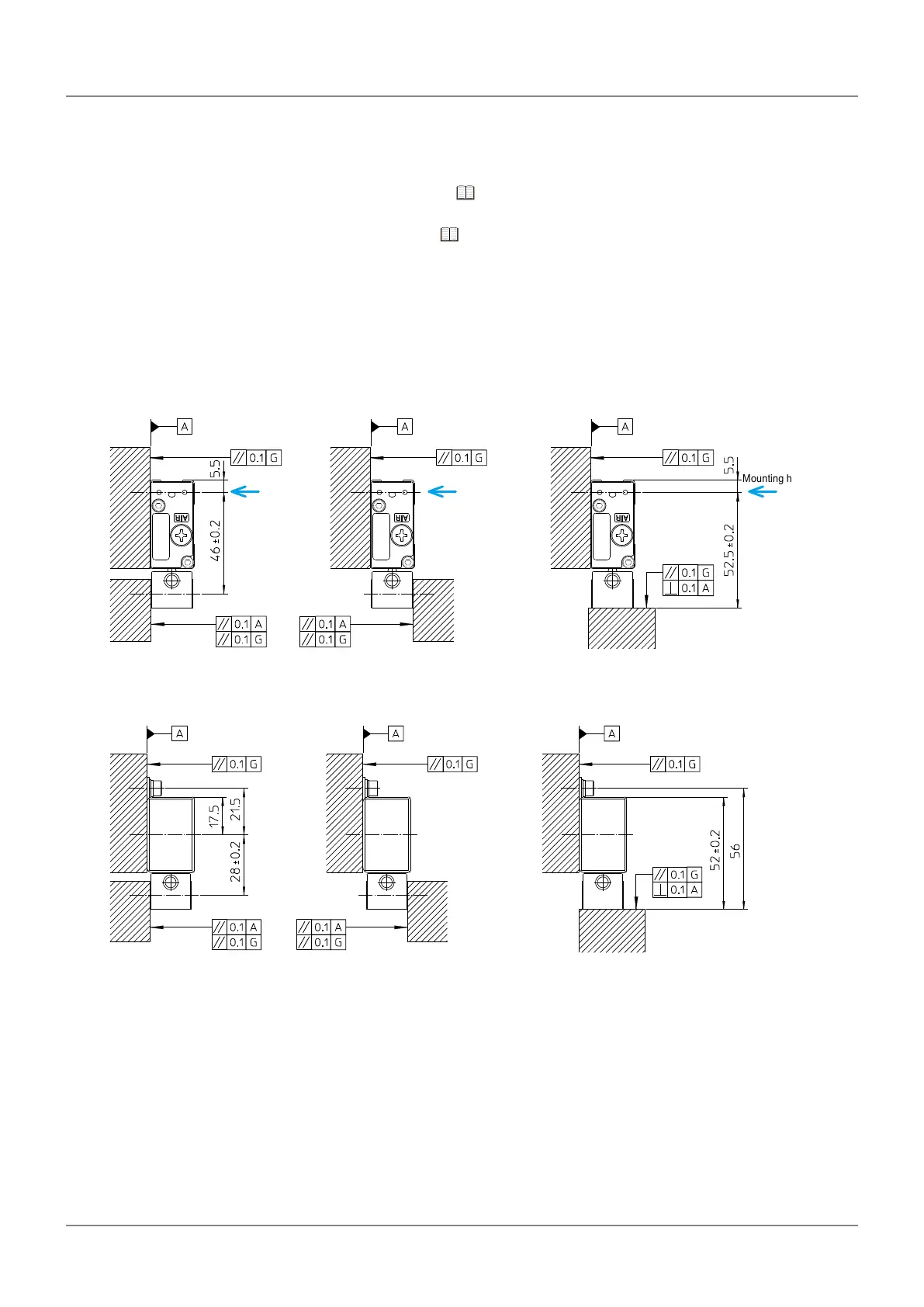

y The mounting surfaces of the scale main unit and the Detector must be machine-processed to be
that. The following shows tolerances on the machine surfaces.
z
Fixing at multiple points
Mounting hole position Mounting hole position
Mounting hole position
G: Machine guide
z
Fixing at both ends
G: Machine guide
y Use the detector xing block to adjust the clearance between the scale main unit and the Detector.
y If there is a gap between the Detector and the mounting surface, select the most appropriate spac-
er from the supplied ones (thickness = 0.3/0.4/0.5/0.6 mm) and insert it in between them.
