4Specication
No. 99MBE011A
Cable clamp material
Hexagonal joint stand
Hexagonal nut
9

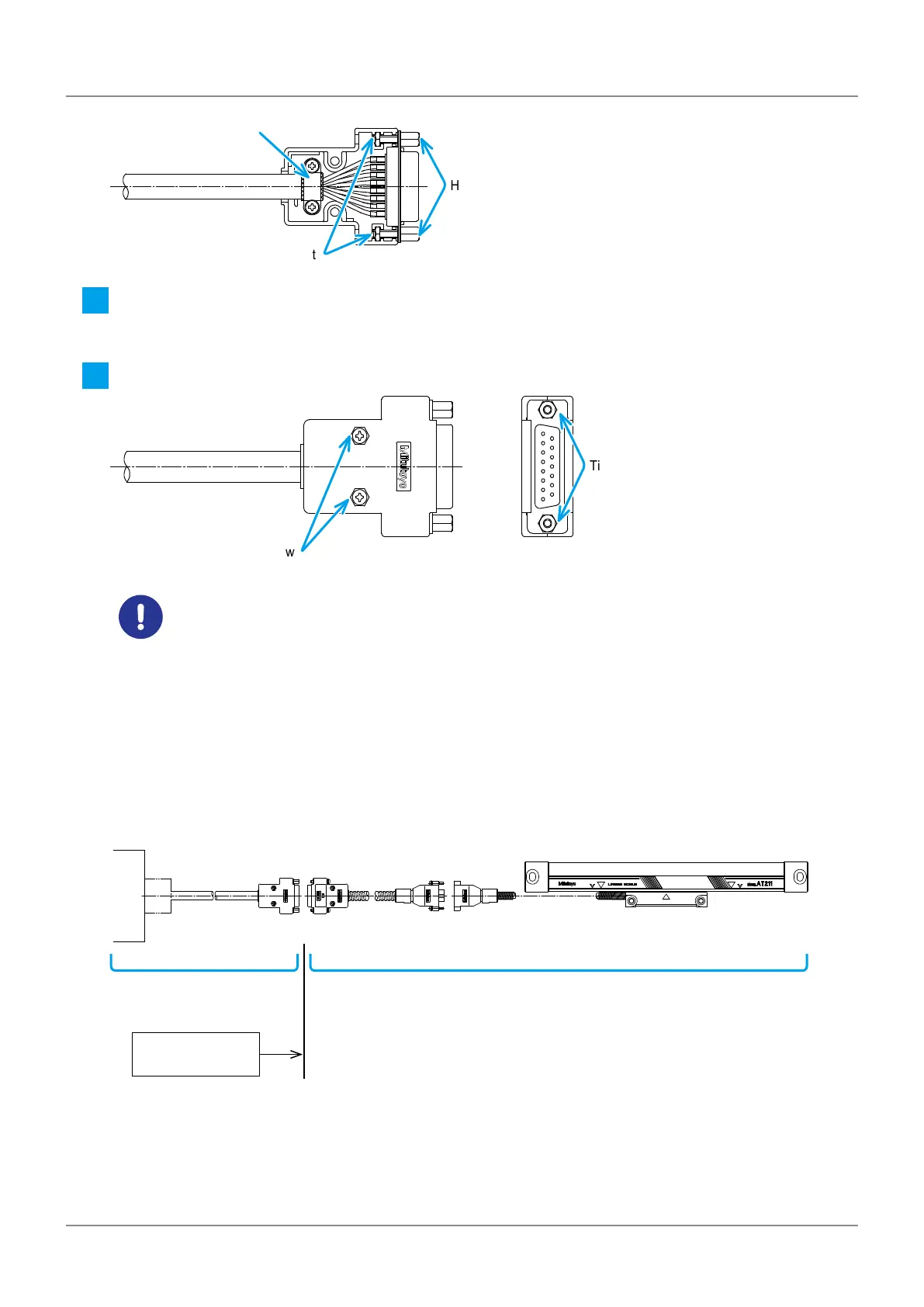

Place the other plug case (supplied accessory) and x it with screws (M2.6 x 14, hex nut/supplied
accessory).
10
Tighten the hexagonal joint stand temporarily xed in step 8.
Tighten
Plug case xing screw
Apply screw locking glue for the screw units.
4.4.3 Calculation of Feedback Cable Length
When making a feedback cable, refer to the following calculation method of maximum cable length.

Conguration
NC device
Feedback cable
and NC device
AT211 (scale unit and signal cable)
Relay connector unit
voltage
