3 Installation onto the Machine Main Unit
No. 99MBE011A
1

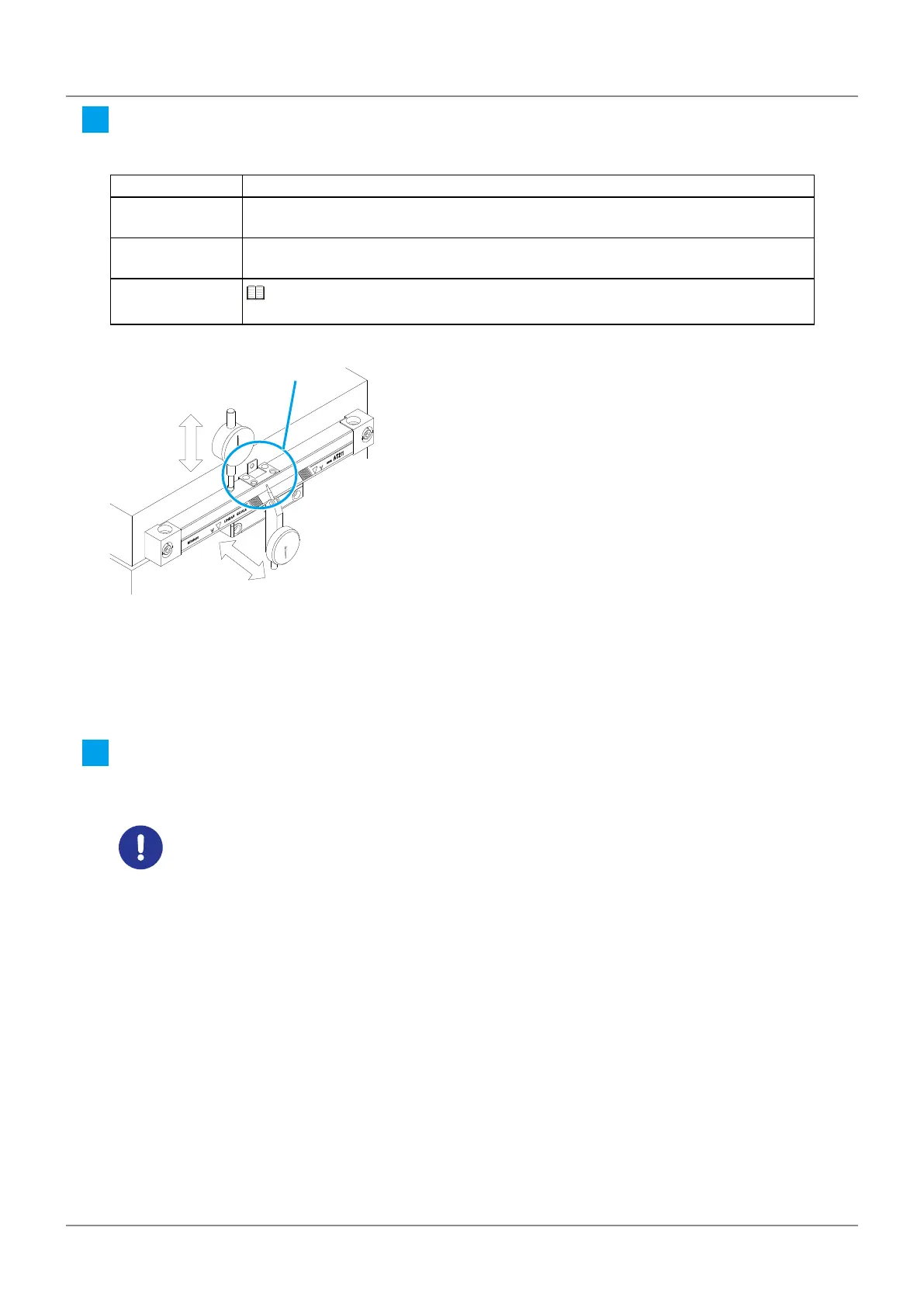

Move the dial indicator to near the intermediate support and check the parallelism of the scale main
unit against the machine guide.
Item Description
Measurement
location
Scale main unit near the intermediate support
Check direction
Forward, backward, upward, and downward directions of the mounting surface of
the scale main unit
Parallelism allow-
ance
"4.6 External View and Dimensional Drawings of the Scale Main Unit" (page
38)
Upward and
downward
directions
Forward and
backward
directions
Near intermediate support
3.2.3 Fully Fixing the Scale Main Unit
1
After checking and adjusting the parallelism of the scale main unit, fully tighten the xing screws on the
scale.
• When the intermediate support is used, tighten the xing screws on the support as well.
• The tightening torque for xing screws is as follows:
- M4 screw (for xing at multiple points and intermediate support): 3 N•m
- M6 screw (for xing at both ends) 9 N•m
