Mitutoyo AT211 - One Detector Cable Type

27
4Specication
No. 99MBE011A


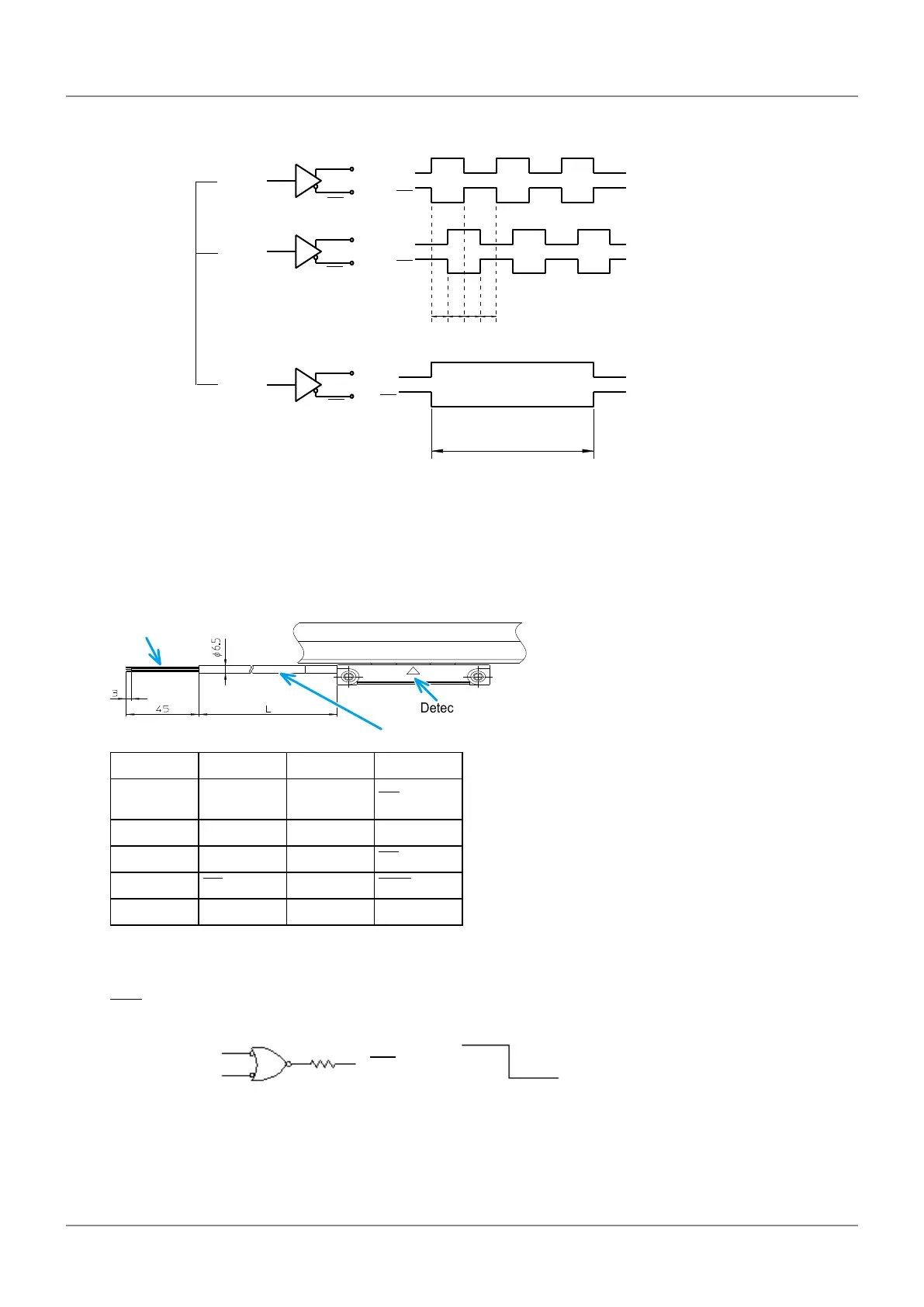

Output diagram
60 μm ±10 μm
tttt
AM26C31
PA
PA
PB
PB
PZ
PZ
PA
PA
PB
PB
PZ
PZ
A-phase
B-phase
Z-phase
Minimum edge interval: t = 125 ns—1000 ns
4.2.2 One Detector Cable Type

Connection diagram
Discrete wire
Detector Cable
Detector
Wire color Signal Wire color Signal
White,
black
0V Blue
PB
Brown, red +5 V Purple PZ
Orange PA Gray
PZ
Yellow PA Pink ALM
Green PB

Output circuit specications
ALM signal
Alarm circuit
1 kΩ
High
ALM
Equivalent to TC7S08 (Toshiba C-MOS)
LOW (when an alarm occurs)
