3 Installation onto the Machine Main Unit
No. 99MBE011A
3.4
Connecting and Fixing the Signal Cable
3.4.1 Connecting the Signal Cable
Tips
• Make sure that the connecting direction of the connector is correct.
• The connector is waterproof, but if it is not fully plugged, it may cause malfunctions.
1

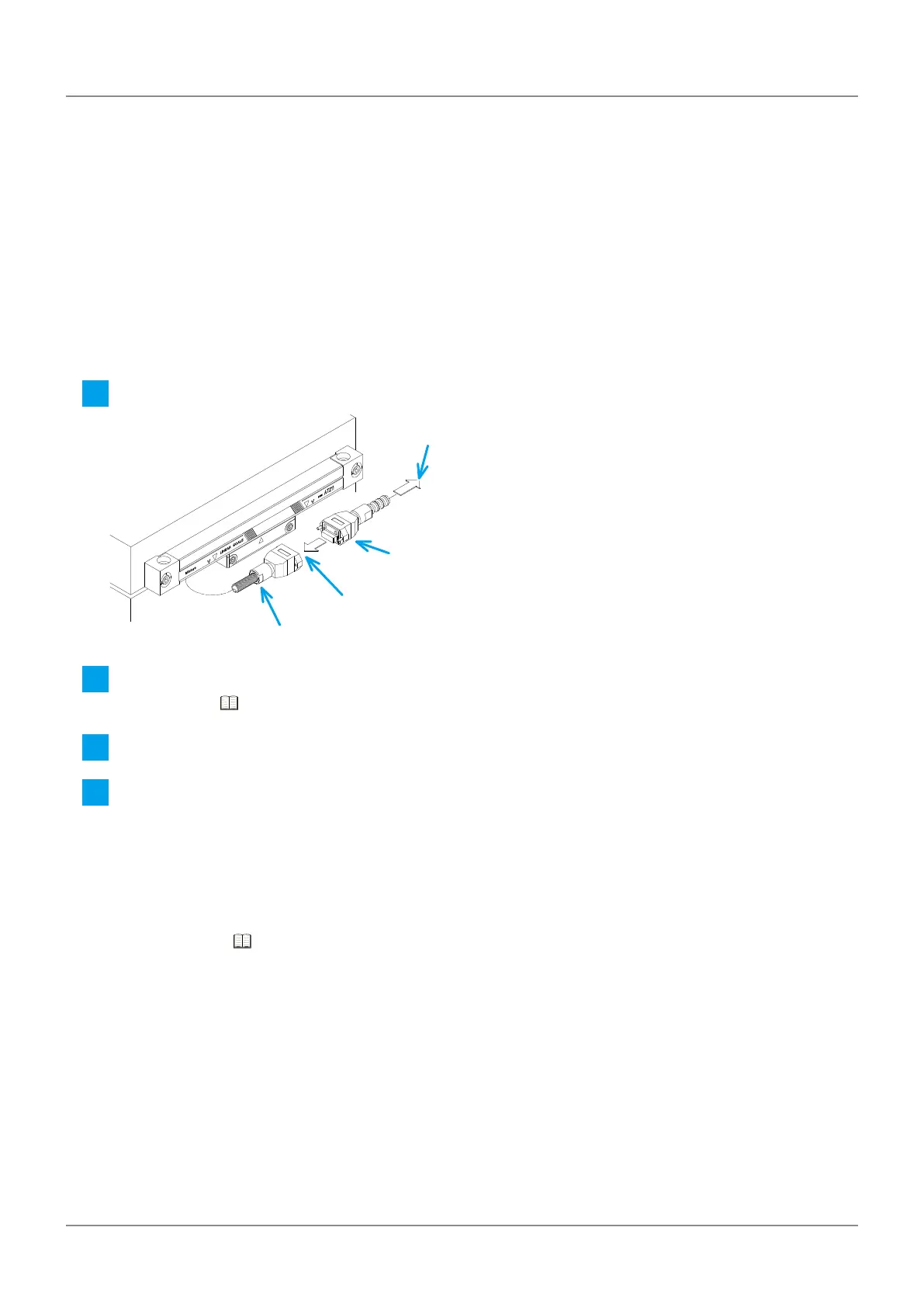

Connect the detector cable and the signal cable.
Connect to NC device or
some other device
Signal cable
Connect
Detector cable
2
Connect the signal cable to the NC device.
For details, see "4.4 Production of Feedback Cable" (page 29)
3
Make sure the screws on the connector plug are fully tightened.
4
After connection of cables etc. is completed, turn on the power and check the operations, functions,
and performance of the scale unit.
Tips
• After turning on the power, if the scale unit does not operate normally, check the connections rst. If the
scale does not operate normally even after the status of connections is checked and the power is supplied
again, investigate the cause.
For details, see "5 Troubleshooting" (page 43)
• When checking the scale unit operations, be very careful that no cables are being pinched by the machinery.
• When connecting the connectors, if chips or other foreign objects are sandwiched in, that may cause mal-
functions.
