3 Installation onto the Machine Main Unit
No. 99MBE011A

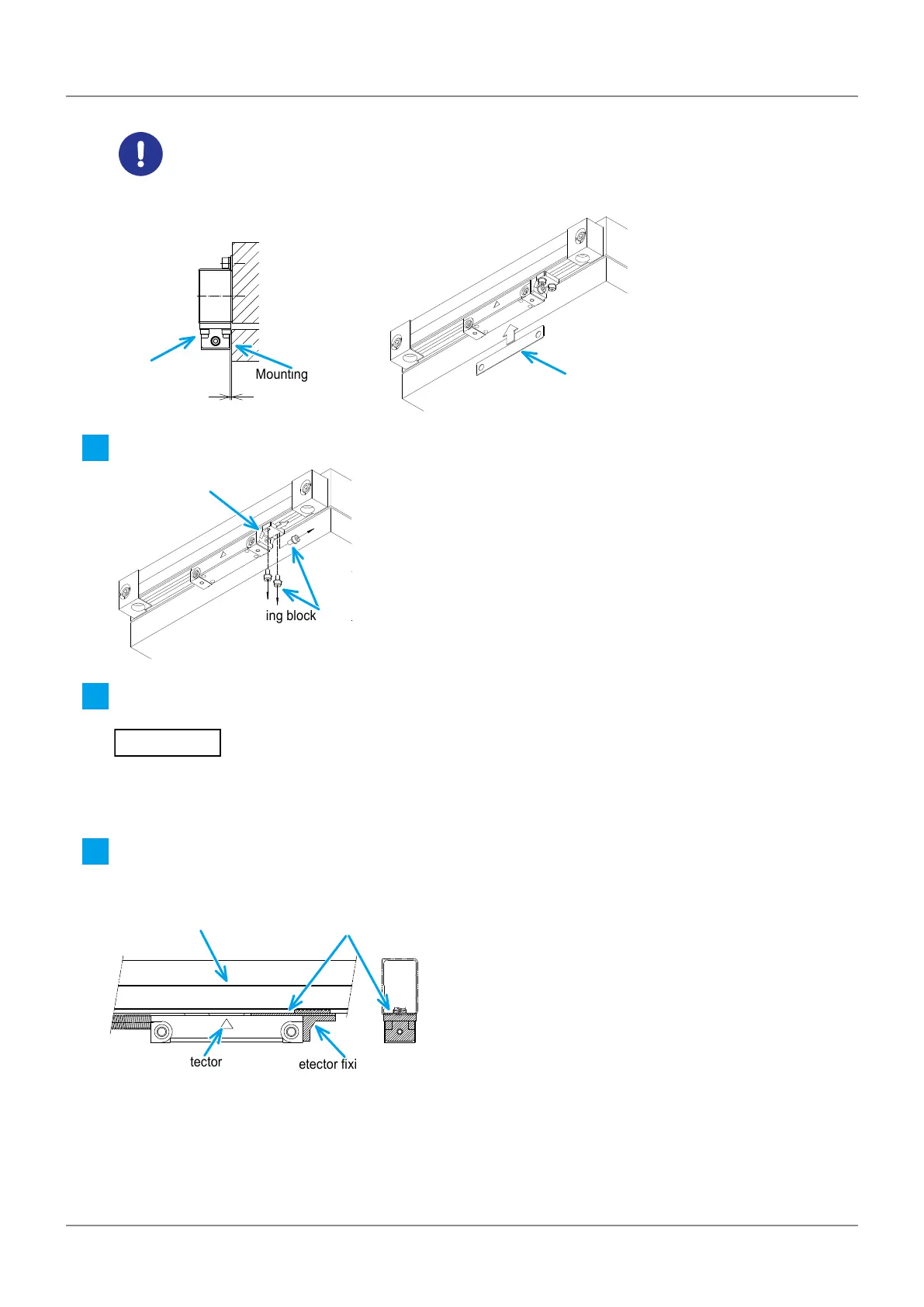

If there is a gap between the Detector and the mounting surface, select the most appropriate spacer
from the supplied ones (thickness = 0.3/0.4/0.5/0.6 mm) and insert it in between the Detector and the
mounting surface.
Detector
Mounting surface
Gap
Spacer
3
Remove the screws (three locations) that x the detector xing block.
Detector xing block
Detector xing block
Fixing screw
4
Fully x the Detector with the supplied screws.
If you fully tighten the screws for xing the Detector without inserting the spacer although there is a gap be-
tween the Detector and the mounting surface, the scale unit may be damaged.
5
Make sure that the detector xing block can be smoothly removed and inserted and there is no gap
between the Detector and the mounting surface.
Detector
Scale main unit
Keep these surfaces in
absolute contact
Detector xing block
To Next Page
