17
3 Installation onto the Machine Main Unit
No. 99MBE011A

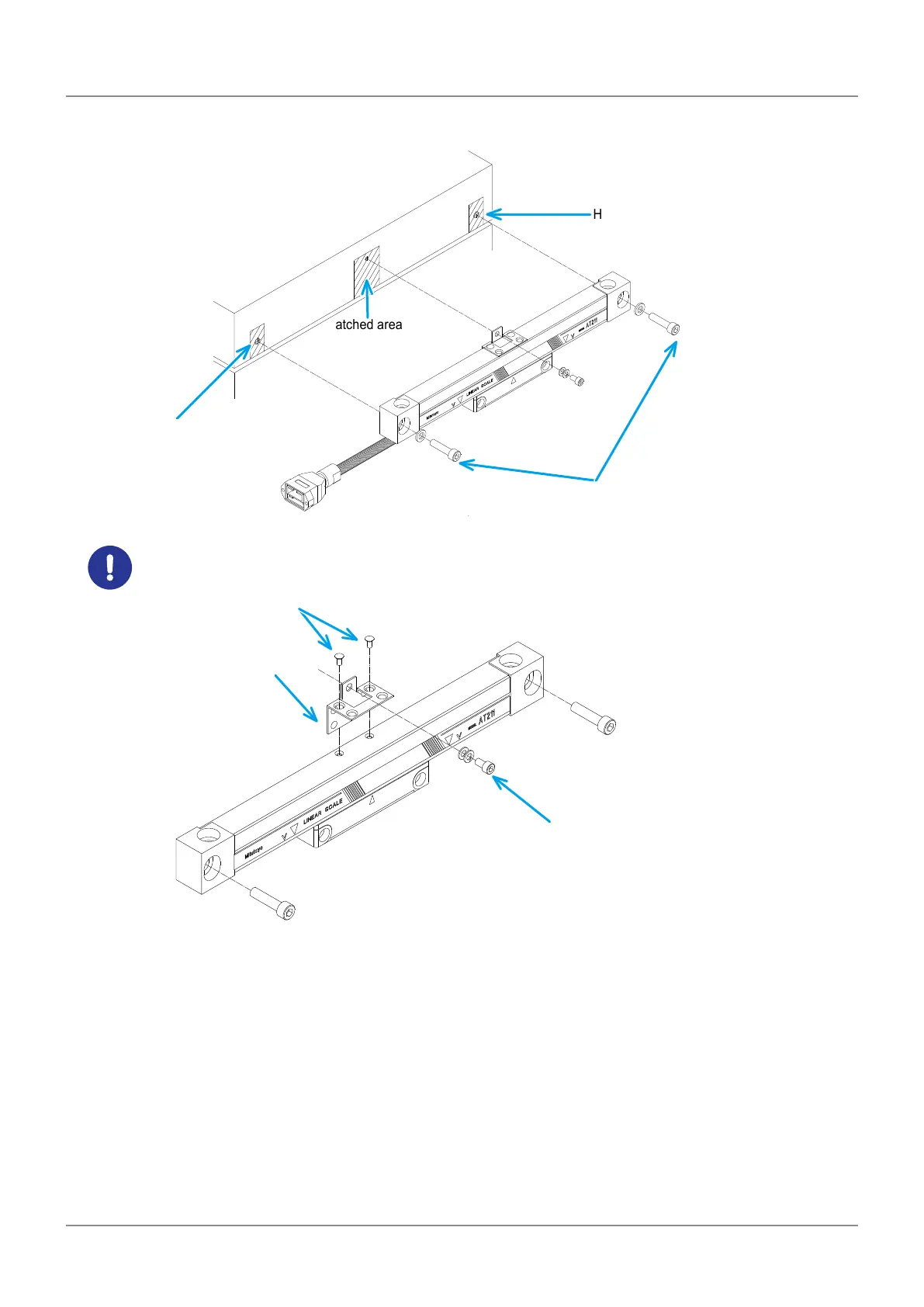

Fixing at both ends
Hatched area: Machined surface
Hatched area: Machined surface
Fixing screw M6 x 25
Use a spring washer and plain washer.
Hatched area: Machined
surface (when installing
intermediate support)
Install the intermediate support for a scale unit that is xed at both ends and has an eective length of
500 mm or more.
Fixing screw M4 x 8
Use a spring washer and plain washer
(temporarily xing).
Intermediate
support
Intermediate support mounting screw (M3 countersunk screw) (fully xing)
