3 Installation onto the Machine Main Unit
No. 99MBE011A
Tips
• Check that excessive force is not applied to the detector cable, signal cable, and feedback cable throughout
the entire stroke. In particular, make sure that they are not in contact with the parts such as the cover at-
tached to protect the scale unit.
• Consider the shake due to vibration, etc. given to connectors.

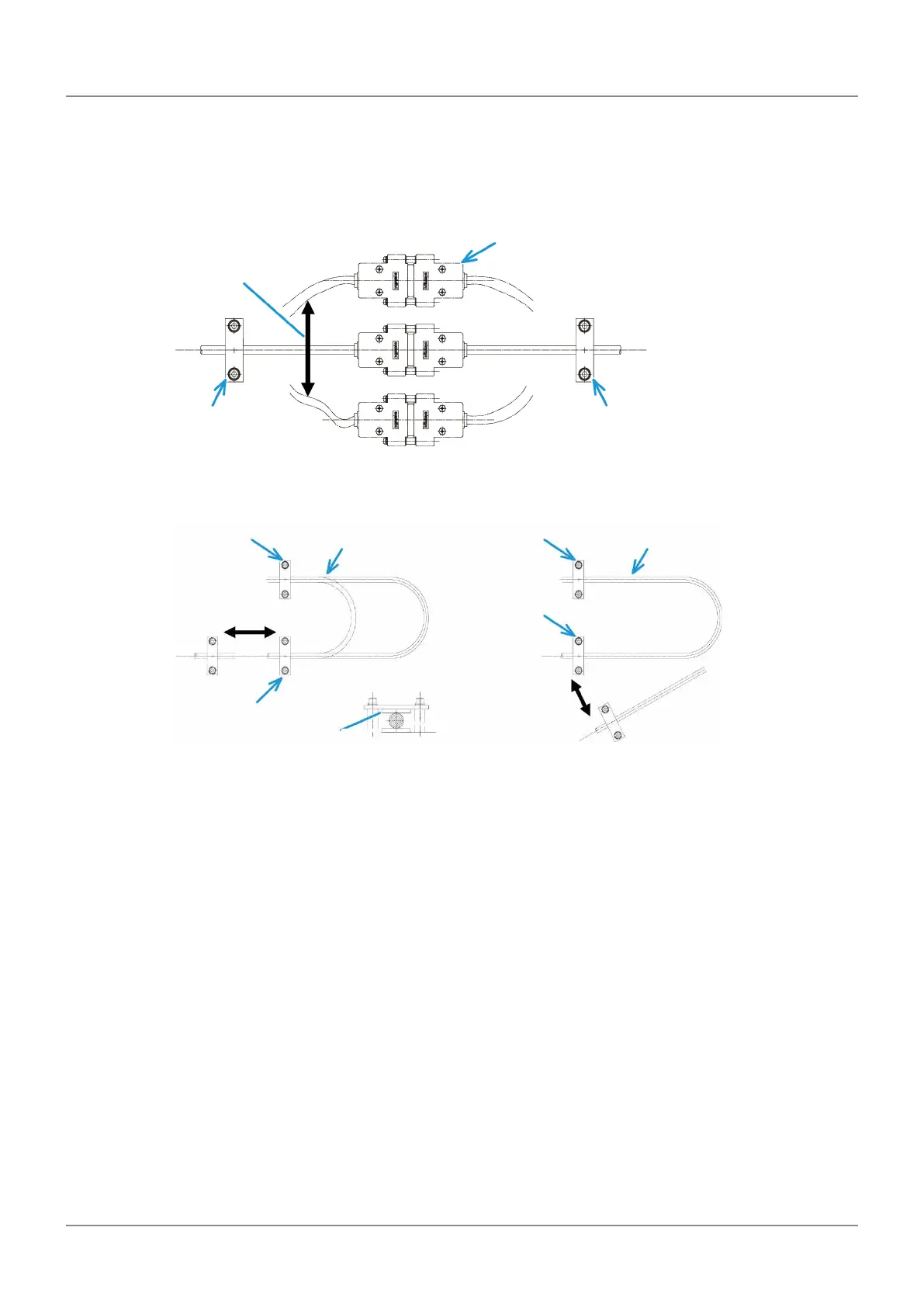

Shake given to
connector
Connector
Cable
ClampClamp
• Do not bend the cables.
• If the cables are going to be repeatedly bent, try to reduce stress applied to near the root of the clamping
part.
Cable Cable
Cable
Clamp
Clamp
Clamp
Clamp
Cushioning
Clamp
To Next Page
