10 Description of the switch function
10.1 General Description
The switch program is composed of 99 week programs and 64 channel programs.
The week programs describe the behaviour during one week, independent of date and
channel number. Such a week program can contain numerous lines and each line is
composed of time of the day, days of week as well as the switching function to be
executed at this moment.
The 3 possible switching functions are: ON, OFF, Signal 01 – 99 Seconds.

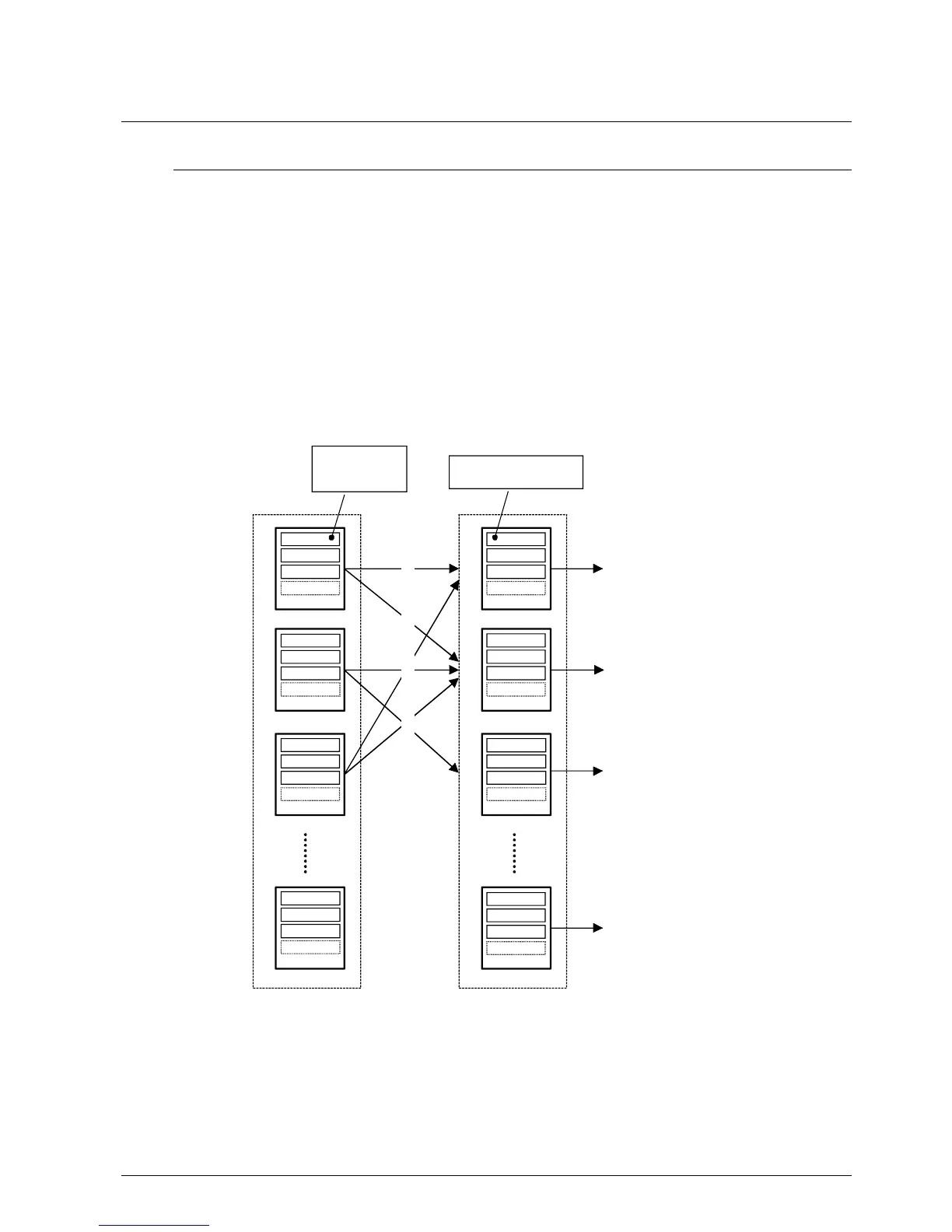

Now the channel programs assign the week programs to the channels, which are
dependent on the date. Such a channel program can contain several lines. Each line is
composed of the starting date and the number of the week program to be used.
Up to 1000 lines can be programmed in this way. This is the total sum of the lines in
the week and channel programs.
Line 1
Line 2
Line 3
Time of day
Switching function
Weekday
Line of a week program:
Start date
Week program number
Line of a channel program:
W.prog. 1
Ch.prog. 1
W.prog. 2
Ch.prog. 2
W.prog. 3
Ch.prog. 3
W.prog. 99
Ch.prog. 64
Week programs Channel programs
free assignment and multiple use of week programs
Line 1
Line 2
Line 3
Line 1
Line 2
Line 3
Line 1
Line 2
Line 3
Line 1
Line 2
Line 3
Line 1
Line 2
Line 3
Line 1
Line 2
Line 3
Line 1
Line 2
Line 3
Channel 1
Channel 2
Channel 3
Channel 64
With the PC software "SwitchEditor" the switch programs can be created on a PC and
then be downloaded to the DTS 480x via FTP / USB stick.
A maximum of 8 characters are allowed for the file name of the switch program file
and its extension is PRG, Prg or prg.
Additionally the SwitchEditor project file (mbs3) can be stored on the DTS 480x.
