FUNCTIONING
1.2 WARM-UP
When the door is closed, if one of the 6 available sterilization cycles is selected and activated, the door is locked and
the WARM-UP phase is activated.
During this phase are warmed up:
- chamber by the chamber heating element;
- generator by the generator heating element;
until reaching the following temperature levels.
- tube bundle heating element > PT3 temperature reading - 110°C;
- generator heating element > PT2 temperature reading - 140°C;
- chamber > PT1 temperature reading - 60°C.
When the above values are reached, the next phase begins. This is the 1
st
VACUUM PHASE.
The 1
st
VACUUM PHASE will start after 10 minutes even though the temperature readings are below the values listed
above.
The WARM-UP phase is divided into 2 sections:
- section 1 continues until PT2 temperature reading = 110°C
- section 2 continues until PT2 temperature reading = 140°C
During section 2 of the WARM-UP phase, the following components are turned on:
- vacuum pump
- solenoid valve EV2 (air suction)
- solenoid valve EV4 (vacuum pump bypass)
so that the pump reaches its regular operating conditions and any condensate in the tubes is eliminated.

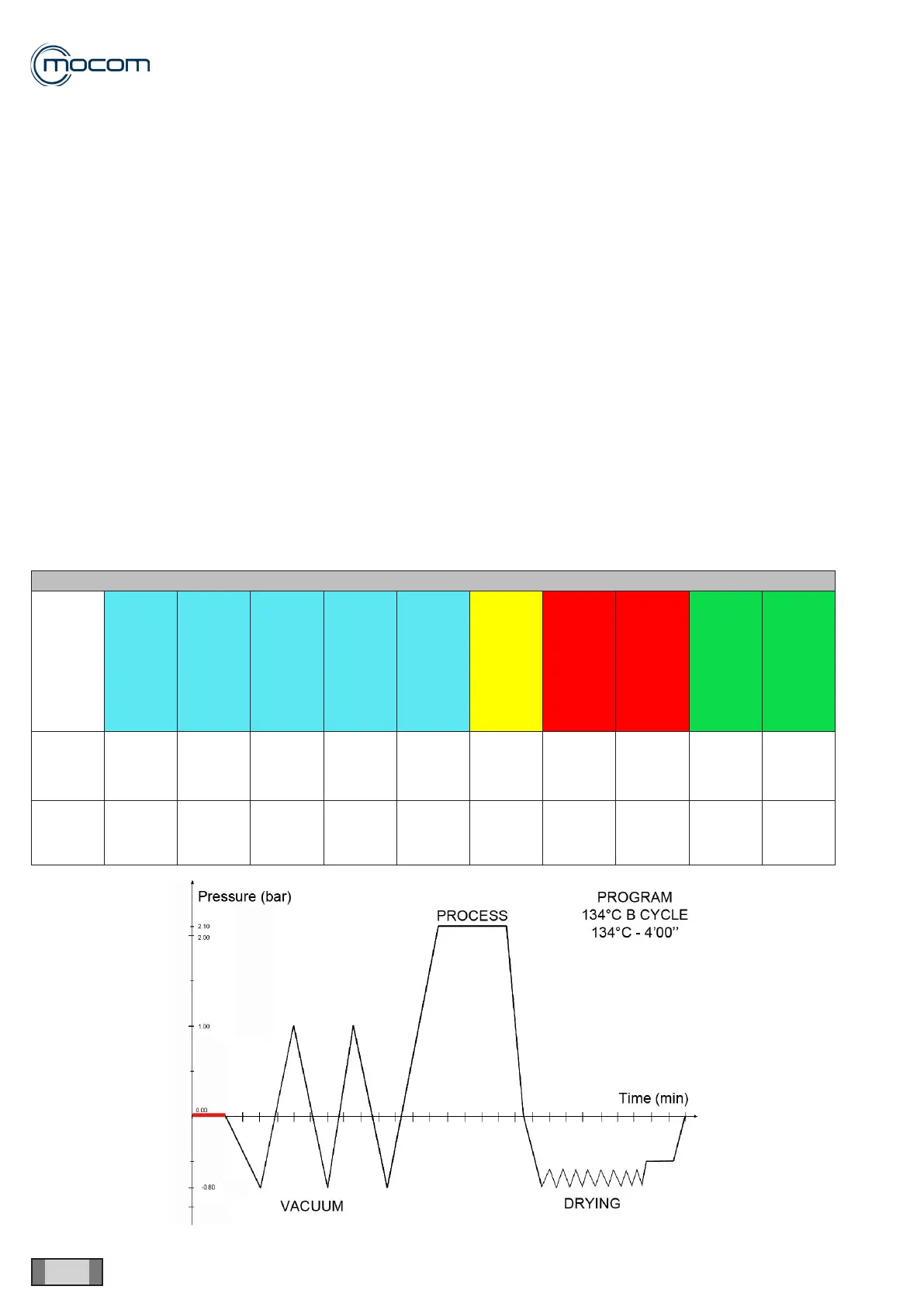

WARM-UP - components on state
STATE
EV1
Drain
High (NO)
EV2
Air inlet
(NC)
EV3
Drain Low
(NC)
EV4
Drain
bypass
(3V)
EV5
Air inlet to
chamber
(NC)
FAN
WATER
PUMP
VACUUM
PUMP
CHAMBER
BUNDLE HTR
GENERATOR
HTNG ELMT
Section
1
On
closed
Off
closed
Off
closed
Off (0)
On
open
OFF OFF OFF ON ON
Section
2
Off
open
On
open
Off
closed
On (1)
Off
closed
ON OFF ON ON OFF
