B CLASSIC / B FUTURA / S CLASSIC - TECHNICAL MANUAL
TECHNICAL DATASHEET
1. Electronic card.
2. PT1 wiring connection.

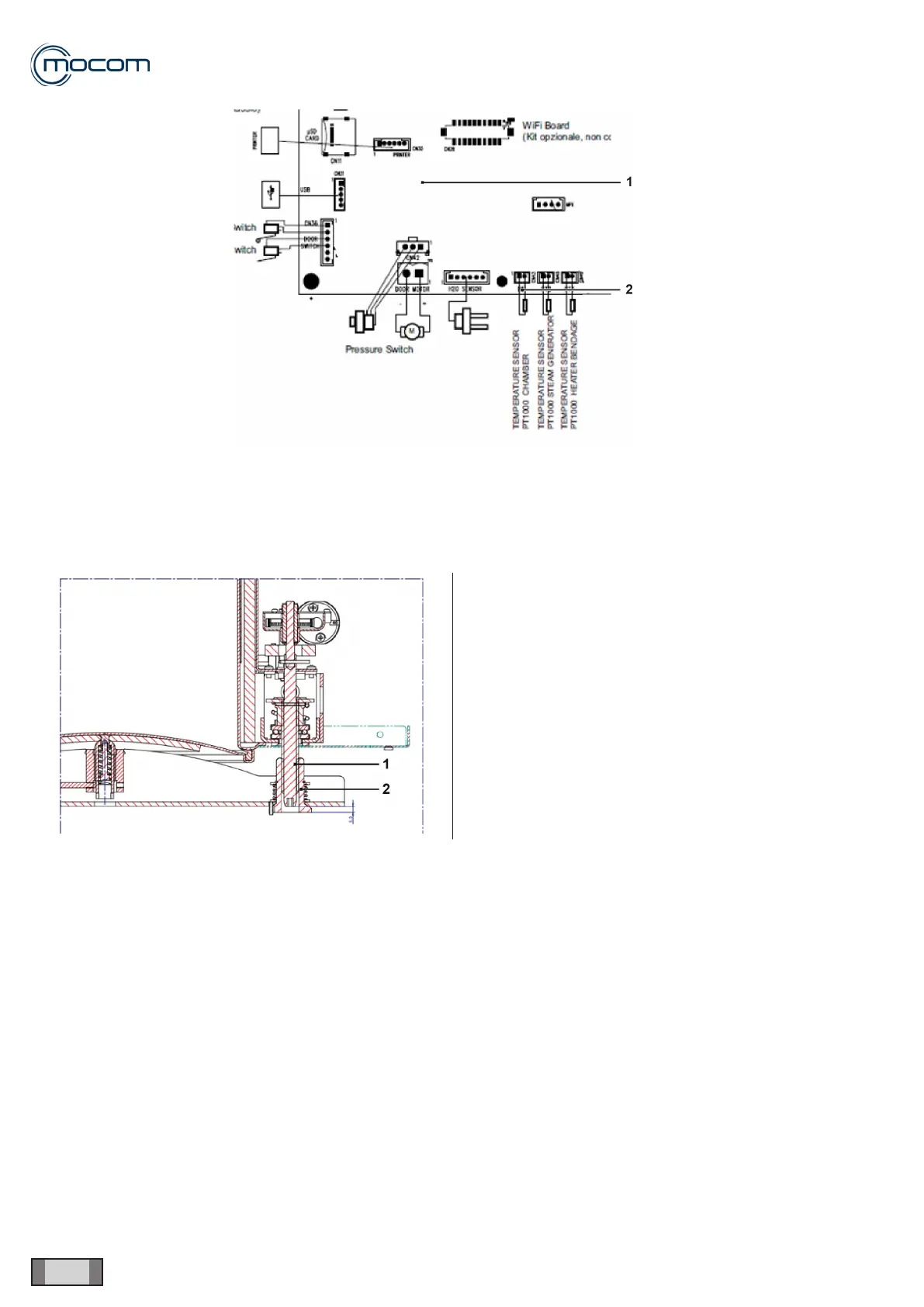

5.6 TECHNICAL DATASHEET ST02 – DOOR ADJUSTMENT
1. Wormscrew.
2. Threaded bushing.
The image above shows the ideal value – 5.3mm – measured when the door is locked between the outer face of the
threaded bushing installed on the door cross member and the head of the wormscrew which is actuated by the door
closing system.
The tolerance allowed on the specied value is +/- 0.5 mm (min. value 4.8mm / max. value 5.8mm).
The 5.3mm value, which is the same for all autoclave models, is dictated by the position of the stainless steel door
relative with the door cross member.
Door position can be varied by adjusting the door; this procedure is performed at the factory and normally does not
need to be repeated.
Checking/adjusting the door is only necessary after replacing one of the mechanical components of the closing system
– door, door cross member, threaded bushing, wormscrew.
To measure the value specied above and adjust the door, if needed, use the closing system manual control available
in menu SERVICE / COMPONENT TEST / DOOR-SQ10.
