B CLASSIC / B FUTURA / S CLASSIC - TECHNICAL MANUAL
TECHNICAL DATASHEET
Cleaning inside of generator
- Remove the steam generator from its mount removing the 2 fastening screws and their double insulating washers.
- Disconnect the reinforces inlet and outlet tubes removing the 2 stainless steel clamps.
- Disconnect the wiring connected to the safety thermostat.
- Disconnect PT2 wiring from the general electronic card.
- Remove the external heat insulation.
- Lock the central core from the 2 suitable ats at the sides of the heating element seat.
- Unscrew generator outer body, and withdraw the central core.
- Remove any limestone residue in the grooves and passages of the central core.
- Clean the inside of generator body and the 2 water and steam passages.
- Remove the 2 O-rings from the central core and replace them with new O-rings.
- Screw the central core fully home onto the outer body.
- Ret the external insulation and the aluminium fastening strap.
- Ret the generator on its mount using the 2 fastening screws and the double insulating washers.
- Reconnect the reinforced tubes and secure them in place using new stainless steel clamps.
- Reconnect the safety thermostat wiring and the PT2 wiring.

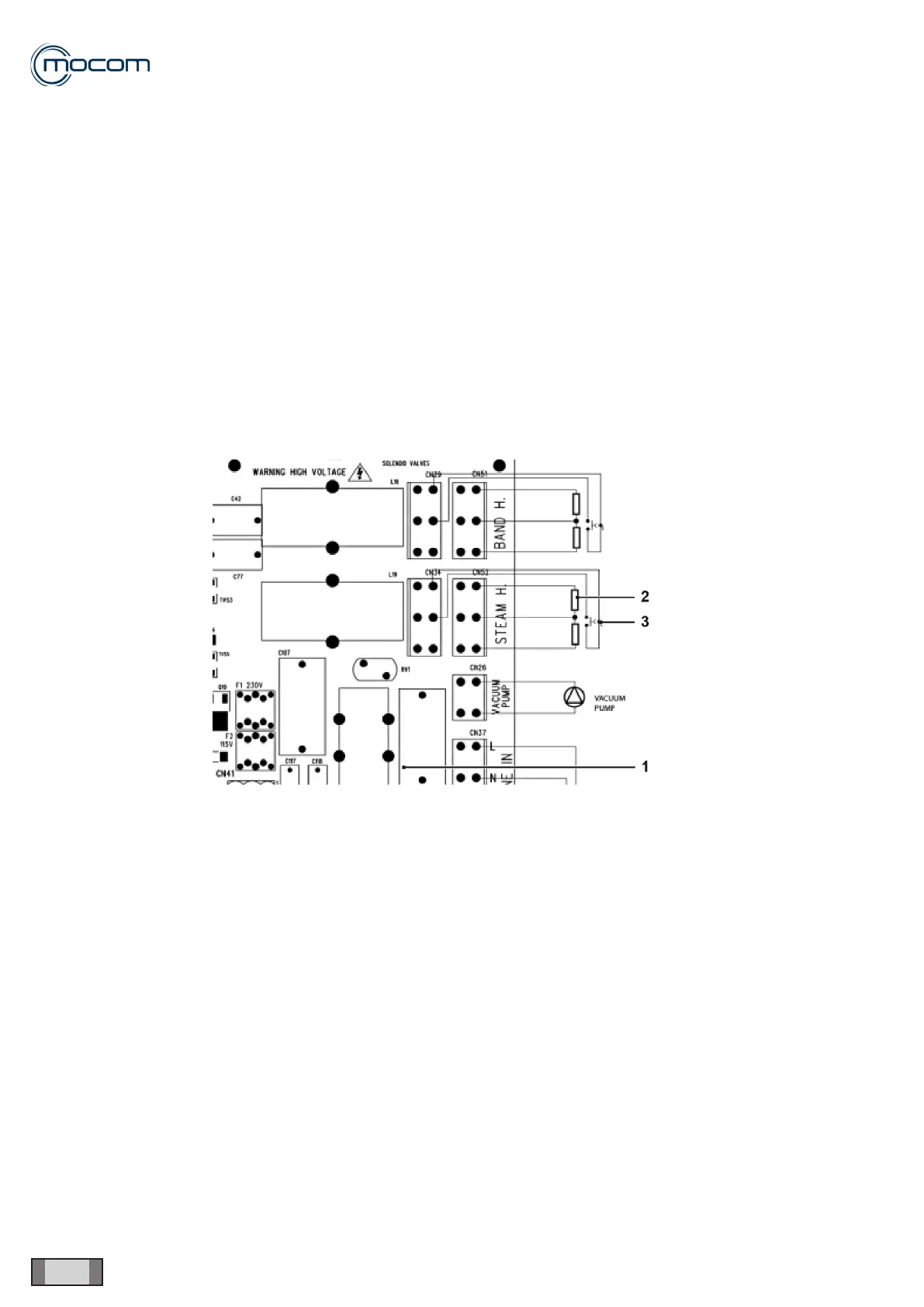

GENERATOR HEATING ELEMENT TO GENERAL CARD CONNECTION
1 Autoclave general card
2 Heating element - 230V connection
3 Safety thermostat.
