TECHNICAL MANUAL - B CLASSIC / B FUTURA / S CLASSIC
TECHNICAL DATASHEET
For EV4 only, proceed as follows:
- Disconnect the power supply wiring (2 wires) from the coil; make sure to note the colour of the 2 wires.
- Disconnect the tube that runs to the upper tting by removing the retaining clamp.
- Unscrew the top tube tting together with the intermediate tting.
- Unscrew the coil retaining nut.
- Withdraw the coil from the cursor holder assembly.
- Unscrew the cursor holder assembly using a hexagon key; do not apply any tools to the cylindrical body of the cur-
sor holder assembly.
To ret, begin by positioning the cursor holder assembly, fasten the coil, t the intermediate tting/top tube holder (use
thread locker), connect the wiring, and connect the tube to the upper tting locking in place with the new stainless steel
clamp.

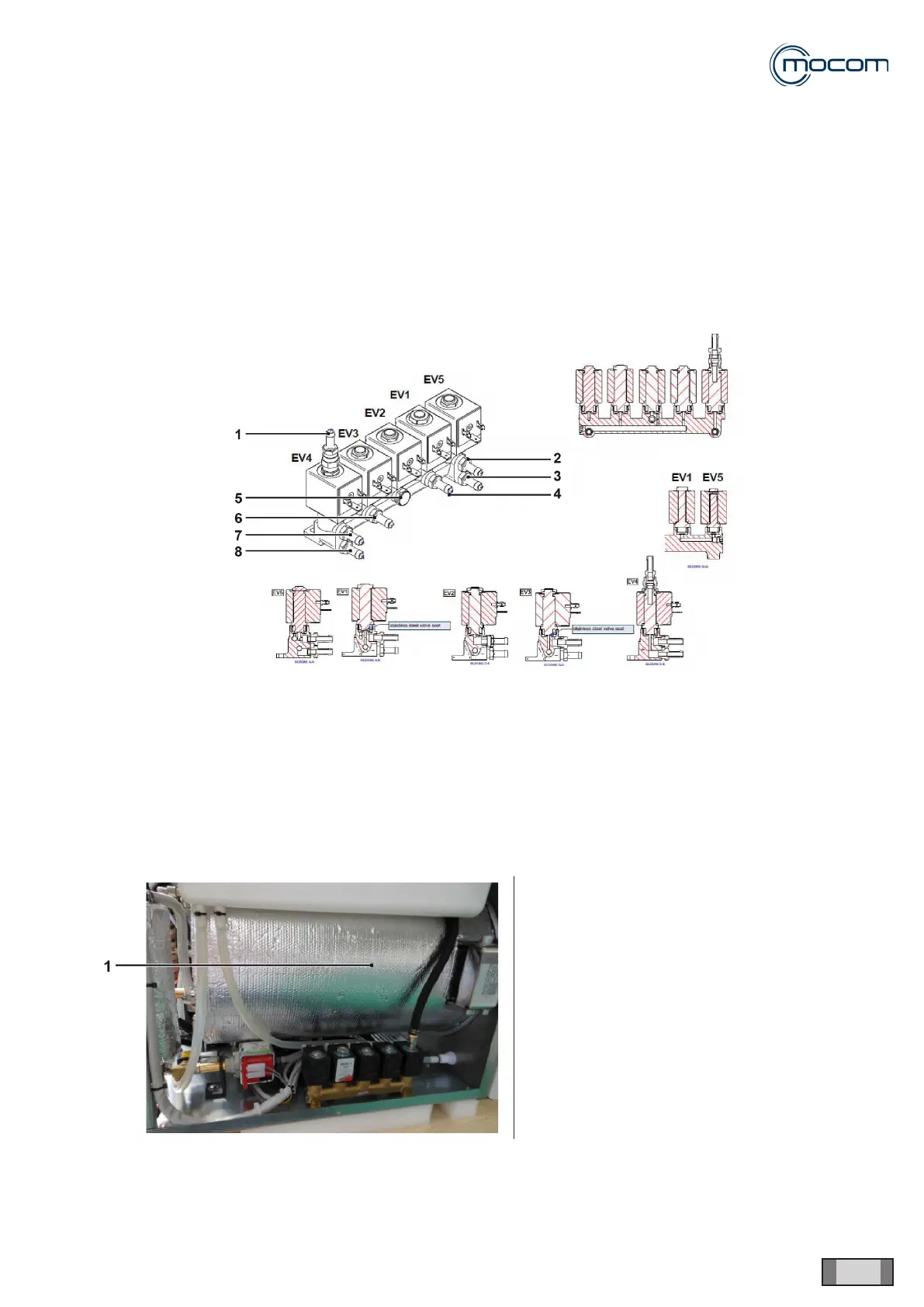

1. EV4 – discharge to used water tank.
2. EV5 – air inow from bacteriological lter.
3. EV1/EV3 – outlet to exchanger.
4. EV1 – inow of steam discharge-high output
EV1 – balancing air outlet. Chamber pressure from EV5/bacteriological lter.
5. Air inlet.
6. EV3 – inow from chamber discharge-chamber lter
7. EV4 – inow of condensed steam from heat exchanger.
8. EV4 – outow to vacuum pump.
1. Mainfold
