Secondary display shows one of a selection of values. Press the key to scroll through the
list.
Shows functions of soft keys A to E.

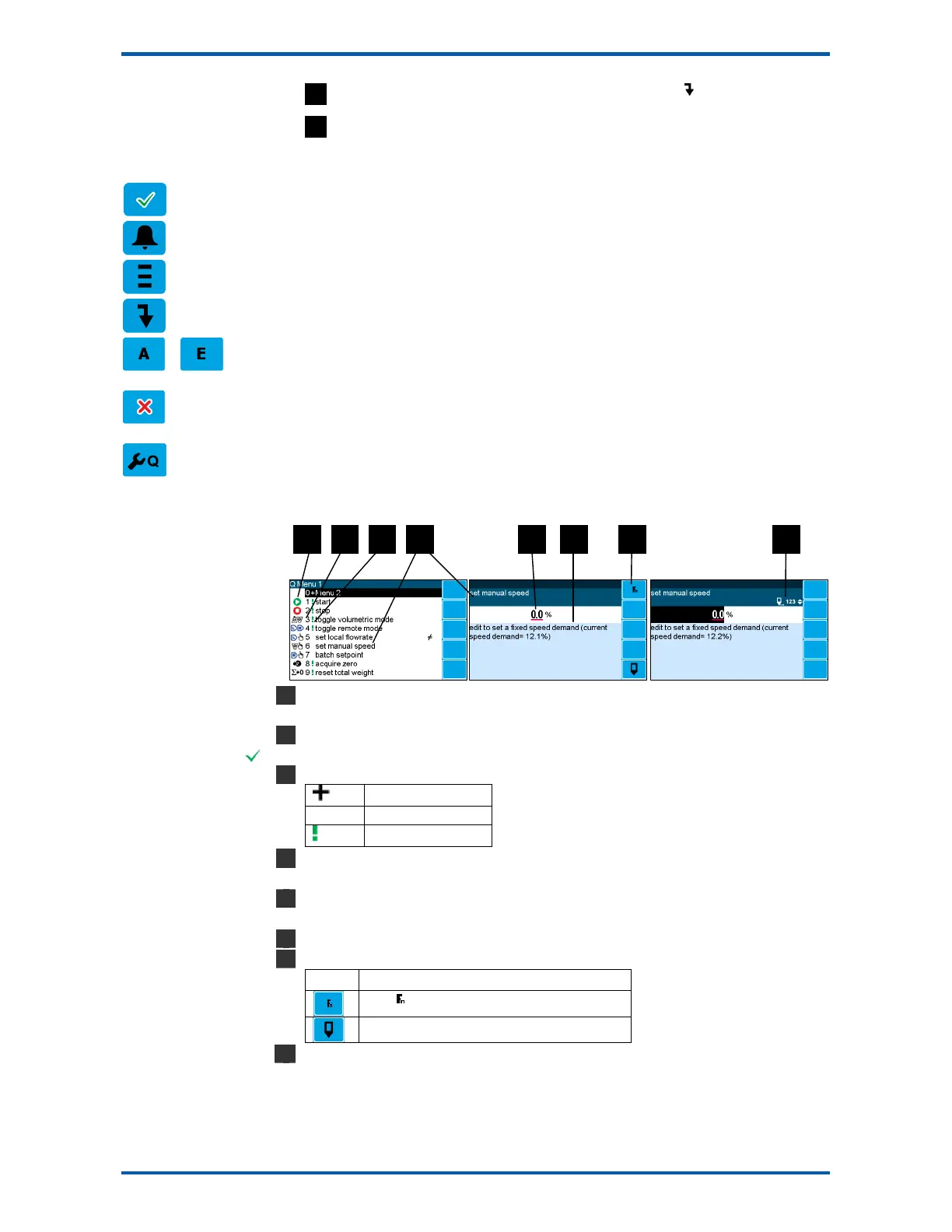

Keys
operator menu
Press the OK (tick) key to reach the operator menu. See the Operator Menu section below for details.
alarm menu
Press the ALARM key to reach the alarm menu. See the Alarm Menu section below for details
system select menu
Press this key to view and select another unit from list of units connected.
scroll display
Press this key to select the next line at the bottom of the display.
soft keys A – E
The function of the soft keys is shown in the display. These are shortcuts to items in the operator
menu.
cancel
Press this key to cancel an entry or back up a menu. When in any of the menus, holding this key down
for 2 seconds will exit back to the operator status display.
setup menu
The setup menu is used to calibrate and setup the system. Refer to the Instruction Manual.
Operator Menu
The operator menu allows selection of one of several actions or settings.
1
Soft key icon for this function. See Actions and Settings below for a description of these icons.
2
Quick key number. Press key with same number to directly enter the named
menu. Alternatively use the UP and DOWN keys to select and item and press ENTER.
3
Type of menu entry
open another menu.
(blank) setting
action
4
Name of the menu entry
5
Setting value. To change press EDIT key. If editing is locked, a password will be requested. The
password is 11.
6
Hint line which reveals extra information about the setting.
7
Soft keys used with settings.
Icon Description
Press key for menu of special functions.
Press EDIT key to edit the setting.
8
Gives information about the settings and indicates active keys or the preferred method of
making a value change while editing
