ModWeigh MW93A - IO Summary; Configurations

EMC INDUSTRIAL GROUP LTD Features
MW93A_IM_ALL_SV6.09f_en 7/59
Computer Connectivity
ModWeigh instruments can be connected to a computer withan RS232 connection. Data can be sent to
the PC at a preset rate. The data sent can be set up using macros.
There is also a command line interface which allows any of the settings and data to be read or written.

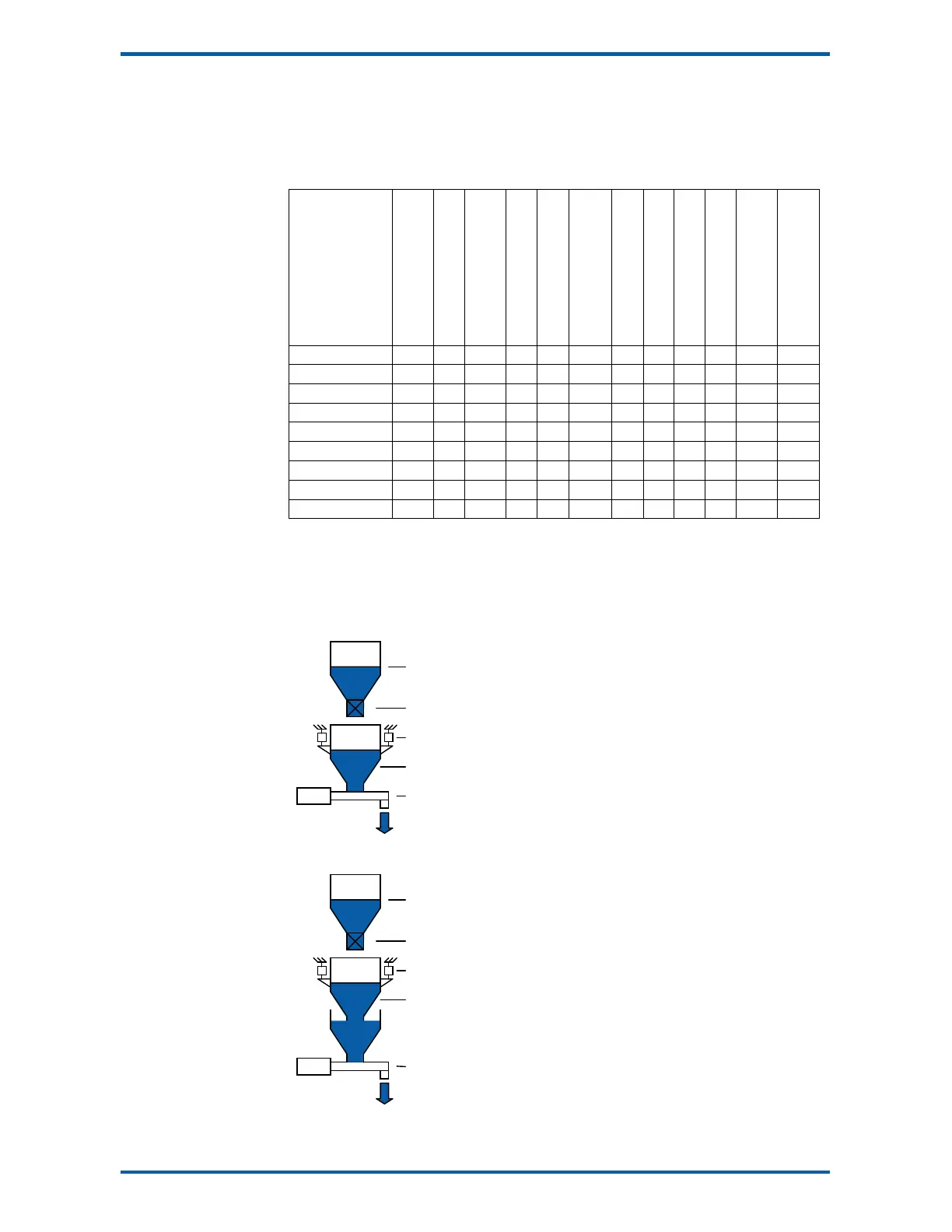

IO Summary
Digital Inputs (includes pulse input) NAMUR pulse input option Digital Outputs (includes pulse output) Isolated Pulse Output Isolated 4-20mA Inputs Isolated 4-20mA Outputs RS232 RS485 USB Host (Memory Stick) USB Device (PC Cable) Corner adjustment and bal- ancing for 4 loadcells
Trade approvals (MW95,
MW96)
MP2 1

2 1 0 1 1 1 1 1
 
MP2,MO3 1+4

2+4 1 1 1+1 1 1 1 1
 
MP1,MR1 1+8

9 1 1 2 2 1 1 1
 
MD1,MT1,MR1 2+8

1+9 1 1 2 2 2 1 1
 
MD2,MT1,MR1 2+8

1+9 1 1 2 2 2 1 1
 
MD1,MT3 2

1 0 0 1 2 1 1 1
 
MD2,MT3 2

1 0 0 1 2 1 1 1
 
MD1,MT3,MR1 2+8

8 1 1 3 2 1 1 1
 
MD2,MT3,MR1 2+8

8 1 1 3 2 1 1 1
 
Configurations
There are three principle configurations for gravimetric flow measurement and control systems. These
are Weight Loss, Modified Weight Loss and Weight Gain.
All configurations have the same basic components of a flow regulator and weigh hopper.
Weight Loss
Modified Weight Loss
BULK HOPPE
R
control valve
loadcells
WEIGH HOPPER
FLOW REGULATOR
Features
• continuous flow
• weigh hopper isolated from flow regula
tor
combined e.g. plastic extruders
BULK HOPPER
control valve
loadcells
WEIGH HOPPER
FLOW REGULATOR
Features
• continuous flow
• weigh hopper & flow regulator combined
