ModWeigh MW94A - Actions

EMC INDUSTRIAL GROUP LTD Keys
MW94A_IM_ALL_SV6.09f_en 51/53
1

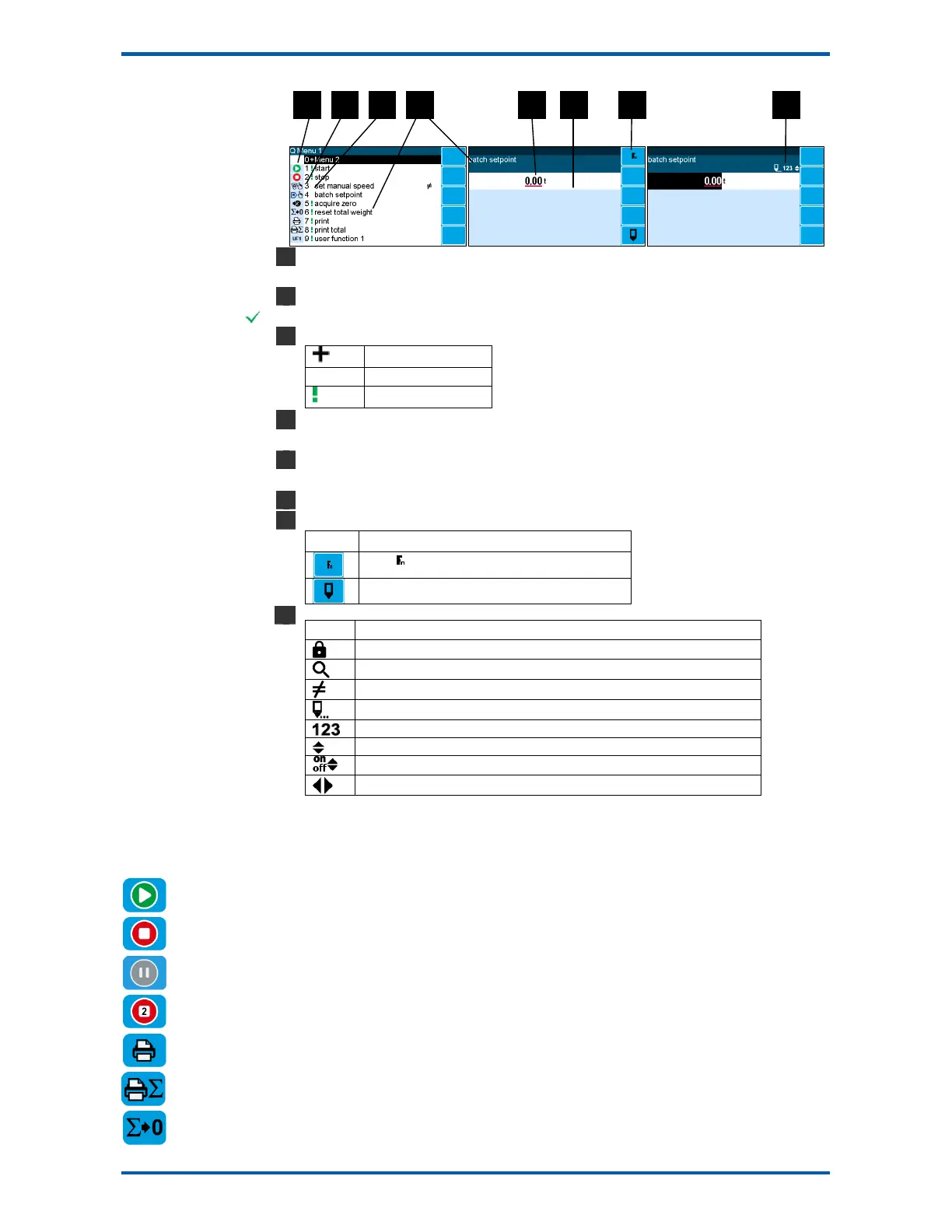

Soft key icon for this function. See Actions and Settings below for a description of these icons.
2 Quick key number. Press key with same number to directly enter the named
menu. Alternatively use the UP and DOWN keys to select and item and press ENTER.
3 Type of menu entry
open another menu.
(blank) setting
action
4
Name of the menu entry
5
Setting value. To change press EDIT key. If editing is locked, a password will be requested. The
password is 11.
6
Hint line which reveals extra information about the setting.
7
Soft keys used with settings.
Icon Description
Press key for menu of special functions.
Press EDIT key to edit the setting.
8
Gives information about the settings and indicates active keys or the preferred method of
making a value change while editing
Icon Description
The setting is locked. Password must be entered to edit.
The setting can only be viewed.
The setting has been changed from the default.
The setting is being edited.
Use numbered keys to change setting value.
Use UP & DOWN keys to scroll through selection list.
Use UP & DOWN keys to turn setting on or off.
Use the arrow keys to move through the bits of a control or status register.
Actions
start key
Press this key to start the system. If the system is running, pressing this key will pause the system.
stop key
Press this key to stop the system.
pause key
Press this key to pause or unpause the system.
stop2 key
This key may be customised for a particular application.
print
Press the PRINT key to produce a Status Report printout.
print total
Press this key to print the totalised weight.
reset total weight
Press this key to reset the totalised weight.
2 1 3 4 5 6 7 8
