ModWeigh MW94A User Manual

EMC INDUSTRIAL GROUP LTD Connections
MW94A_IM_ALL_SV6.09f_en 9/53

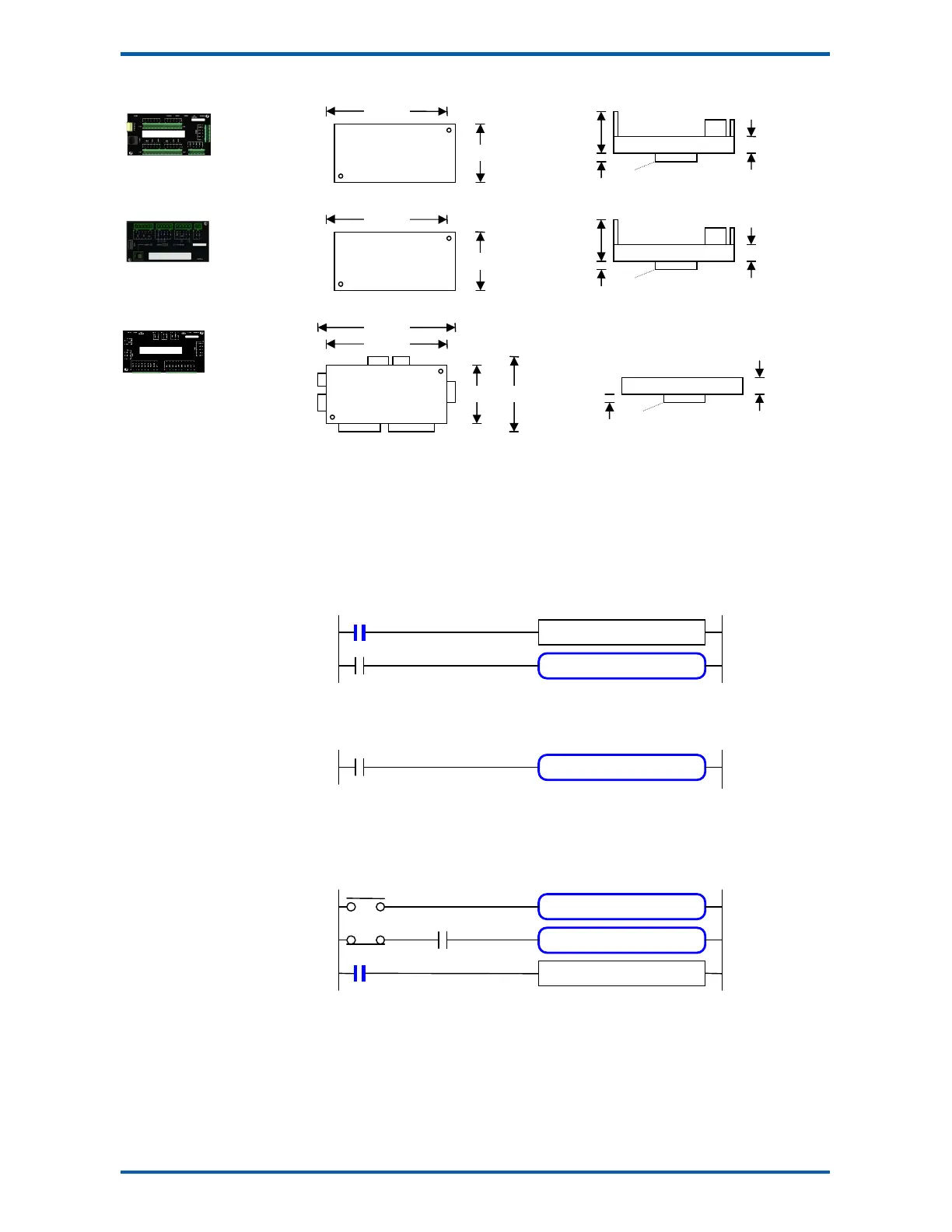

MT1 Transmitter
MT3 Transmitter
MR1 Remote IO
Connections
Motor integration
The following diagrams show various methods to connect a ModWeigh to a VSD drive or motor contac-
tor.
VSD Drive, keypad run/stop
ModWeigh keypad used to start and stop the system. Can be used for batching applications.
VSD Drive, VSD run/stop
ModWeigh slaved from VSD running signal.
• disable START key
• do not use start function
VSD drive, start/stop buttons
External START / STOP buttons connected to ModWeigh instrument driving motor VSD.
Motor Contactor, keypad run/stop
ModWeigh keypad used to start and stop system. Contactor used to run motor.
VSD run input
run motor [OUT3, 56]
+24V 0V
NOT stop [INx, -1]
VSD OK
start [INx, 27]
START
STOP
run [IN3,2]
VSD running signal
+24V 0V
VSD run input
run motor [OUT3, 56]
+24V 0V
NOT stop [INx, -1]
VSD OK
136mm
66mm
20mm
8mm
optional DIN rail mount
approx. 350g
156mm
86mm
136mm
66mm
20mm
50mm
8mm
optional DIN rail mount
approx. 35
0g
136mm
66mm
20mm
50mm
8mm
optional DIN rail mount
approx. 350g
