MONITOR
HEAT1NU
bYb
I
hMb

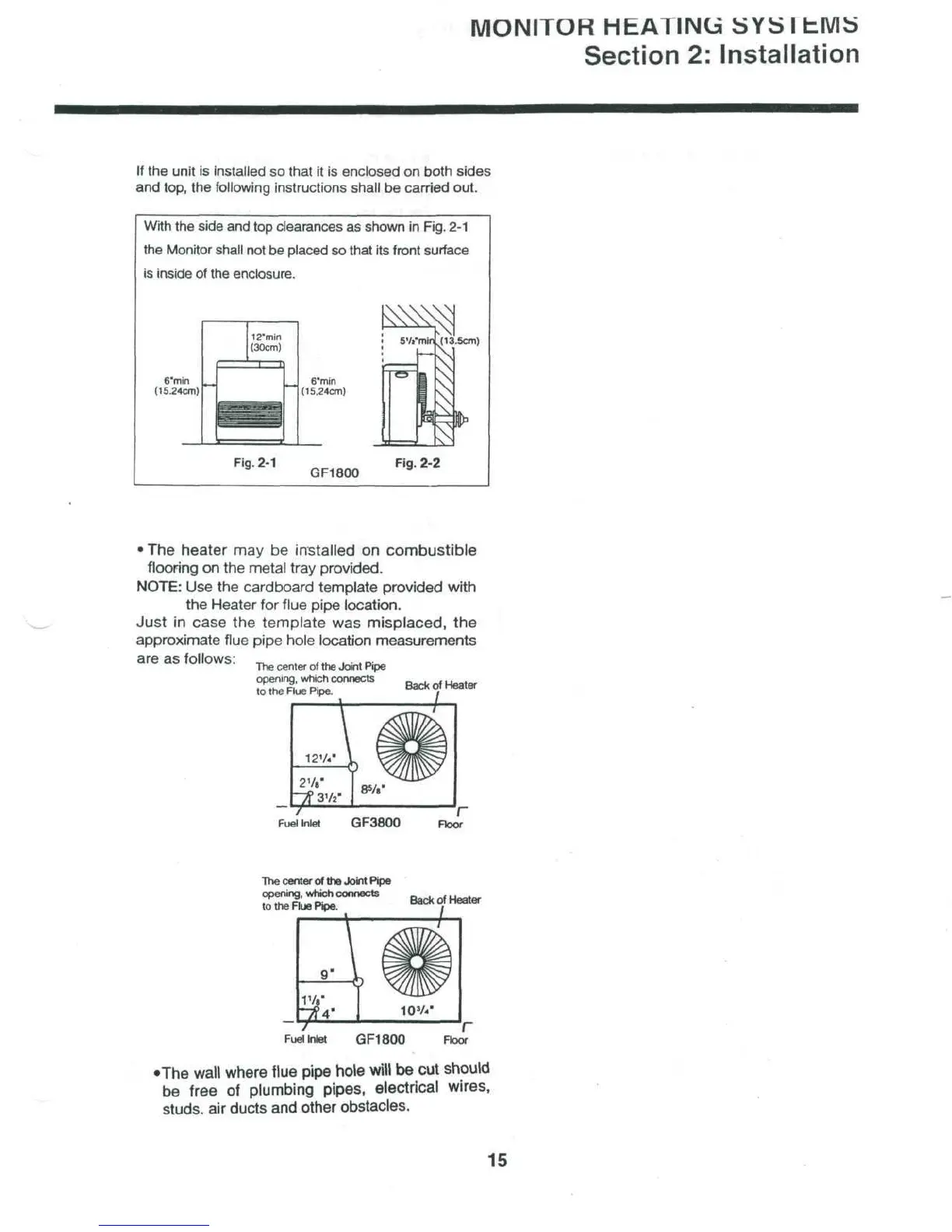

Section
2:
Installation
If
the
unit
is
installed
so
that
it is
enclosed
on
both
sides
and
top,
the
following
instructions
shall
be
carried
out.
With
the
side
and top
clearances
as
shown
in
Fig.
2-1
the
Monitor
shall
not be
placed
so
that
its
front
surface
is
inside
of the
enclosure.
6"min
(15.24cm)
(13.Scm)
Fig.2-1
GF1800
Fig.
2-2
• The
heater
may be
installed
on
combustible
flooring
on the
metal
tray
provided.
NOTE:
Use the
cardboard
template
provided with
the
Heater
for
flue
pipe location.
Just
in
case
the
template
was
misplaced,
the
approximate
flue
pipe
hole
location measurements
are
as
follows:
Back
of
Heater
opening, which connects
to
the
Flue Pipe.
The
center
of the
Joint
Rpe
opening,
which
connects
to
the Rue
Pipe.
Back
of
Heater
9"
TV,'
10V4-
Fuel
Inlet
GF1800
r
Floor
»The
wall
where
flue pipe hole
will
be cut
should
be
free
of
plumbing
pipes,
electrical
wires,
studs,
air
ducts
and
other
obstacles.
15
