MONITOR HEATING SYSTEM
Section 3: Operation
3-1 INTRODUCTION
Monitor is an easy-to-operate vented gas heater.
Routine operation features high BTU output,
automatic adjustment of room temperature, low
power consumption, and choice of automatic or
manual heater operation.
This section provides all information necessary
to operate the Monitor Heating System. All
operation procedures specified should be
performed in the order in which they are
described.
3-3 OPERATING SPECIFICATIONS (GF1800)
The following specifications apply to the operation
of the Monitor GF1800
— Rated Efficiency: 83%
— Power Consumption; as follows
High Burn 65 watts, Low Burn 65 watts
— Circulation Fan Output: 176 cubic feet/min
— Potential Heating Area: 800 sq. feet
The potential heating areas are calculated with 8
foot ceiling and a minimum of R-11 insulation in the
exterior walls.
3-2 OPERATING SPECIFICATIONS (GF3800)
The following specifications apply to the opera-
tion of the Monitor GF3800
- Rated Efficiency: 83%
— Power Consumption: as follows
High Burn 80 watts, Low Burn 70 watts
-Circulation Fan Output: 388 cubic feet/min
— Potential Heating Area: 1,500 sq. feet

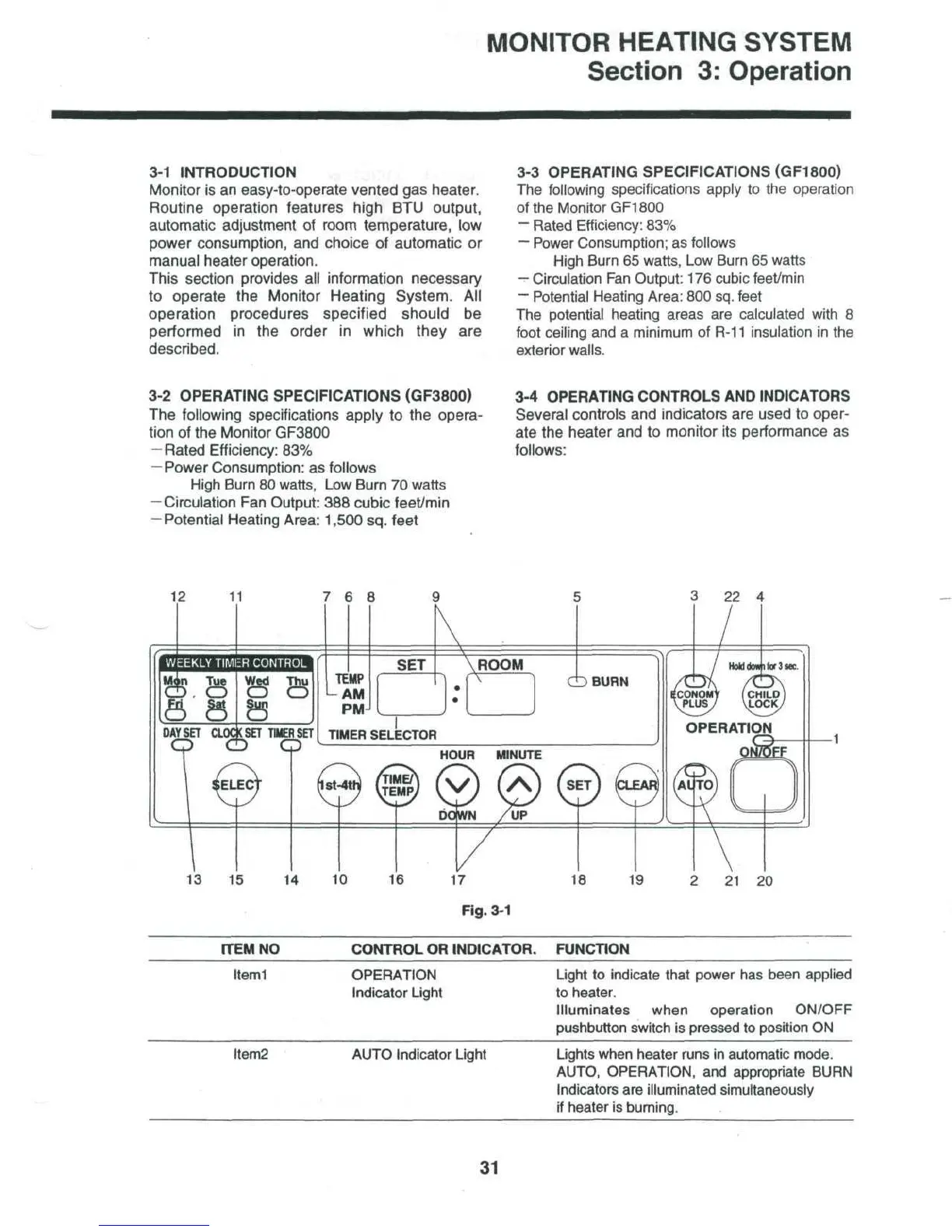

3-4 OPERATING CONTROLS AND INDICATORS
Several controls and indicators are used to oper-
ate the heater and to monitor its performance as
follows:
12 11
768
3 22 4
ECONOMY | CHILD
\>Lusy VLOCK
13 15 14
10 16
17 18 19
21 20
Fig. 3-1
ITEM NO CONTROL OR INDICATOR. FUNCTION
Iteml OPERATION
Indicator Light
Light to indicate that power has been applied
to heater.
Illuminates when operation ON/OFF
pushbutton switch is pressed to position ON
Item2
AUTO Indicator Light
Lights when heater runs in automatic mode.
AUTO, OPERATION, and appropriate BURN
Indicators are illuminated simultaneously
if heater is burning.
31
