MONITOR HEATING SYSTEMS
Section
2:
Installation
IGFisool
Extension
installation without
the
extension pipes through
the
back guard knockout
holes.
Longitudinal
Transversal
to the
right Transversal
to the
left
The
knob direction
of the
fuel
valve,
if
installed
should
be
adjusted
not to
touch
the
back guard.

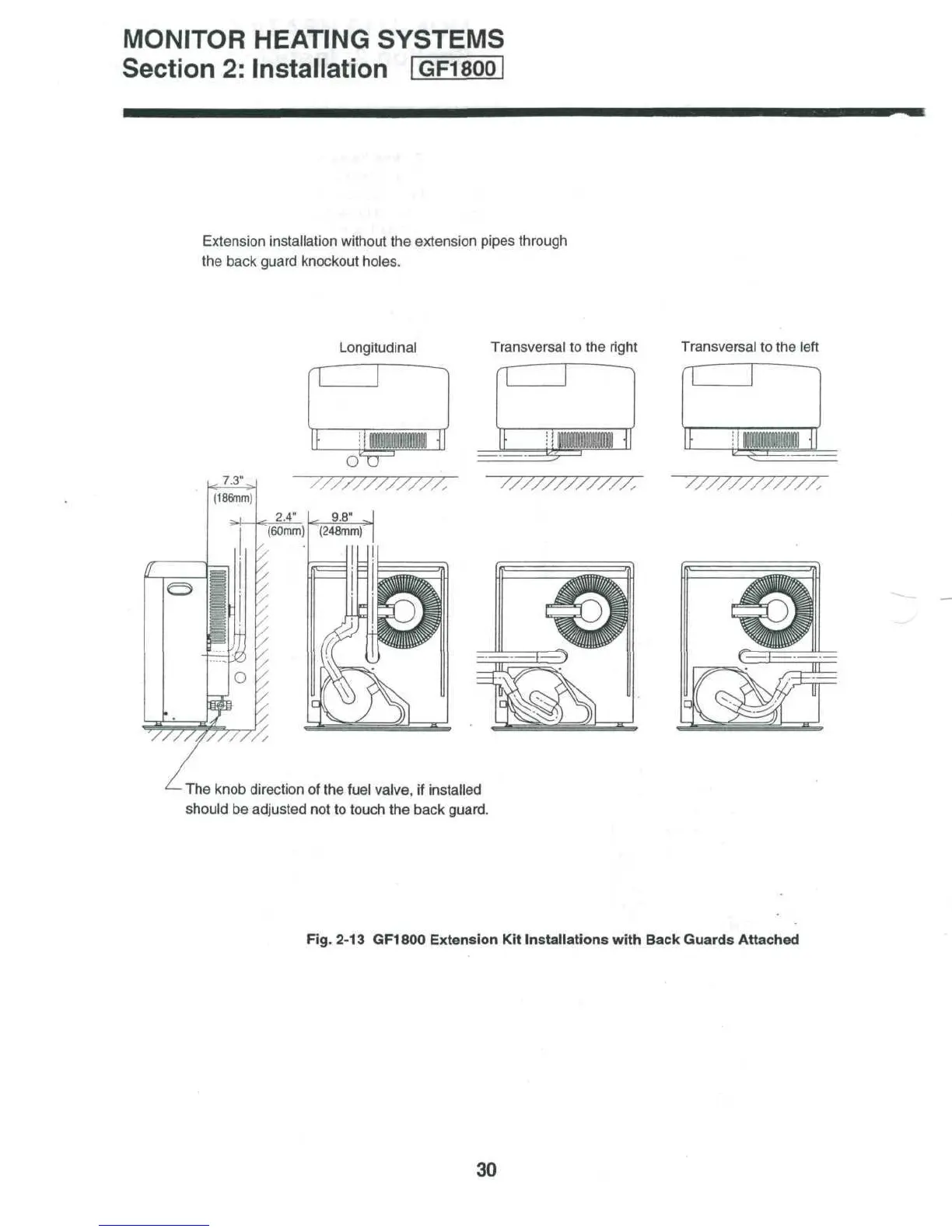

Fig.
2-13
GF1800
Extension
Kit
Installations with Back Guards Attached
30
