MONITOR HEATING SYSTEMS
Section 2: Installation

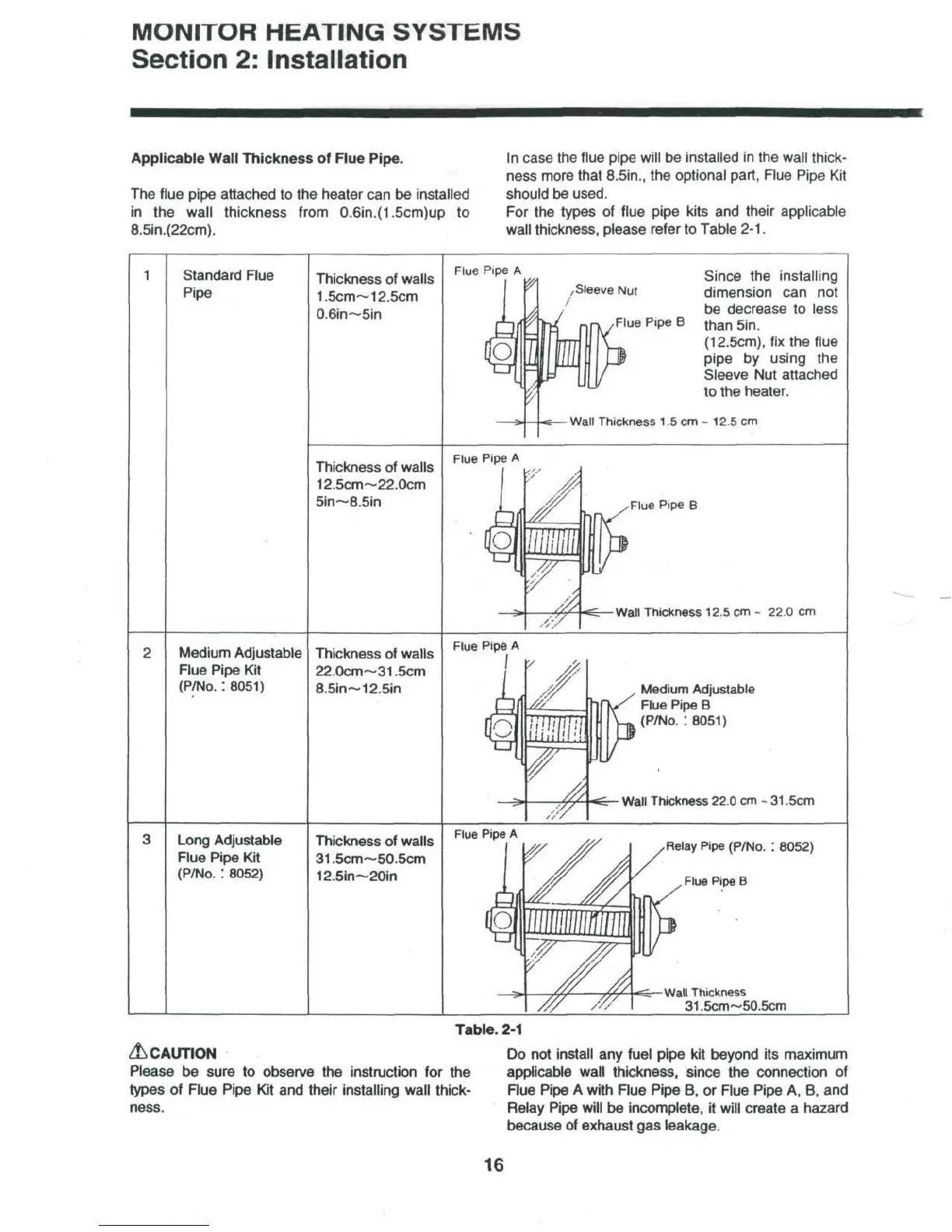

Applicable Wall Thickness of Flue Pipe.
The flue pipe attached to the heater can be installed
in the wall thickness from 0.6in.(1.5cm)up to
8.5in.(22cm).
In case the flue pipe will be installed in the wall thick-
ness more that 8.5in., the optional part, Flue Pipe Kit
should be used.
For the types of flue pipe kits and their applicable
wall thickness, please refer to Table 2-1.
Standard Flue
Pipe
Medium Adjustable
Flue Pipe Kit
(P/No. : 8051)
Thickness of walls
1.5cm~1 2.5cm
0.6in~5in
Thickness of walls
12.5cm~22.0cm
5in~8.5in
Thickness of walls
22.0cm~31 .5cm
8.5in~12.5in
Flue Pipe A
/Sleeve Nut
r> /Flue Pipe B
Since the installing
dimension can not
be decrease to less
tnan 5in
.
(12.5cm), fix the flue
pipe by using the
Sleeve Nut attached
to the heater.
Wall Thickness 1.5 cm - 12.5 cm
Flue Pipe A
Flue Pipe B
Wall Thickness 12.5 cm - 22.0 cm
Flue Pipe A
Medium Adjustable
Flue Pipe B
(P/No. : 8051)
Sr- Wall Thickness 22.0 cm - 31.5cm
Long Adjustable
Flue Pipe Kit
(P/No. : 8052)
Thickness of walls
31 .5cm~50.5cm
12.5in~20in
Flue Pipe A
Relay Pipe (P/No. : 8052)
Wall Thickness
31.5cm~50.5cm
Table. 2-1
A CAUTION
Please be sure to observe the instruction for the
types of Flue Pipe Kit and their installing wall thick-
ness.
Do not install any fuel pipe kit beyond its maximum
applicable wall thickness, since the connection of
Flue Pipe A with Flue Pipe B, or Flue Pipe A, B, and
Relay Pipe will be incomplete, it will create a hazard
because of exhaust gas leakage.
16
