Monitor GF1800 - Max Lengths and Bends Allowable Using Extension Kits

MONITOR HEATING SYSTEMS
Section 2: Installation
Max lengths and bends allowable using
extension kits.
Extension kits are available in four different
lengths. For exact dimensions refer to the
accessories catalog.
Exhaust portion of extension kit needs 1"
minimum clearance to combustibles.
-90° Bend
Ft.Max
3-90° Bends
10 Ft.Max

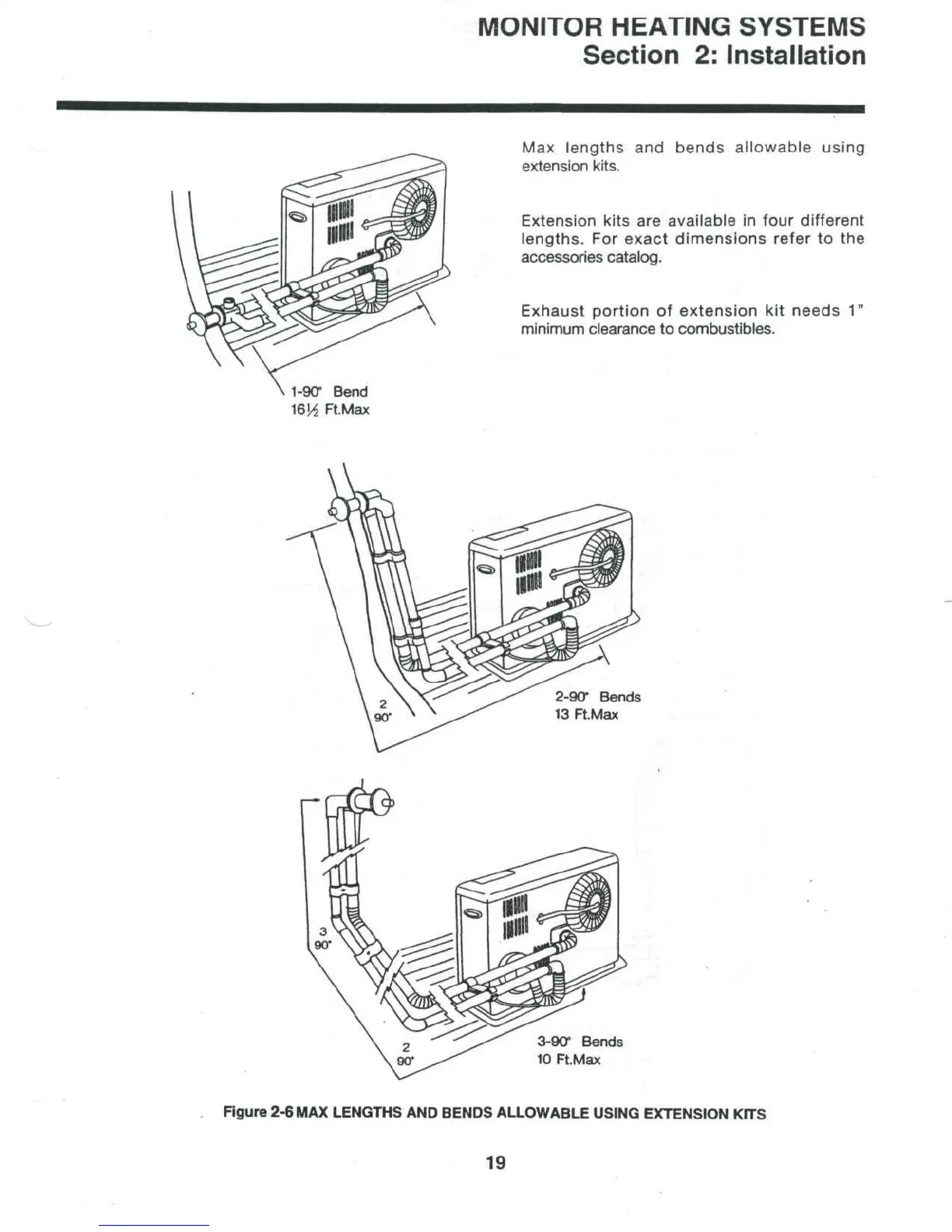

Figure 2-6 MAX LENGTHS AND BENDS ALLOWABLE USING EXTENSION KITS
