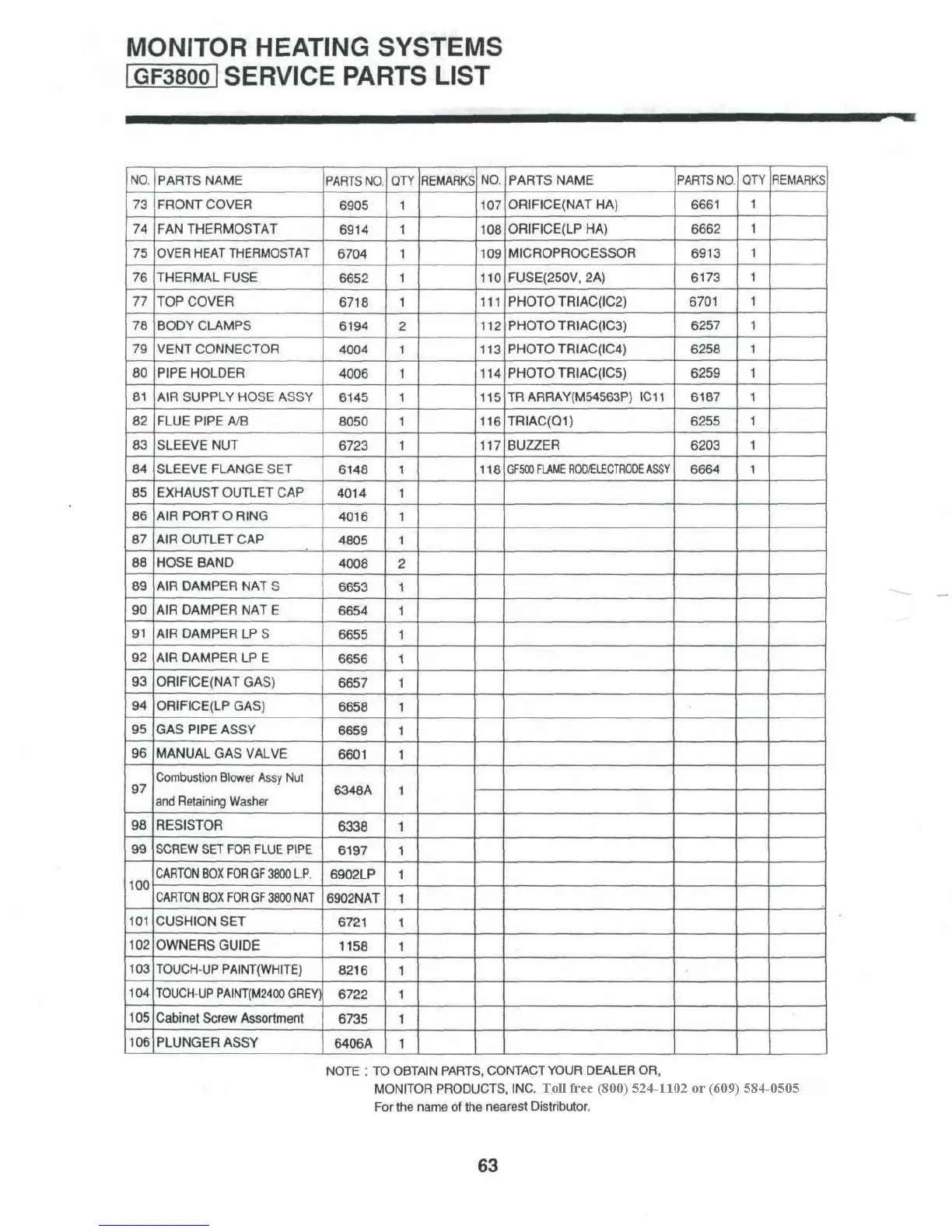

MONITOR HEATING SYSTEMS
IGF38001 SERVICE PARTS LIST
NO.
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
PARTS NAME
FRONT COVER
FAN THERMOSTAT
OVER HEAT THERMOSTAT
THERMAL FUSE
TOP COVER
BODY CLAMPS
VENT CONNECTOR
PIPE HOLDER
AIR SUPPLY HOSE ASSY
FLUE PIPE A/B
SLEEVE NUT
SLEEVE FLANGE SET
EXHAUST OUTLET CAP
AIR PORTO RING
AIR OUTLET CAP
HOSE BAND
AIR DAMPER NAT S
AIR DAMPER NAT E
AIR DAMPER LP S
AIR DAMPER LP E
ORIFICE(NAT GAS)
ORIFICE(LP GAS)
GAS PIPE ASSY
MANUAL GAS VALVE
Combustion Blower Assy Nut
and Retaining Washer
RESISTOR
SCREW SET FOR FLUE PIPE
CARTON BOX FOR GF 3800 L.P.
CARTON BOX FOR GF 3800 NAT
CUSHION SET
OWNERS GUIDE
TOUCH-UP PAINT(WHITE)
TOUCH-UP PAINT(M2400 GREY)
Cabinet Screw Assortment
PLUNGER ASSY
PARTS NO.
6905
6914
6704
6652
6718
6194
4004
4006
6145
8050
6723
6148
4014
4016
4805
4008
6653
6654
6655
6656
6657
6658
6659
6601
6348A
6338
6197
6902LP
6902NAT
6721
1158
8216
6722
6735
6406A
QTY
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
REMARKS
NO.
107
108
109
110
111
112
113
114
115
116
117
118
PARTS NAME
ORIFICE(NAT HA)
ORIFICE(LP HA)
MICROPROCESSOR
FUSE(250V, 2A)
PHOTO TRIAC(IC2)
PHOTO TRIAC(ICS)
PHOTO TRIAC(IC4)
PHOTO TRIAC(ICS)
TR ARRAY(M54563P) 1C 11
TRIAC(Q1)
BUZZER
GF500 FLAME ROO£LECTRODE ASSY
PARTS NO.
6661
6662
6913
6173
6701
6257
6258
6259
6187
6255
6203
6664
QTY
1
1
1
1
1
1
1
1
1
1
1
1
REMARKS
NOTE : TO OBTAIN PARTS, CONTACT YOUR DEALER OR,
MONITOR PRODUCTS, INC. P.O. BOX 3408, PRINCETON, NEW JERSEY 08543
