SECTION SIX – COMMANDS
DS2000 USER’S MANUAL (rev.C)
6.13
6.6 DISPLAY VARIABLES MENU

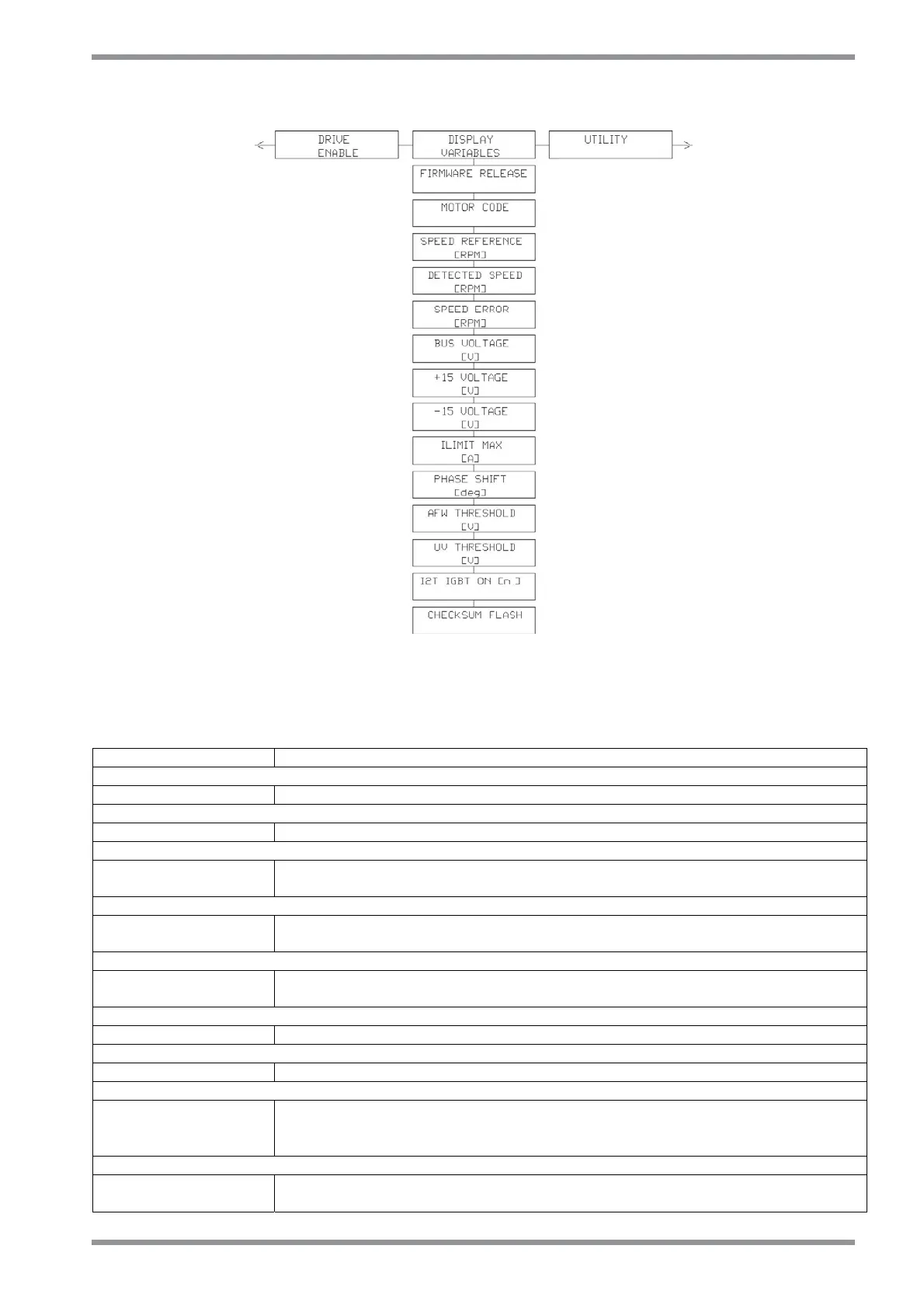

Fig. 6.6 – Display variables menu
6.6.1 DRIVE ENABLE MENU DESCRIPTION
FIRMWARE RELEASE
Description: it indicates the installed firmware version
MOTOR CODE
Description: Numeric code to identify motor type using Windrive GUI
SPEED REFERENCE
Description: it indicates the input speed reference value
DETECTED SPEED
Description: it indicates the motor detected speed
Attention: the function is active even when the axis is disabled
SPEED ERROR
Description: it indicates the speed error between the speed reference and the
detected speed
BUS VOLTAGE
Description: it indicates the DC BUS voltage detected by the drive; this value is
used for the soft start and recovery circuit management
+15 VOLTAGE
Description: it indicates the +15 V voltage detected by the drive
-15 VOLTAGE
Description: it indicates the -15 V voltage detected by the drive
ILIMIT MAX
Description: it indicates the current limitation value set in the drive:
In digital limit mode the max current is indicate
In analog limit mode the analog limit is indicate
PHASE SHIFT
Description: it indicates the effective phase shift according to the motor load and
velocity
