SECTION SIX – COMMANDS
DS2000 USER’S MANUAL (rev.C)
6.18
6.7.1.6 UTILITY MENU - SAVE PROGRAM
CAUTION: Please contact Service Center before using this feature.
6.7.1.7 UTILITY MENU - ENC/OUT CALIBRATION
This feature (available only with resolver feedback) gives the opportunity to “move” the
“electrical” zero marker of the simulated encoder output (J2C connector).
Changing this variable, it is possible to fit the “electrical” zero (marker) with the machine
homing position, if required by the Customer application. Parameter Range is 0-4096, in 1
unit step, and it is related to 1 electrical resolver revolution (360° electrical).
Can be executed only with axis disabled.
After calibration, save the acquired value.
NOTE: It is possible to disable this functionality and modify manually the offset values
through a Moog VARIABLES menu parameter.
6.7.1.8 UTILITY MENU - MOOG VARIABLES
CAUTION: Please contact Service Center before using this feature.
6.8 KEYBOARD LOCK MENU

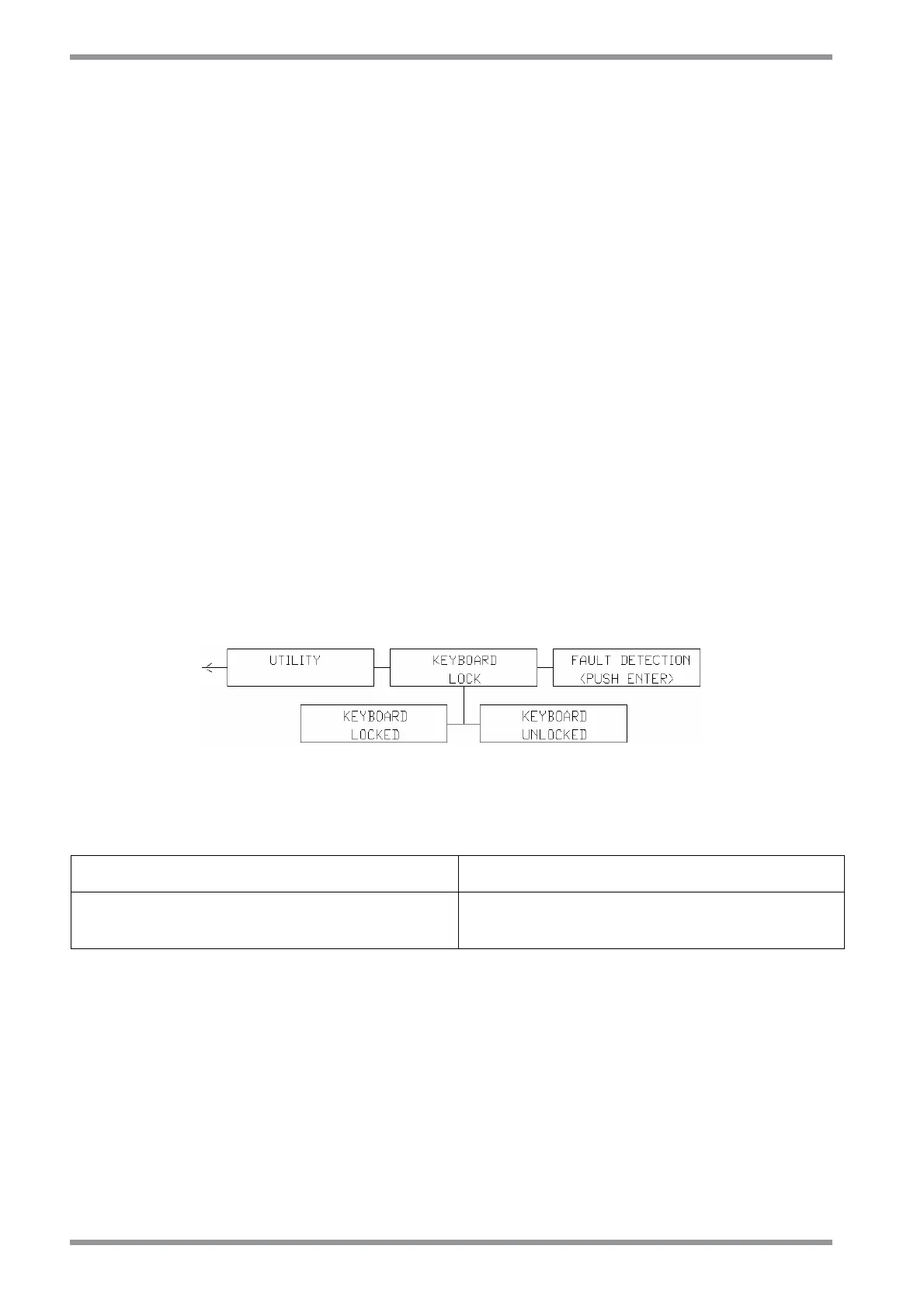

Fig. 6.8 – Keyboard lock menu
6.8.1 KEYBOARD LOCK MENU DESCRIPTION
KEYBOARD LOCK
Description: it allows to unlock the keyboard and
change the drive parameters
Allowed values:
• LOCKED
• UNLOCKED
Note:
To Next Page
