Moog DS2000 User Manual

SECTION TWO – WIRING AND INSTALLATION
DS2000 USER’S MANUAL (rev.C)
2.31

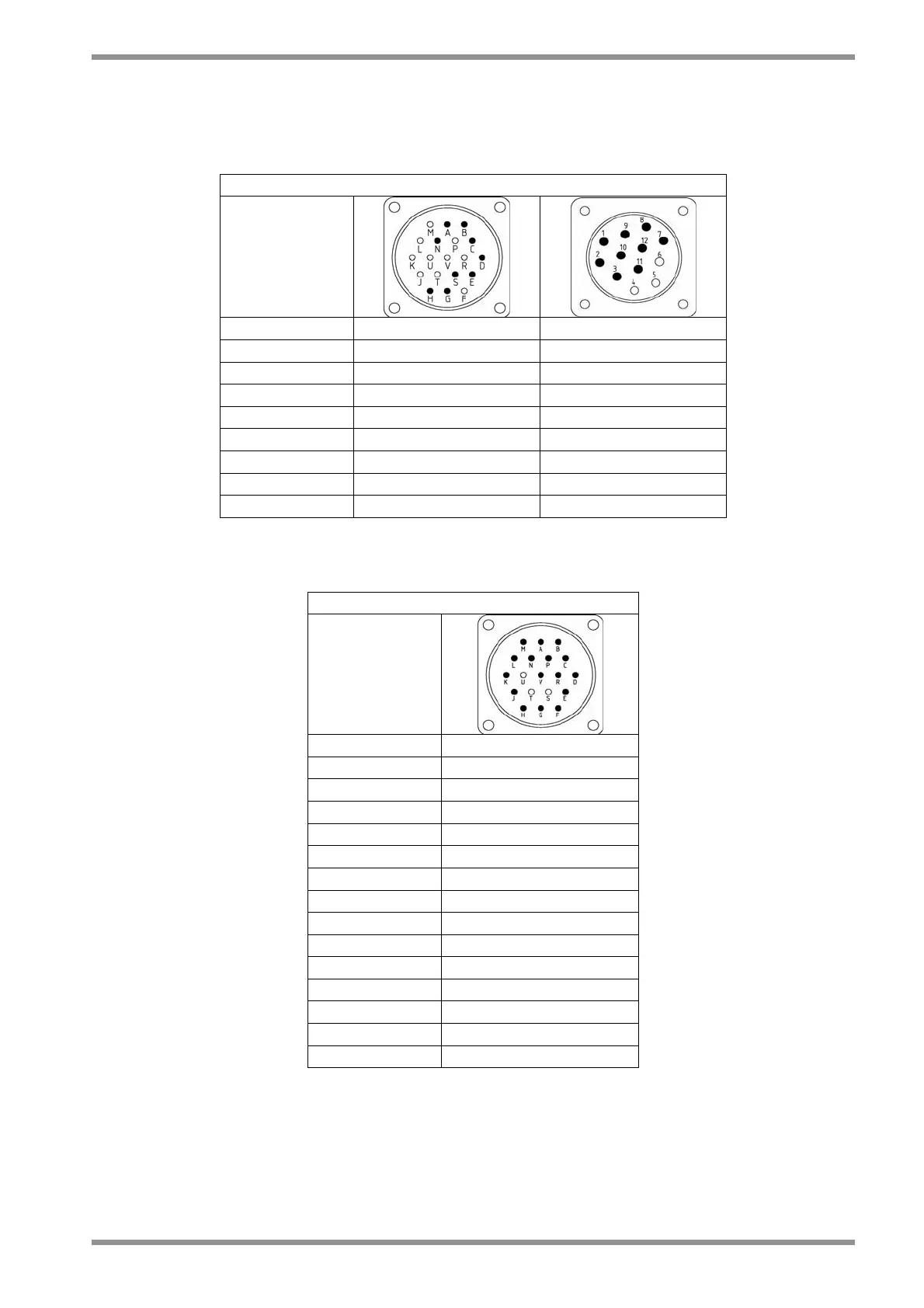

2.11.3 MOTOR CONNECTION
2.11.3.1 FAS T/FAS K/FAS N/FAS Y/FAE CONNECTION
MOTOR RESOLVER CONNECTOR
SIGNAL
TYPE
COS- E 2
COS+ C 1
SHIELD S 3
SEN- H 12
SEN+ G 11
PTC_MOTOR N 8
10kHz- B 7
PTC_MOTOR A 9
10kHz+ D 10
Tab. 2.22 – Resolver connectors
MOTOR ENCODER CONNECTOR
SIGNAL
TYPE
+5V A
0V B and V
W- C
W+ D
V+ E
V- F
A+ G
A- H
C+ J
C- K
U+ L
U- M
B- N
B+ P
PTC_MOTOR R
Tab. 2.23 – Encoder connector
