SECTION THREE – ELECTROMAGNETIC COMPATIBILITY (EMC)
DS2000 USER’S MANUAL (rev.C)
3.6

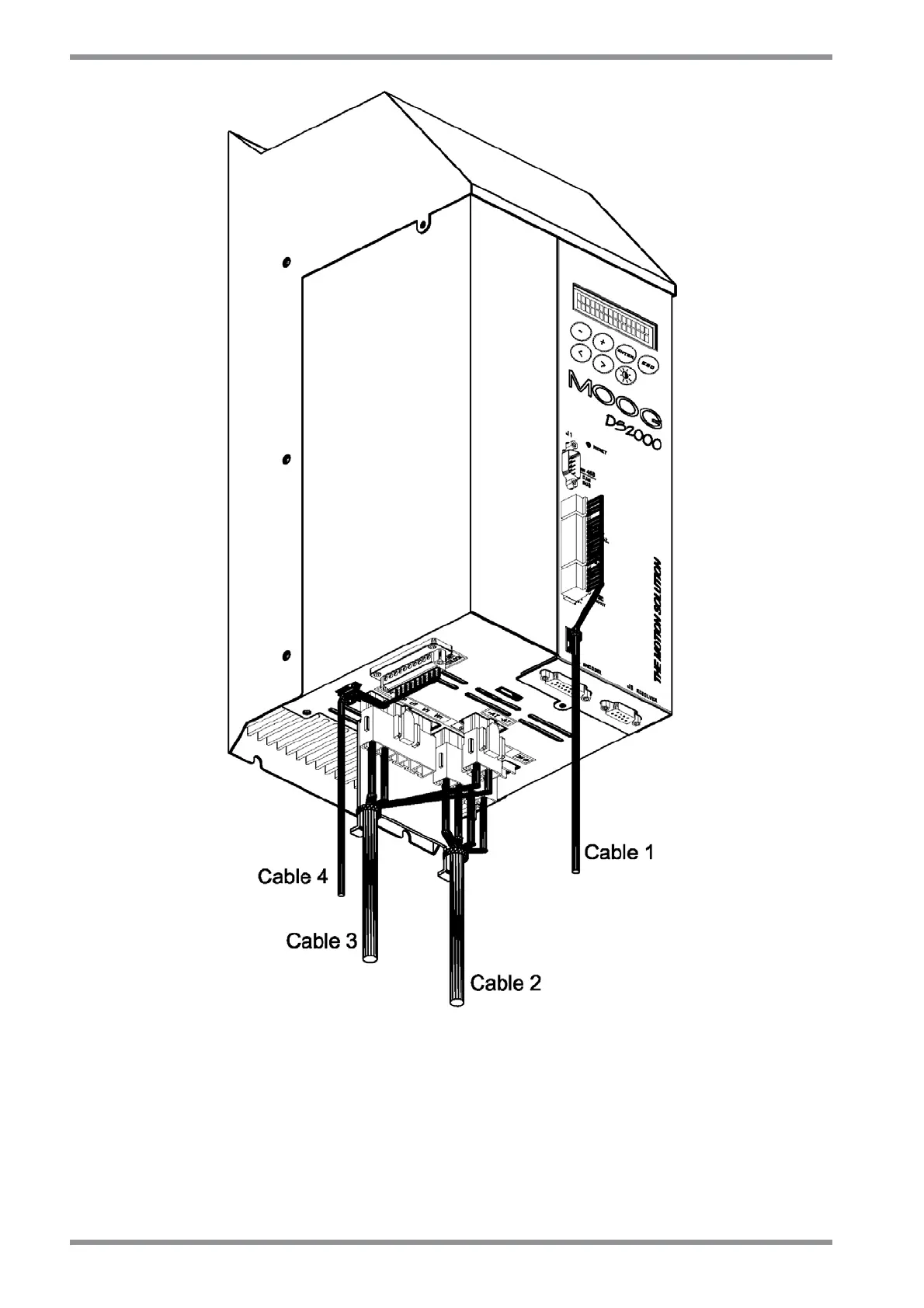

Fig. 3.4 – C size connections drive side
Cable 1 = J2A, J2B, J2C
Cable 2 = Motor power
Cable 3 = Recovery resistor and +/-AT
Cable 4 = Safety - Restart Interlock (optional)
NOTE:Unshielded (three-phase power supply) and Sub-D cables are not shown in the figure.
