SECTION SIX – COMMANDS
DS2000 USER’S MANUAL (rev.C)
6.1
6. COMMANDS
6.1 INTRODUCTION
The six keys on the drive front panel allow the visualization of the whole menu as well as the
relevant drive configuration. A further key allows the display contrast adjustment.
The keys can be divided according to their function:
• ENTER. This key allows to enter a menu and browse it. The variables scanning inside a
menu is recursive. In some cases, this key activates a routine function (i.e. inside the
“Utility” menu).
• < >. These keys allow the menu horizontal scrolling from right to left and vice versa.
• + -. These keys allow to increase and decrease a variable. Holding the key down approx.
5 s the fast forward starts.
• ESC. This key allows to go back inside the menu or terminate a function.
• ☼. Holding down the yellow key, it is possible to adjust the display contrast by means of
the + / - keys. In order to keep the setting, it is necessary to save the parameters before
switching off the drive.

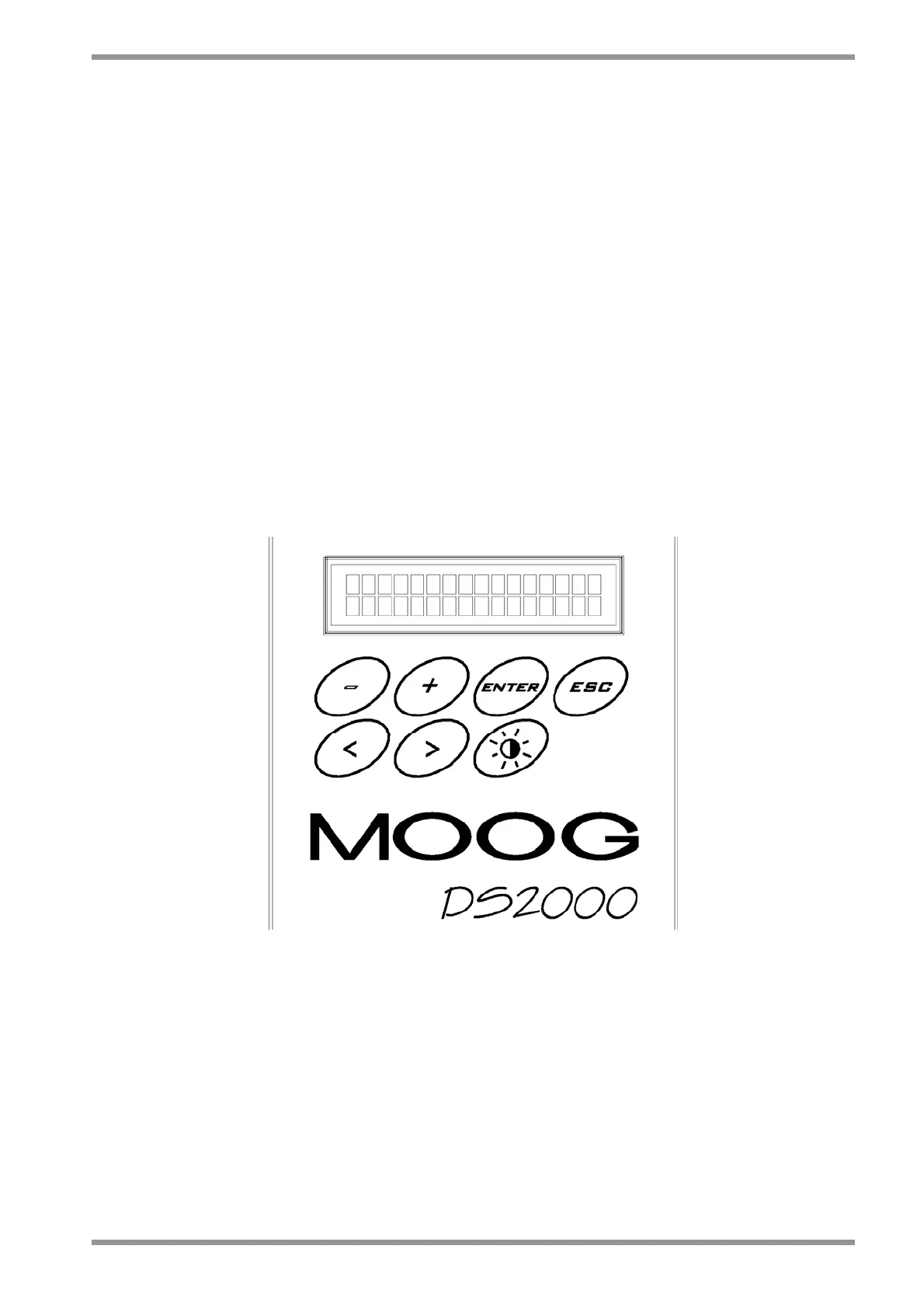

Fig. 6.1 – DS2000 front panel
NOTES:
• First screen at drive start-up show you the DS2000 size. The DRIVE ENABLE and
REFERENCE ENABLE signals are shown in the start-up screen on the display by two
stylized letters: “D” and “R” respectively.
• The first menu level can be accessed pressing ENTER. The first level is characterized by
the two <> arrows which indicate the possibility of scrolling the menu from right to left. To
access the menu, press ENTER. To go to the following parameter, press ENTER or < and
> keys. The parameter scanning is recursive.
• To exit the menu, press ESC. Keep on pressing if the displayed parameter is not the first
item of the menu.
