Moog Matriarch User Manual

35

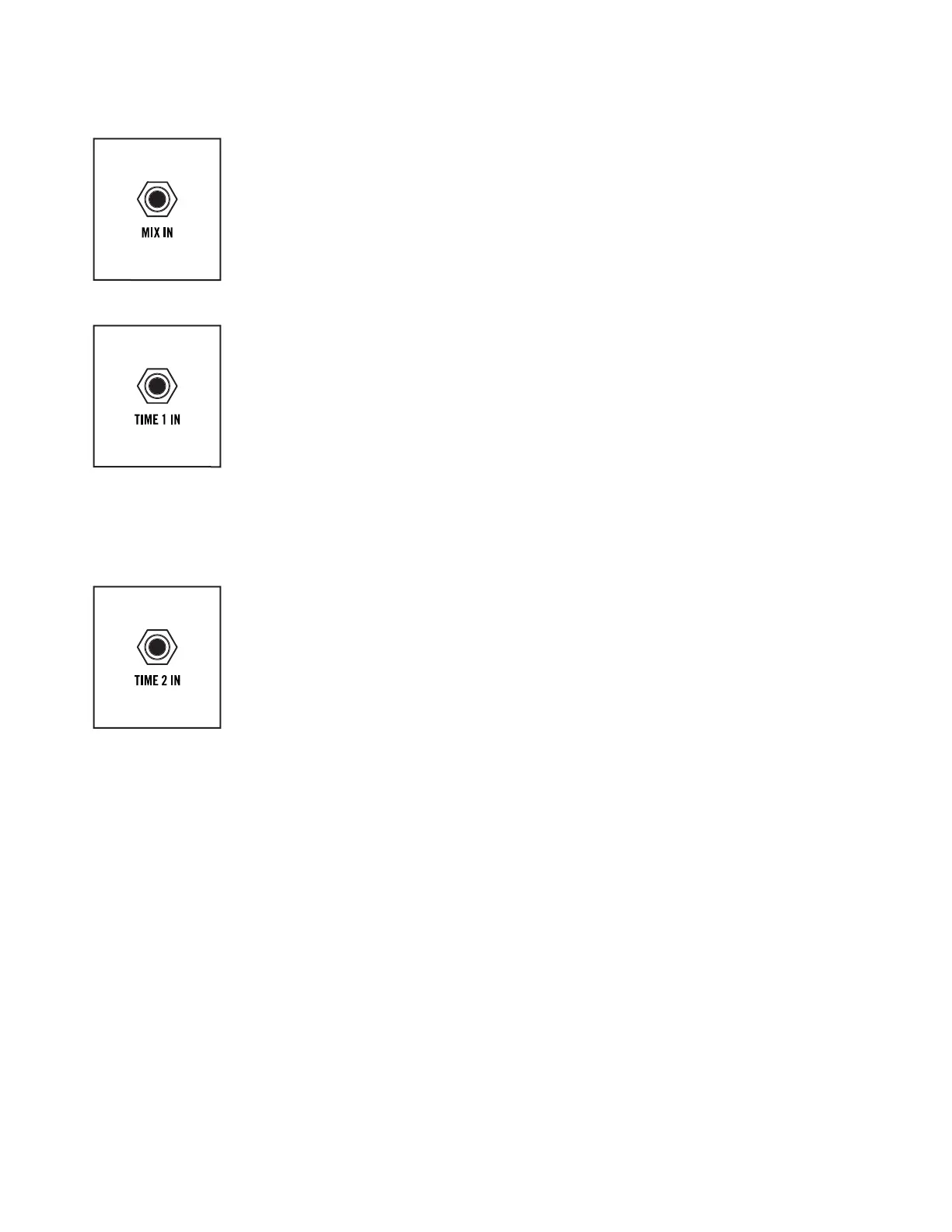

MIX IN
The value of a Control signal connected to this input will be summed with the
current position of the MIX knob to determine the balance between the dry
(unprocessed) audio signal, and the wet (processed) audio signal.
CV INPUT: -5V to +5V
TIME 1 IN
A Control signal connected to this input will modulate the delay time of
Delay 1, separate from the timing of Delay 2.
CV INPUT: -5V to +5V
NOTE: With DELAY CV SYNC BEND on, and Tap Tempo or Sync activated in the Delay
module, a voltage applied to the TIME 1 IN and TIME 2 IN jacks will “bend” the Delay
Time relative to the nominal sync’d tempo. This allows for smooth time modulation while
sync’d, which creates some very interesting eects. With DELAY CV SYNC BEND o,
and Tap Tempo or Sync engaged in the Stereo Delay Module, a control voltage applied
to this input will cycle through clock divisions of the current tempo.
TIME 2 IN
A Control signal connected to this input will modulate the delay time of Delay 2.
CV INPUT: -5V to +5V
NOTE: With DELAY CV SYNC BEND on, and Tap Tempo or Sync activated in the Delay
module, a voltage applied to the TIME 1 IN and TIME 2 IN jacks will “bend” the Delay
Time relative to the nominal sync’d tempo. This allows for smooth time modulation
while sync’d, which creates some very interesting eects. With DELAY CV SYNC BEND
o, and Tap Tempo or Sync engaged in the Stereo Delay Module, a control voltage
applied to this input will cycle through clock divisions of the current tempo.
STEREO DELAY (Continued)

Moog Matriarch Specifications

General

Product type	Analog synthesizer
Sound effects	Delay
Sound effects quantity	1
Keyboard number of keys	49
Maximum polyphony (notes)	4
MIDI in	Yes
6.35 mm (1⁄4-inch) input	3
6.35 mm (1⁄4-inch) output	2
Input voltage	240 V
DC input voltage	12 V
Power source type	DC
AC input frequency	50 - 60 Hz

Weight and Dimensions

Depth	361 mm
Width	810 mm
Height	139 mm
Weight	13610 g
