Moog Matriarch - Direction and Octave;Bank

47

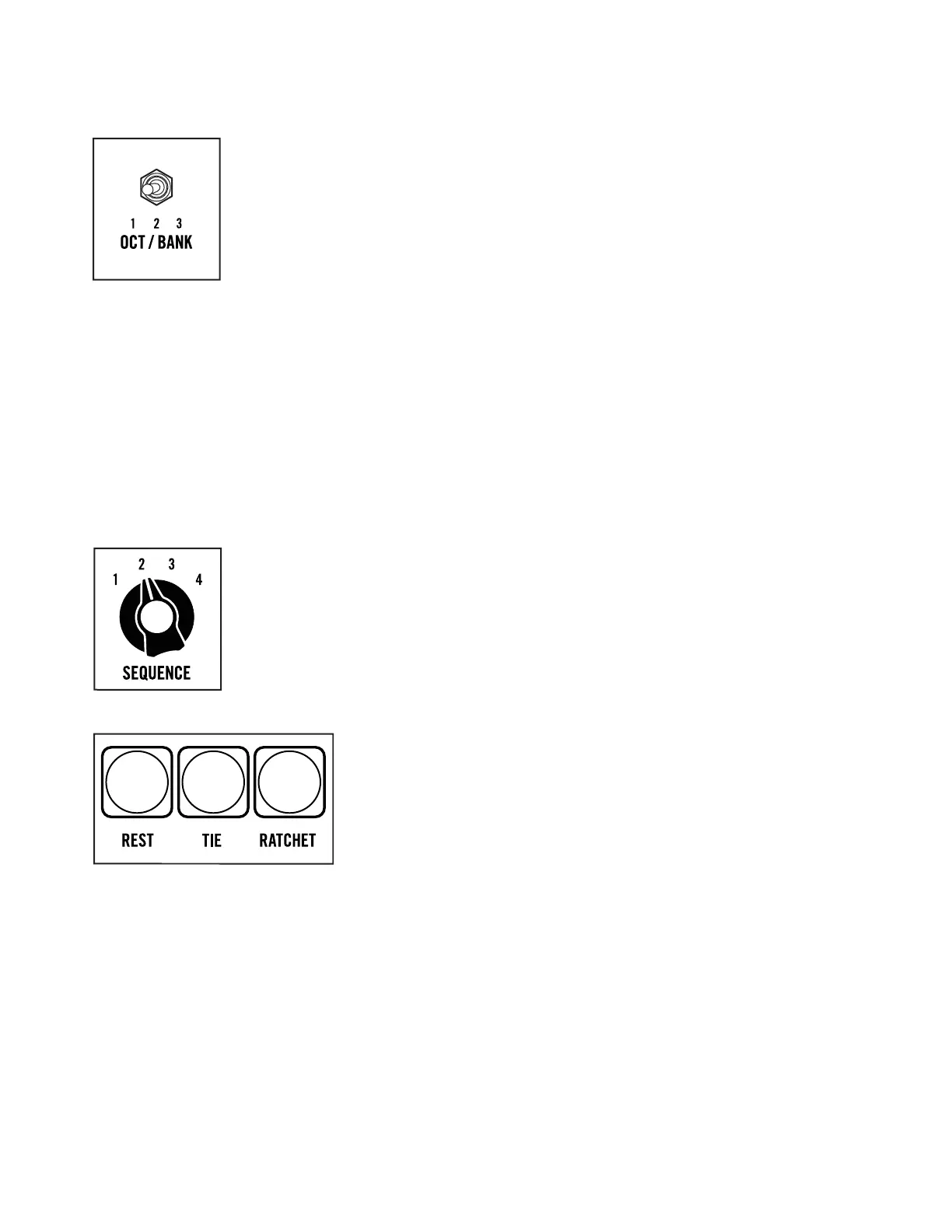

OCT / BANK (Continued)
1
ARPEGGIATOR Mode (1 Octave)
Only the original notes played will be arpeggiated.
SEQUENCER Mode (BANK 1)
BANK 1 is chosen as the sequence source.
2
ARPEGGIATOR Mode (2 Octave)
The arpeggiated pattern is played, and then repeated one octave higher
than the original.
SEQUENCER Mode (Bank 2)
BANK 2 is chosen as the sequence source.
3
ARPEGGIATOR Mode (3 Octaves)
The arpeggiated pattern is played, then repeated one octave higher than
the original, and then two octaves higher than the original.
SEQUENCER Mode (Bank 3)
BANK 3 is chosen as the sequence source.
SEQUENCE
Matriarch provides a total of 12 sequence locations across three user-selectable
Banks. This four-position SEQUENCE knob is used to select one of the four
available sequences within the currently selected Bank as the active sequence.
REST, TIE, RATCHET
When the MODE switch is set to the REC position, data may be
entered into the currently selected sequence. Each sequence
step can contain up to four notes played on the keyboard, a
rest, a tie or ratchet(s), entered using these three buttons.
NOTE: The number of notes that can be entered into the Sequencer
simultaneously per-step is determined by the VOICE MODE switch.
REST
Press the blue REST button to enter a Rest for the current
sequence step. A Rest is used to create a musical silence in
place of a note for one or more steps in a sequence. The blue
REST button will stay lit until the next step is entered into the
sequence. During playback, the REST button will light
to indicate a rest step in the sequence.
(Continued on page 48)
ARP / SEQ (Continued)
