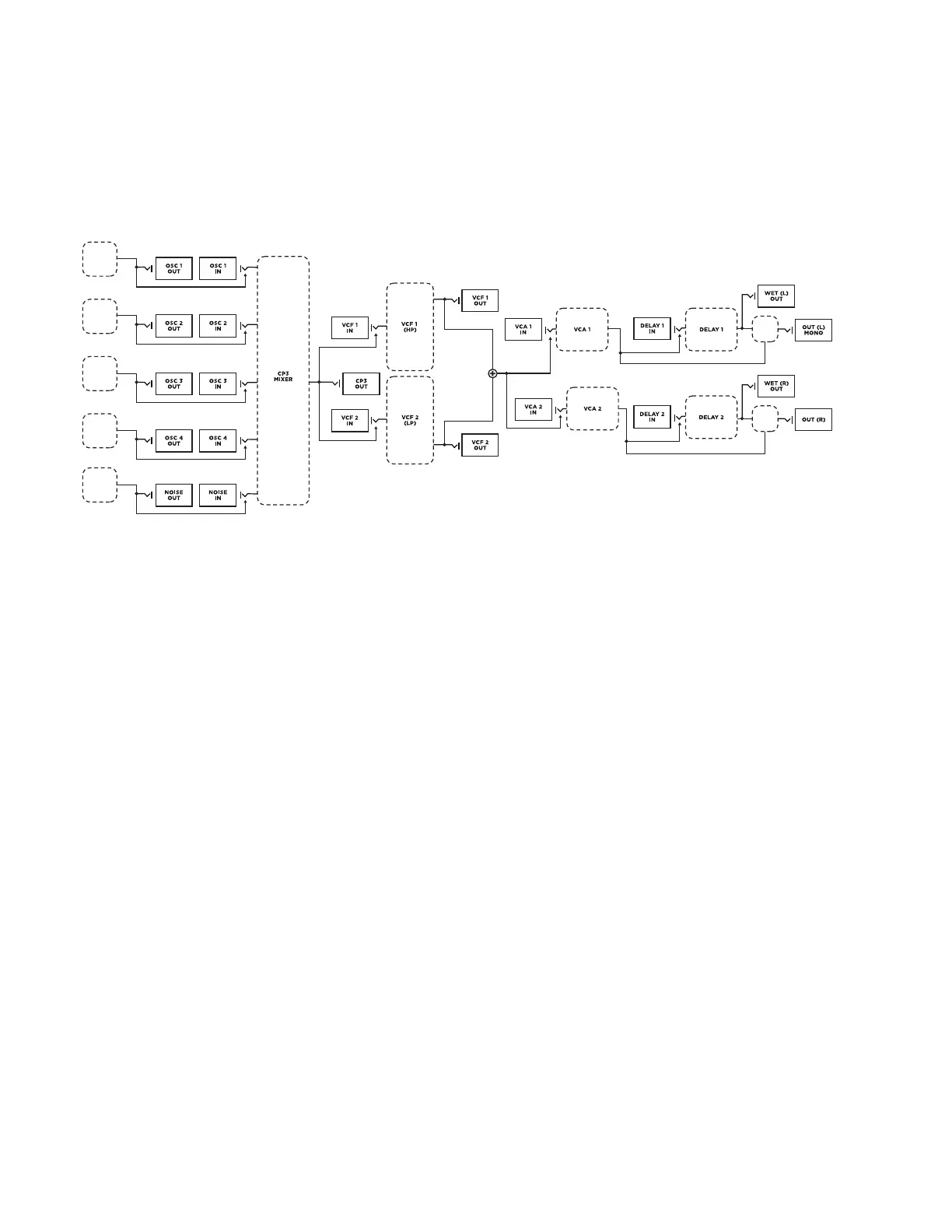

HP / LP PARALLEL
In this mode, VCF 1 is configured as a High Pass filter and VCF 2 is configured as a Low Pass filter.
Both receive the same signal from the Mixer module out, and their outputs are summed into a
monaural signal that feeds both VCA 1 IN and VCA 2 IN.
MIX
MIX
OSC 1
OSC 2
OSC 3
OSC 4
NOISE
FILTER MODE SIGNAL FLOW (Continued)
