Morgana Digifold 5000P - Set By Position - Example Document; First Fold Example; Second Fold Example; Finished Document Illustration

Page 27
SYSTEM
Paper Length = 350mm (13.8”)
Feed Direction
Leading Edge
Crease 1 Crease 2 Crease 3
Fold 1 Fold 2
Crease 1 = 97.0mm (3.8”)
Crease 2 = 179.0mm (7”)
Crease 3 = 260.0mm (10.2”)
Fold 1 = 179.0mm (7”)
Fold 2 = 260mm (10.2”)
All dimensions are from the leading edge of the paper

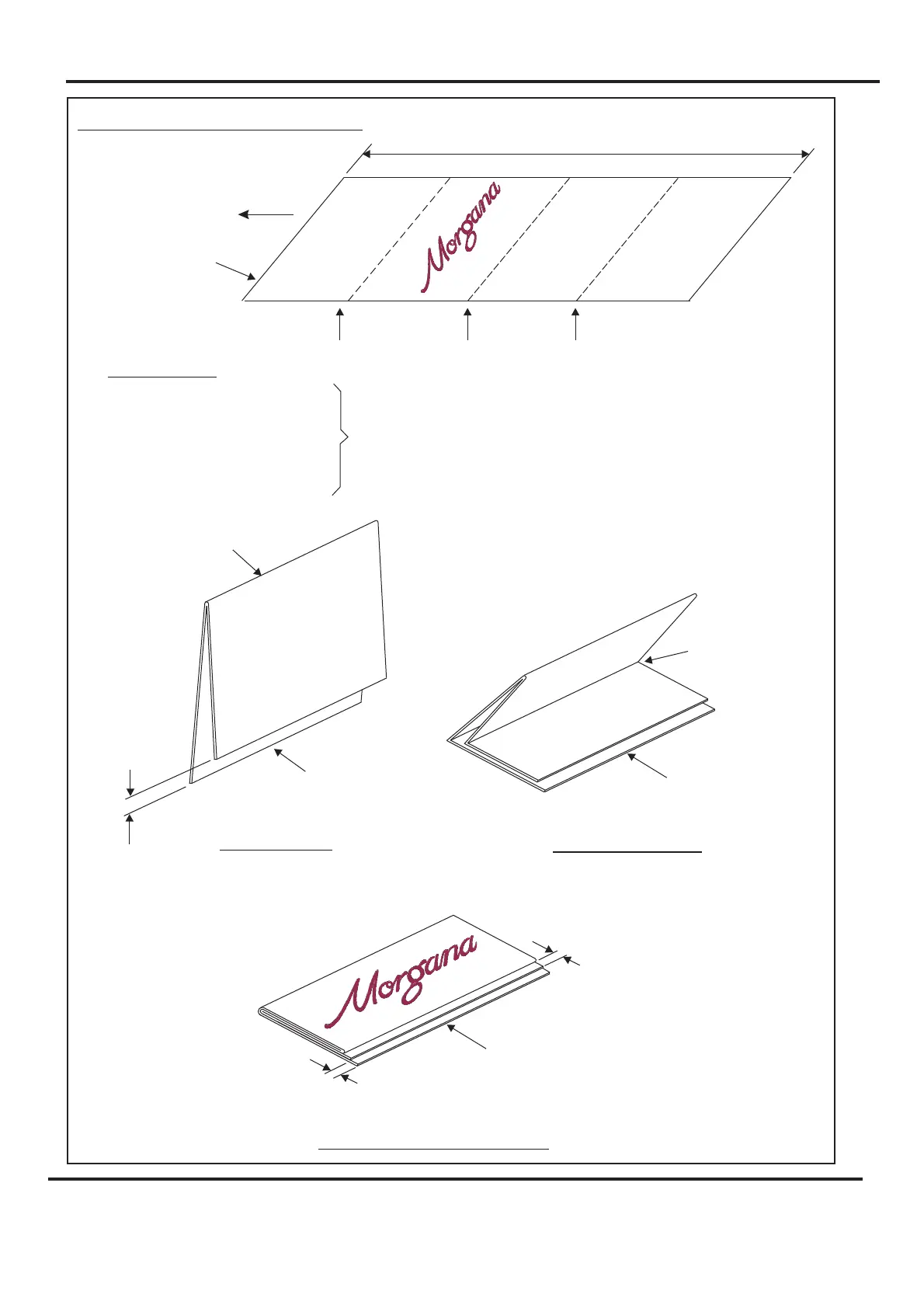

Example of Set by Position.
Crease 2
Fold 1
(0.35”)
First Fold
Second Fold
Leading Edge
Crease 3
Fold 2
= 179.0
= 260.0
Finished Document
9mm (0.35”)
Leading Edge
9mm (0.35”)
Leading Edge
SETTINGS
9mm
(7”)
(10.2”)
Digifold 5000P
Operating the Digifold
