Page 32
CREASING / FOLDING
1. Before removing the blade assembly, ensure that the lower blade / anvil is at ‘Top Dead
Centre’, see page 29.
2. Lift the top cover.
3. Using a 5mm allen key, remove the two socket head screws, one each end of the Blade
Set, as shown in FIG 32.1 below.
4. Remove the Sheet Guide Assembly, by pulling upwards on the two flanges, one each
end, as shown in FIG 32.2 and FIG 32.3 below.
5. The Blade Set can now be removed from the machine using the Blade Extractor Tools
shown in FIG 32.4 below.

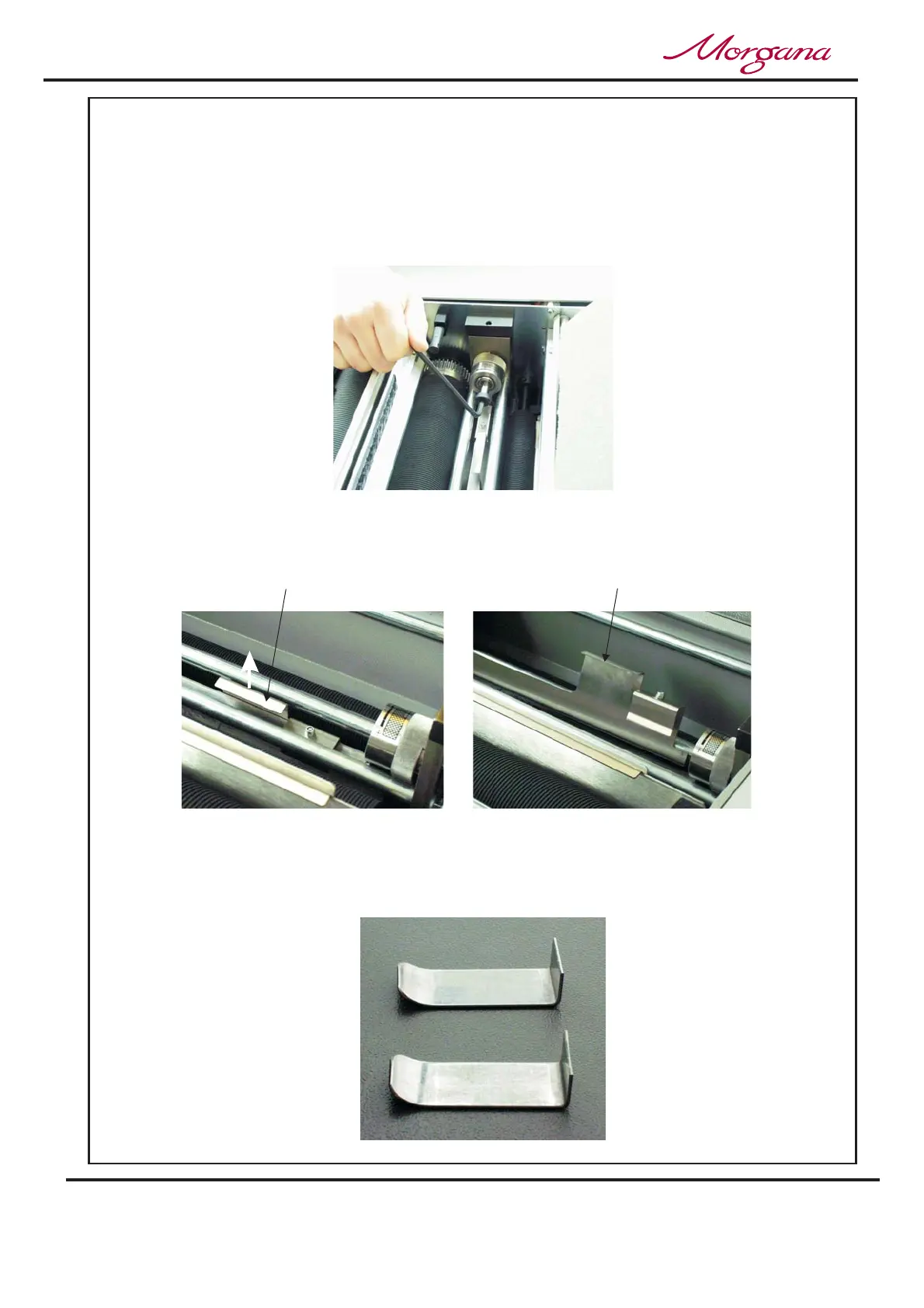

Replacing Blade Sets
FIG 32.1
FIG 32.2 FIG 32.3
Flange
Sheet Guide Assembly
FIG 32.4
Blade Extractor Tools
