Morgana Digifold 5000P - Fuse Positions and Ratings; Fuse Location and Rating Diagram

Page 51
SYSTEM

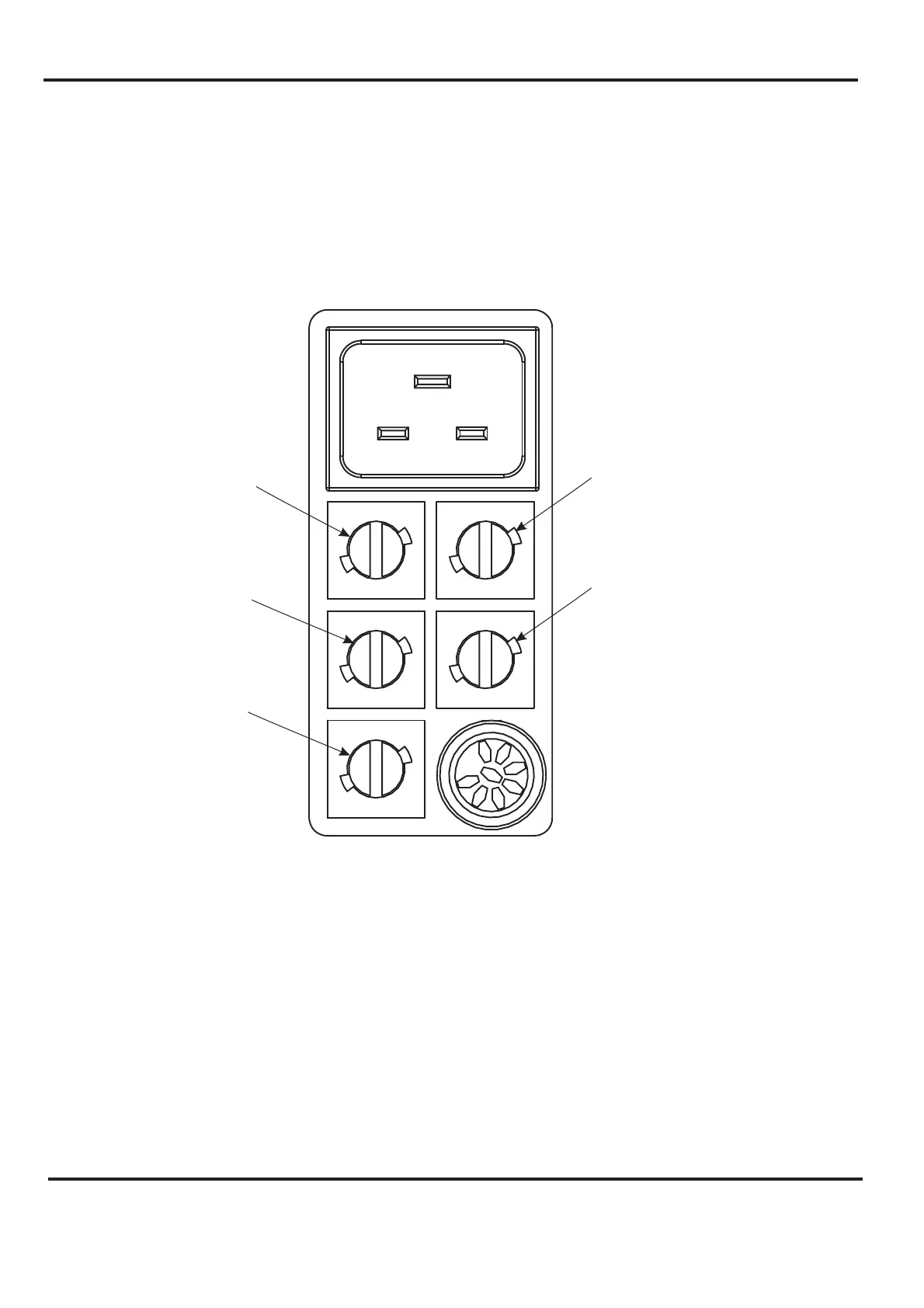

FUSE POSITIONS & RATINGS
PSU (5V / 24V)
F3.15AH 250 (613-023)
PSUs (24V & 48V)
T6.3AH 250 (681-019)
T315mAH 250 (681-011)
SPARE FUSE
POSITION
ANTI-STATIC UNIT
(FUSIBLE PSU (5V/24 V)
(FUSIBLE PSUs (24V&48V)
(FUSIBLE ANTI-STATIQUE)
(POSITION PORTE
FUSIBLE)
(POSITION ET CLASSIFICATION DES FUSIBLES)
SPARE FUSE
POSITION
(POSITION PORTE
FUSIBLE)
Digifold 5000P
