Page 15
SYSTEM

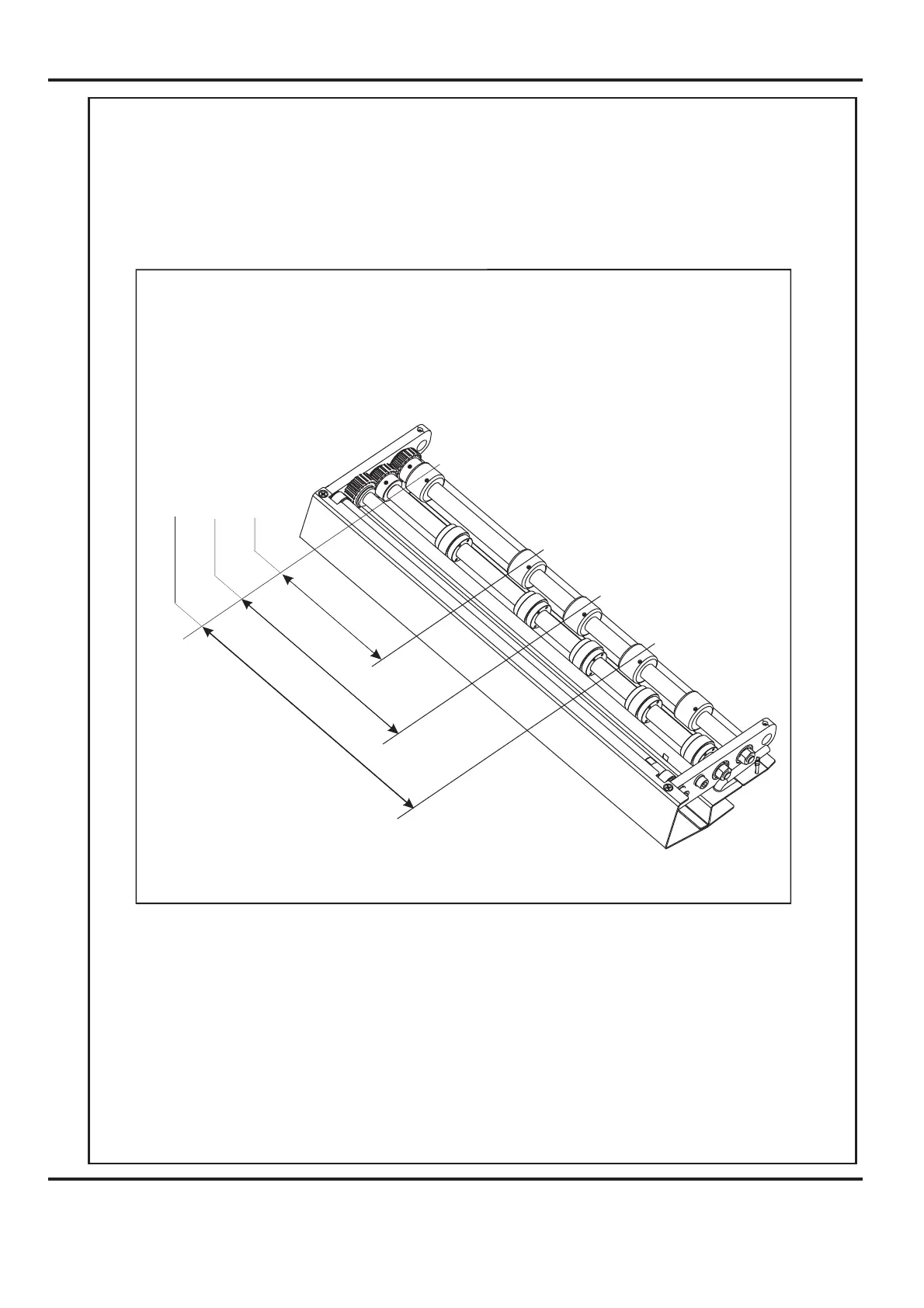

FIG 15.1
A5 Sheet (5.8”)
A4 Sheet (8.25”)
A3 Sheet (11.7”)
WHEEL & HUB ARRANGEMENT, (WHEN FOLDING)
Setting the positions of drive wheels and hubs
It is important that the drive wheels and drive hubs, on the roller shafts, are arranged across
the width of the media being creased; this is done to ensure that the media is accurately
driven and supported through the rollers. A suggested layout, , is shown
below (see FIG 15.1). The suggested layout, is different, and is shown on
page 38 (see FIG 38.1).
The drive wheels and hubs are fixed to the rollers by grub screws.
when Folding
when perfing,
Digifold 5000P
Operating the Digifold
