Operation
5-26 January 2019
Target - Pack Force Rate
Preset 1 - 2
Controller Options - Continued
Topcon - X35 Apollo - Continued
Pack Control Setup - Continued
3. Pack Control Window
Drill Track Control - When Master
Switch is activated, Lift/Lower will
be automatically engaged.
4. Set the target Pack force by pressing the desired
preset icon. The Target Pack Force will now be
displayed in the window.

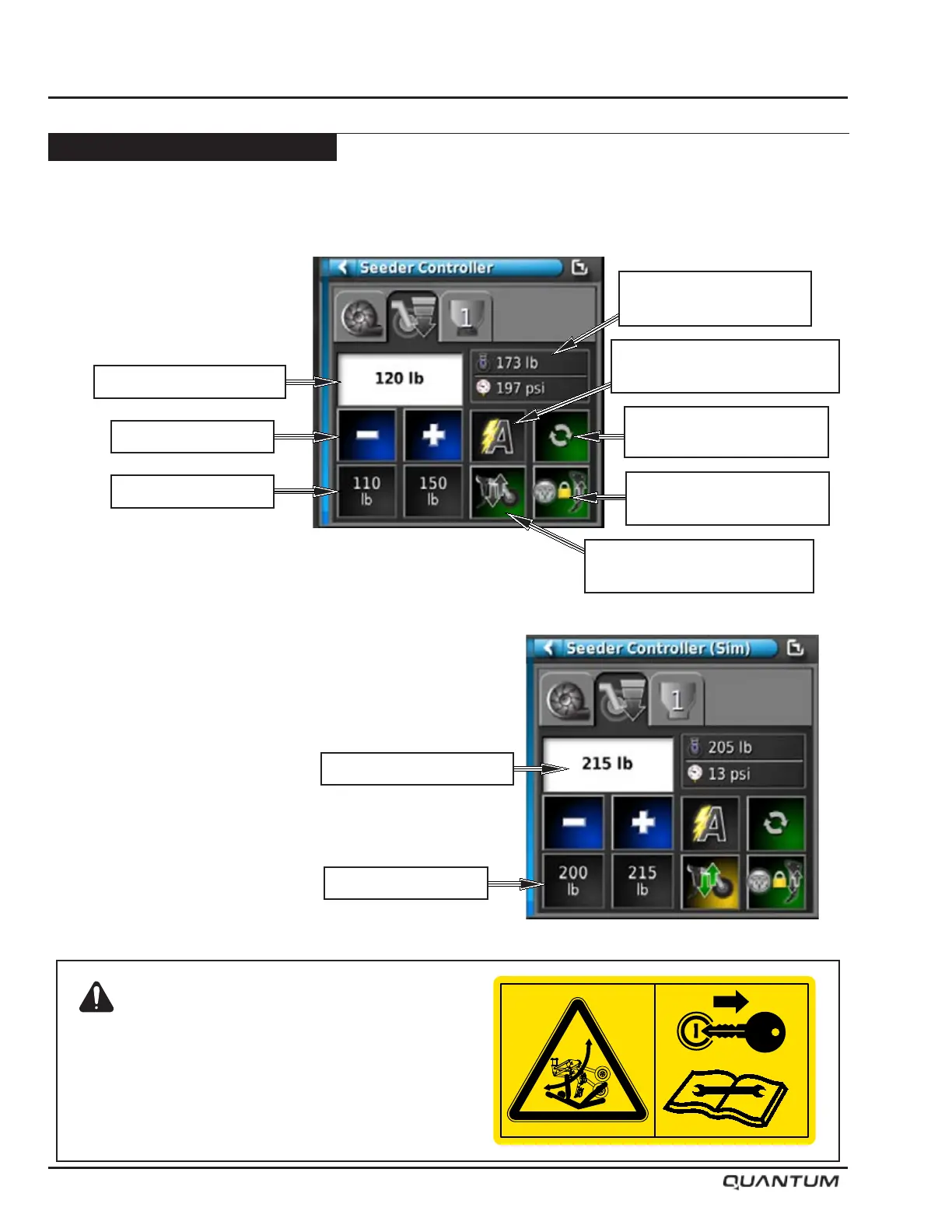

Target - Pack Force Rate
Increase/Decrease
Preset 1 - 2
Current Pack Force /
Hydraulic Pressure
AUTO MODE / Manual Mode
(Set to Auto)
FLOAT MODE - Turns
Pack Control ON / OFF
Drill Track Control
(Auto Lift)
Lift Control (Up / Down)
Over Ride
Warning
Openers drop with full down force when
powering up or rebooting the X35 with
hydraulics engaged.
