57
6.

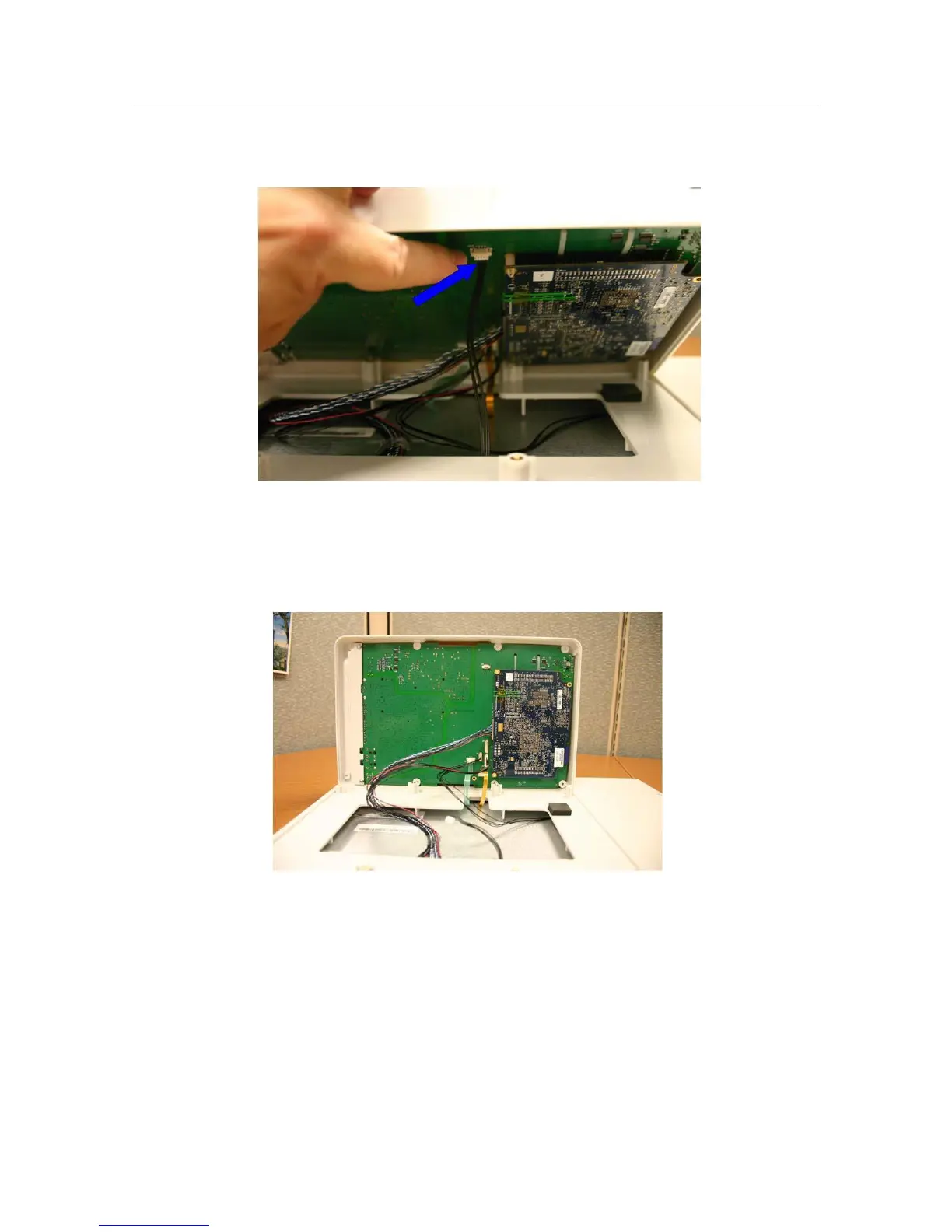

Locate the 4 wire cable to the Beacon board (closest cable to top of the unit, Item 36) and remove the cable
from the connection to the main board.
7.
Once the Beacon Board cable is disconnected from the main board, the Rear Housing can be raised for
easier access to the remaining cables.
Note: For the S12 monitor the Beacon Board and cable will now be loose and can be removed from the
LCD housing.
