LCD Removal & Replacement S12
Please note that the LCD and front bezel for the S12 comes as a complete assembly (Item 23). If the LCD requires
replacement Mortara recommends replacing the entire assembly. If the LCD is OK, but the touch screen or bezel
require replacement, Mortara recommends replacing the Bezel/Touchscreen assembly (Item 25).
1.
Remove the Rear Housing from the unit.
2.

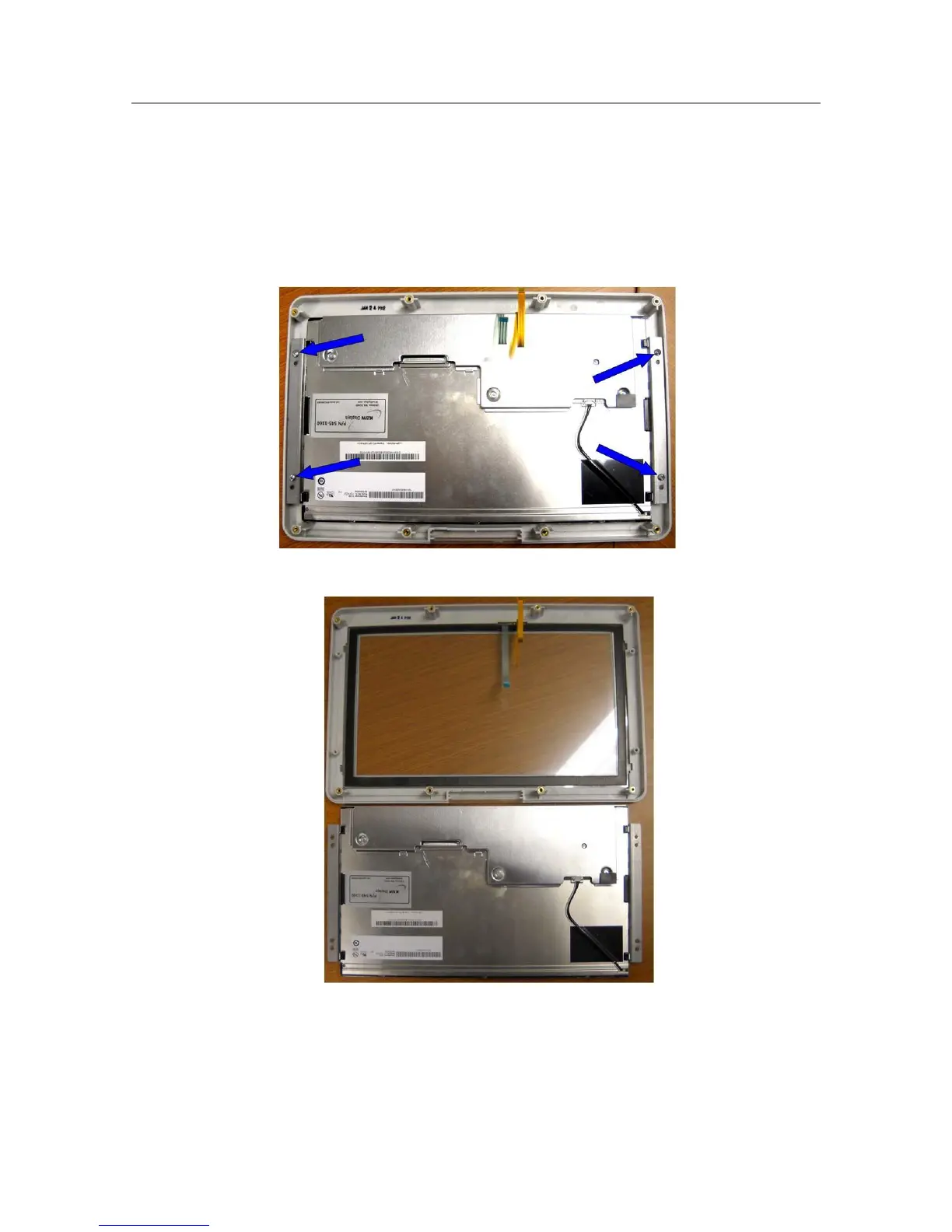

Locate the 4 screws holding the LCD to the front bezel and remove them.
3.
Lift the LCD out of the Front bezel
