Battery Replacement
CAUTION: The battery should be removed from the monitor if the monitor is to be stored for an
extended period of time.
The battery may need to be replaced if it is no longer holding a charge. Under optimum conditions, the battery
lifetime is approximately two years. Replacing the battery should only be done by qualified service personnel.
WARNING: Use only APPROVED BATTERIES as listed in the Accessories section. Use of
unapproved batteries may cause a hazard and will void the warranty.
CAUTION: Batteries should only be replaced by trained service personnel.
To replace the battery:
1.
Obtain a replacement battery from Mortara (see Accessories section for part number).
2.
Power-off the Surveyor patient monitor.
3.
On the back of the Surveyor patient monitor, disconnect the external power supply from the monitor.
4.
Remove the battery cover with the VESA mounting plate by removing the four screws holding the cover as
shown in the picture below.
5.
Remove the battery by pulling on the top side of the battery as shown in Figure 1.
6.
Insert new battery ensuring that the connector is properly engaged.
7.
Carefully reinstall back cover and screws.
8.
Properly dispose of the old battery (see Disposal section).

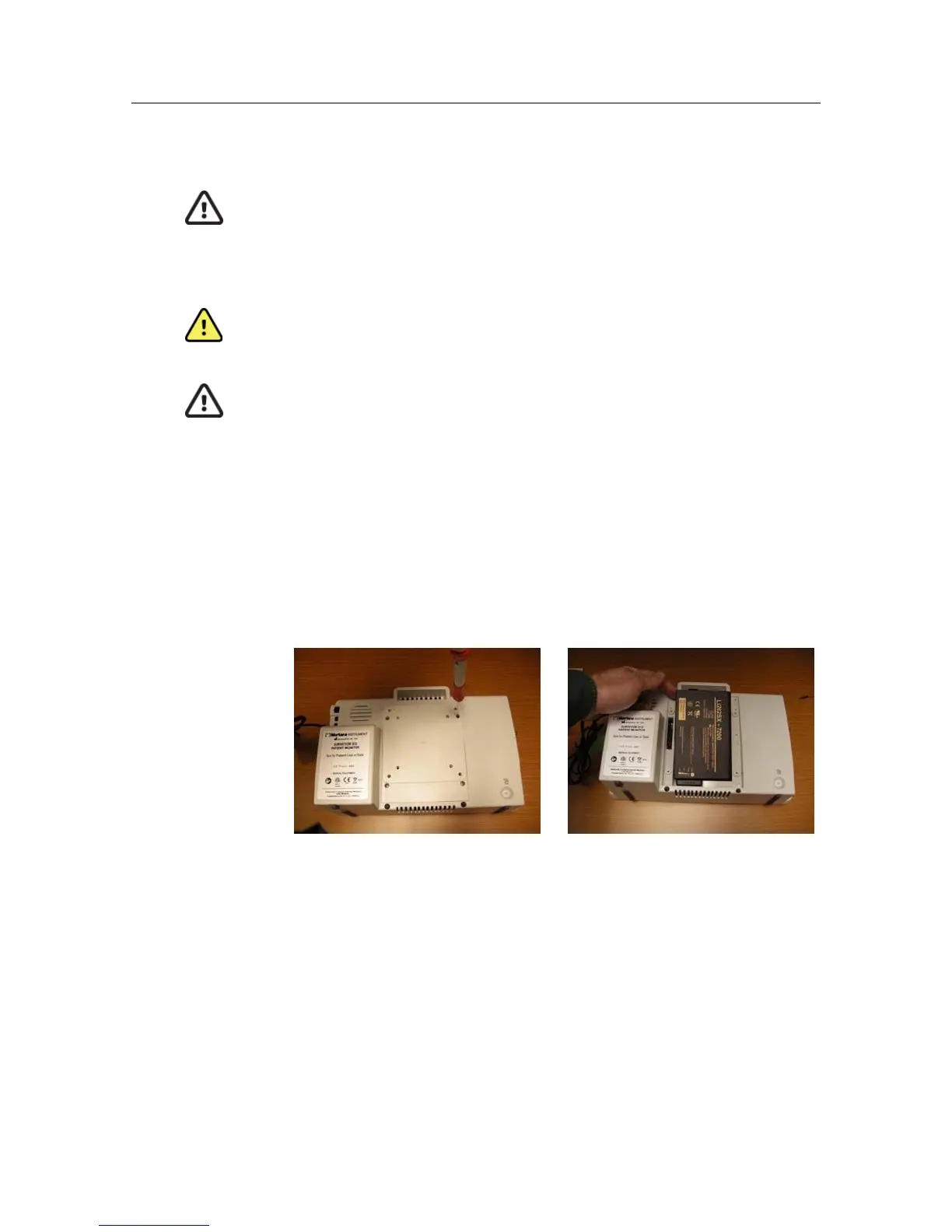

Figure 1 Battery
Replacement
Battery Life and Charge Time
Estimated Battery Life
S12: 3 hours*
S19: 2 hours*
*Fully charged new batteries at 25 °C for the following conditions: continuous ECG and SpO2, as well as NIBP
measurements at every 15 minute interval.
Estimated Battery Charge Time
When OFF, 5 hours
When ON, S12: 7 hours
When ON, S19: 20 hours
