GENERAL CARE AND MAINTENANCE
32

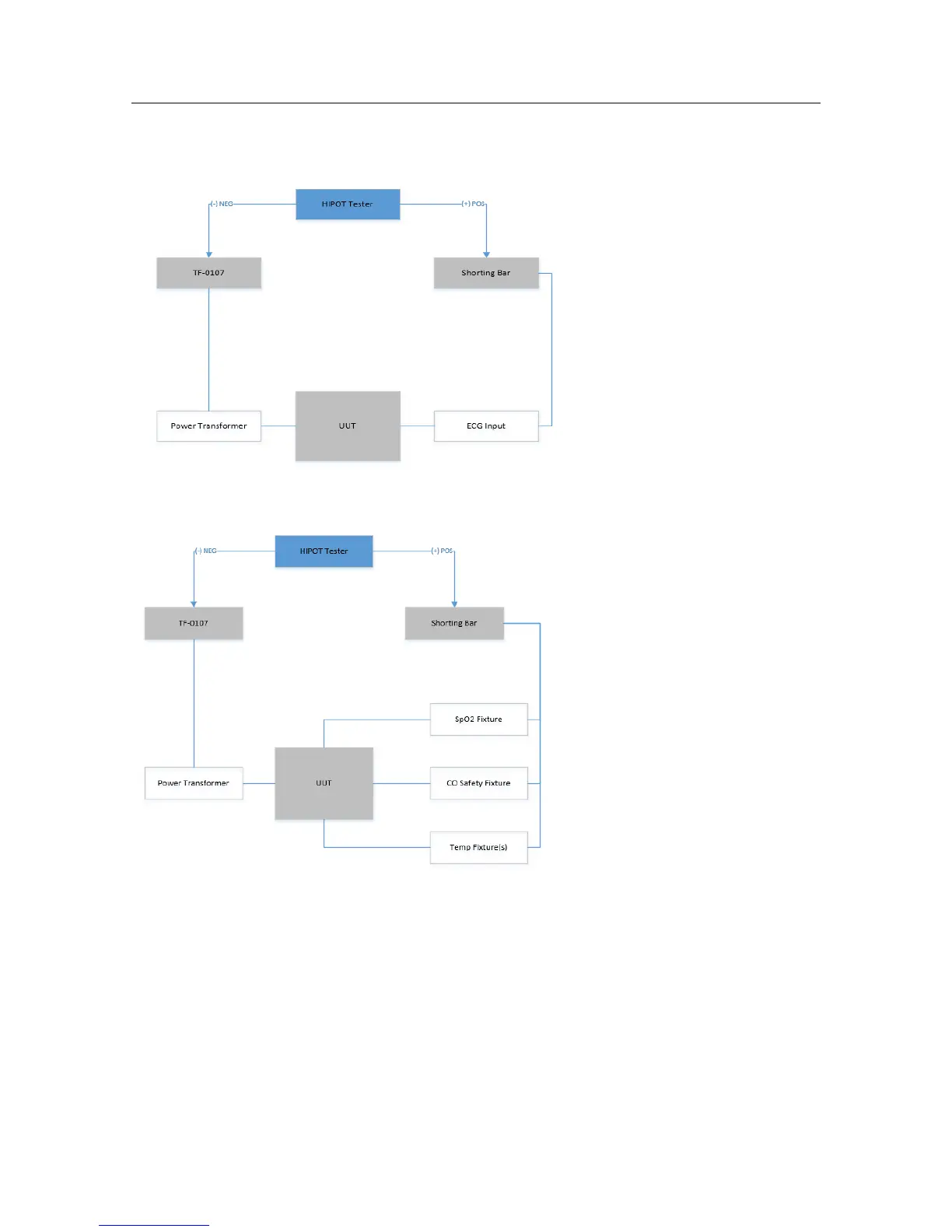

ECG Input Connection Diagram:
Applied Part Connection Diagram:
Leakage Testing
The factory External AC/DC Power Module (Item # 4101-012) and appropriate regional AC power cord
should be used to perform the leakage tests defined below.
 Earth Leakage
 Enclosure Leakage
Non-conductive (fully insulated) chassis testing should be performed utilizing 200 cm2 conductive foil
or equivalent.
 Patient Leakage
Applied part – patient input (utilize Mortara patient cable 9293-050-60 or -61)
 Patient Leakage (mains on applied part)
Applied part – patient input (utilize Mortara patient cable 9293-050-60 or -61)
