61
3.

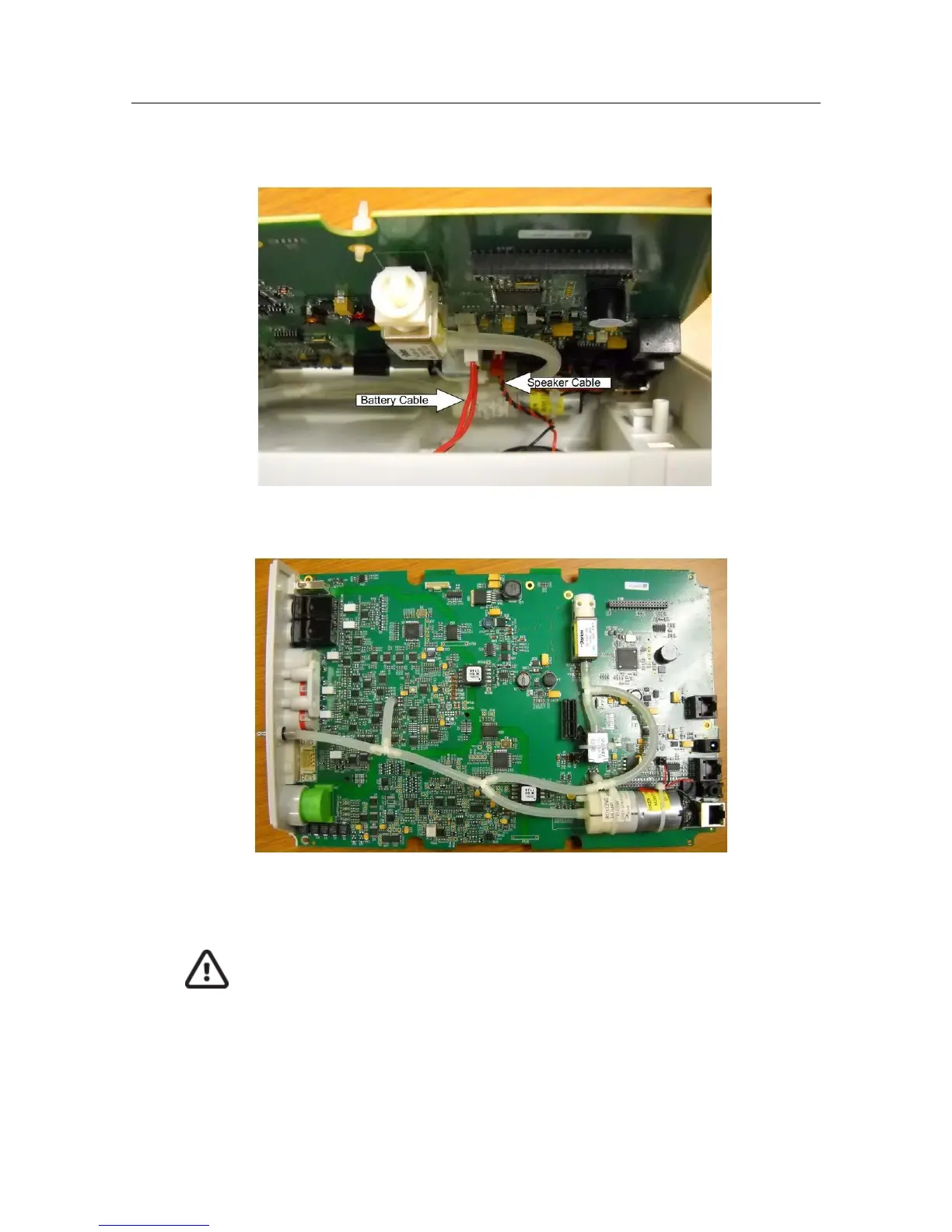

Carefully lift the main board out of the Rear Housing, there will be at least 2 cables that will need to be
removed, the Battery Interconnect Cable (Item 4) and the Speaker Cable (Item 1).
4.
Reach between the Rear Housing and the Main board and remove the Battery Interconnect Cable (Item 4)
and Speaker Cables (Item 1).
Note - There may be other cables connected to the Main Board (based on the optional equipment) before it
can be removed from the Rear Housing.
5.
Reassemble in reverse order
CAUTION: Ensure the hoses are not pinched during reassembly of the unit.
