UNIT DISASSEMBLY

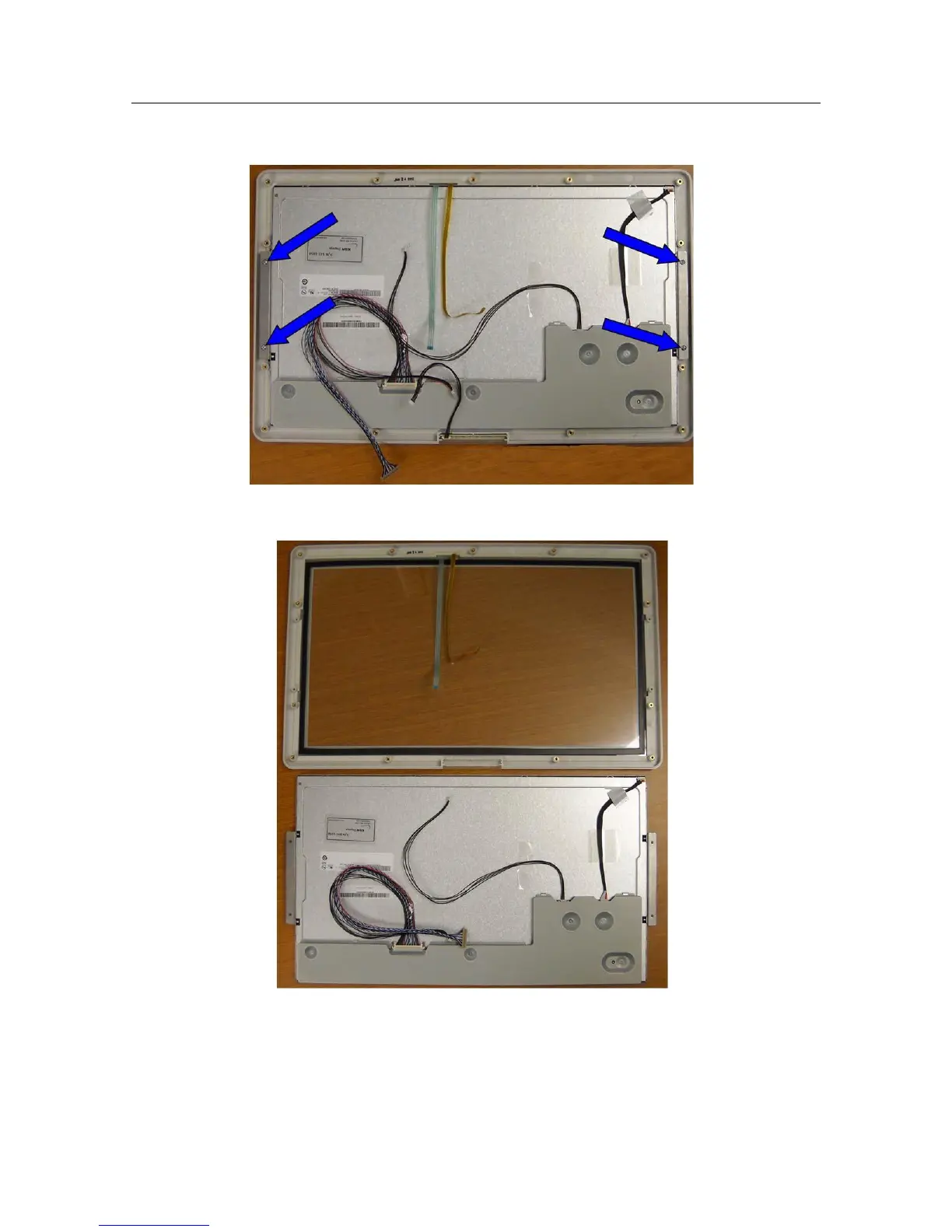

Locate the 4 screws that hold the LCD to the front LCD Bezel.

Lift the LCD out of the Front bezel

Reassemble in reverse order

Ensure that the cables do not get pinched when reassembling.
