Motion Control Engineering Motion 3000ES

Installation
11

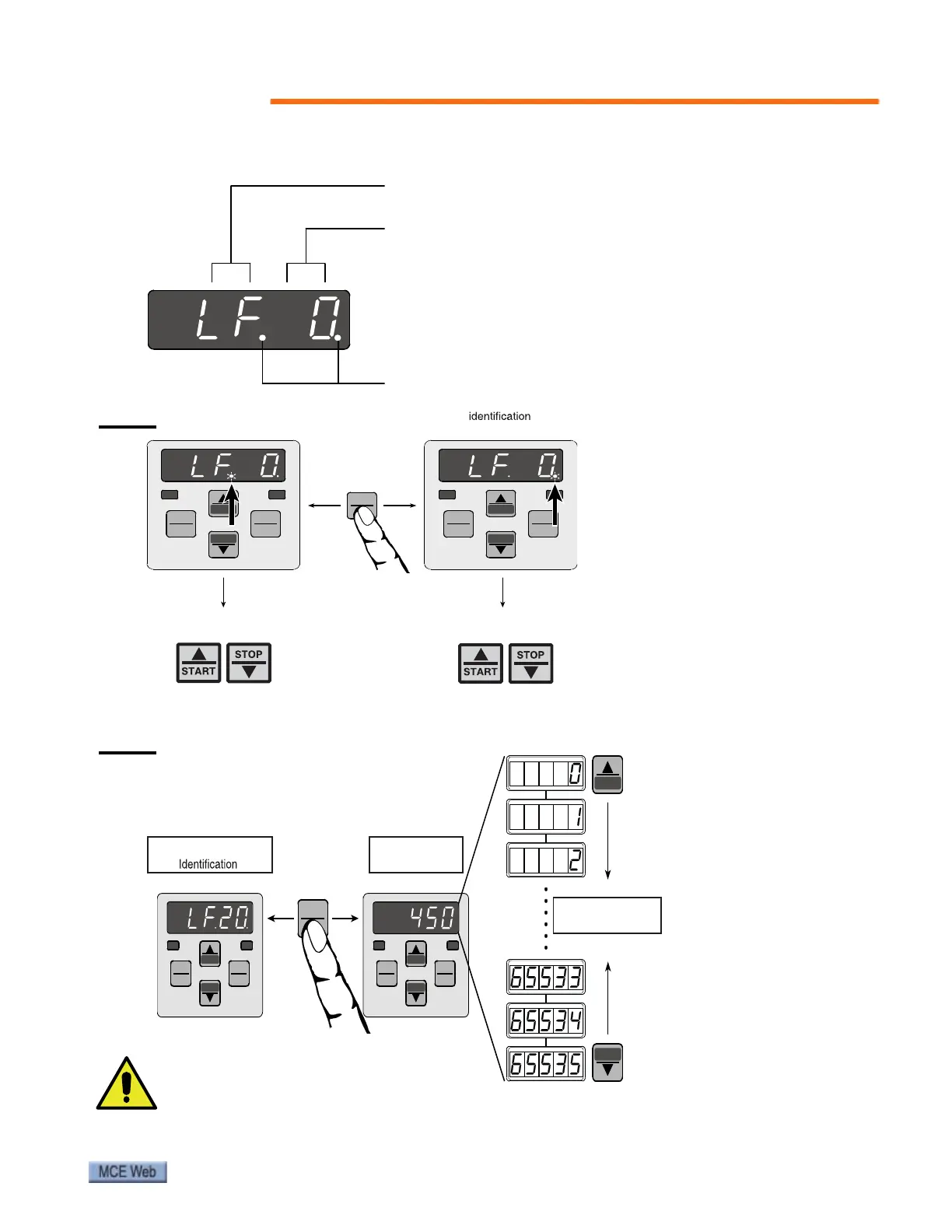

KEB F5 The KEB F5 drive uses an LED display and a membrane keypad. Parameters are
displayed and changed as shown below.
The blinking point determines
the active (changeable) part of
the parameter
Display Parameter
Group
Display Parameter Number
ENTER
F/R
START
STOP
FUNC.
SPEED
ENTER
F/R
START
STOP
FUNC.
SPEED
ENTER
F/R
change between
parameter group and
parameter number
With the keys
select the respective
parameter number
1,2,3,4...99
With the keys
select the
parameter group
“
US ”, “ LF ”, “ LP ”, “ Ld ”,
“
ru ”, “ do ”
START
STOP
FUNC.
SPEED
START
STOP
FUNC.
SPEED
ENTER
F/R
START
STOP
FUNC.
SPEED
ENTER
F/R
Display Parameter Display Parameter
Value
Increase/Decrease
Parameter Value
Parameter Display
Parameter Selection
Parameter Change
Changes are accepted and saved only after ENTER is pressed.
Some parameters (i.e., motor data) cannot be changed while the escalator is operating.
