Motion 3000ES Escalator Control
64 Manual # 42-02-E001
Configuration
The top board, TC-FCL, provides the controls to configure the module for job requirements.
Such configuration is completed at the factory when the module is shipped installed in a con-
troller. If the module is a modification to an existing control, check this instruction for proper
settings. If you are replacing an existing module, set up the new module to match.

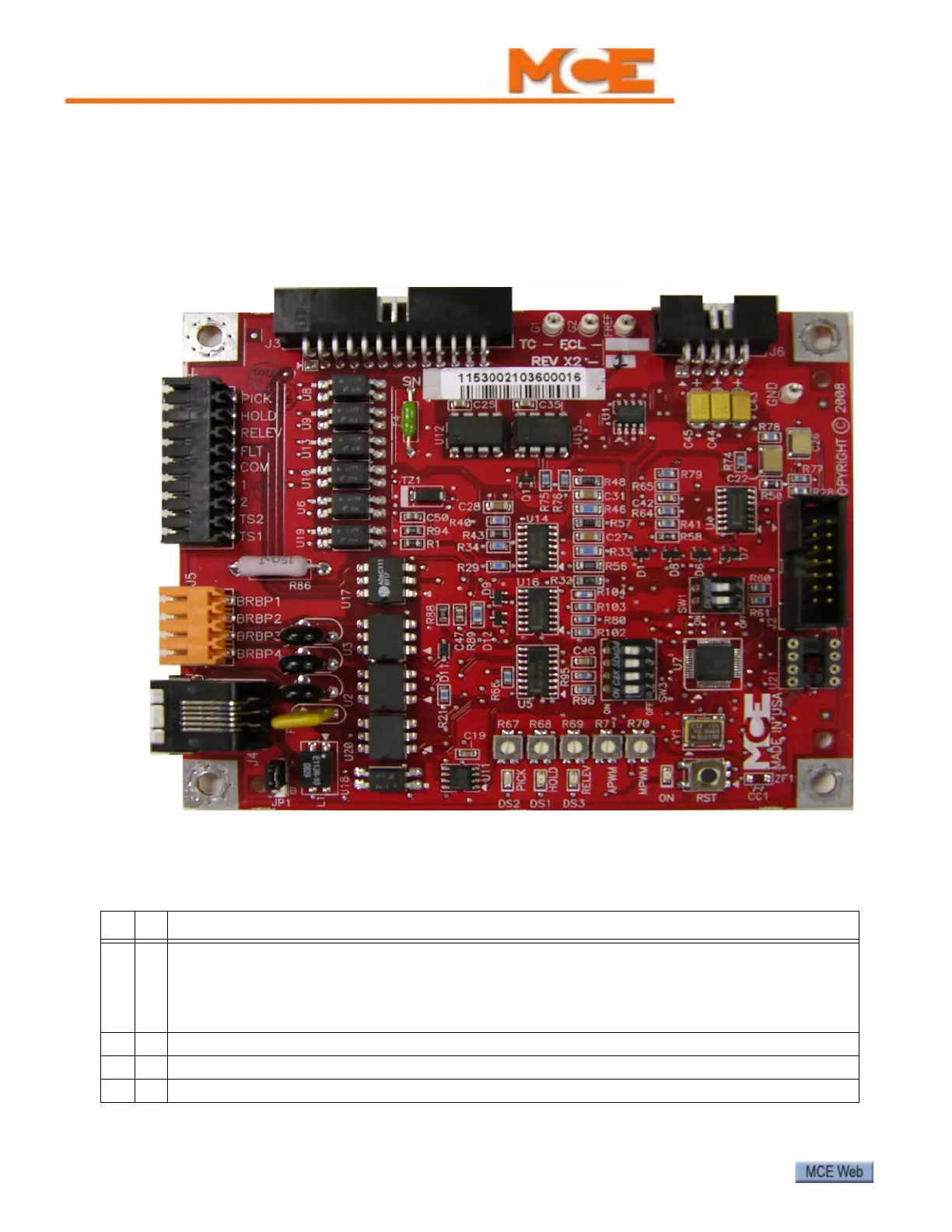

Figure 10. Configuration
Switches and Jumpers
Table 22. SW1, Manual Bypass
21 Description
Off Off Manual brake pick enabled (will cause Main IGBT stuck open fault to be indicated until the brake
contactor is picked to allow power to the brake module). In this mode, a manual brake pick
switch connected between BRBP1 and BRBP3 will energize the brake coil connected between
BRBP2 and BRBP4 and immediately lift the brake regardless of the status of the escalator control-
ler.
Off On Unused
On Off Unused
On On Unused
