Motion Control Engineering Motion 3000ES

Motion 3000ES Escalator Control
2 Manual # 42-02-E001
The standard Motion 3000 shipment contains two enclosures for non-VVVF drive units or
three enclosures for VVVF drive units. This configuration allows simpler installation and
reduces wire runs.

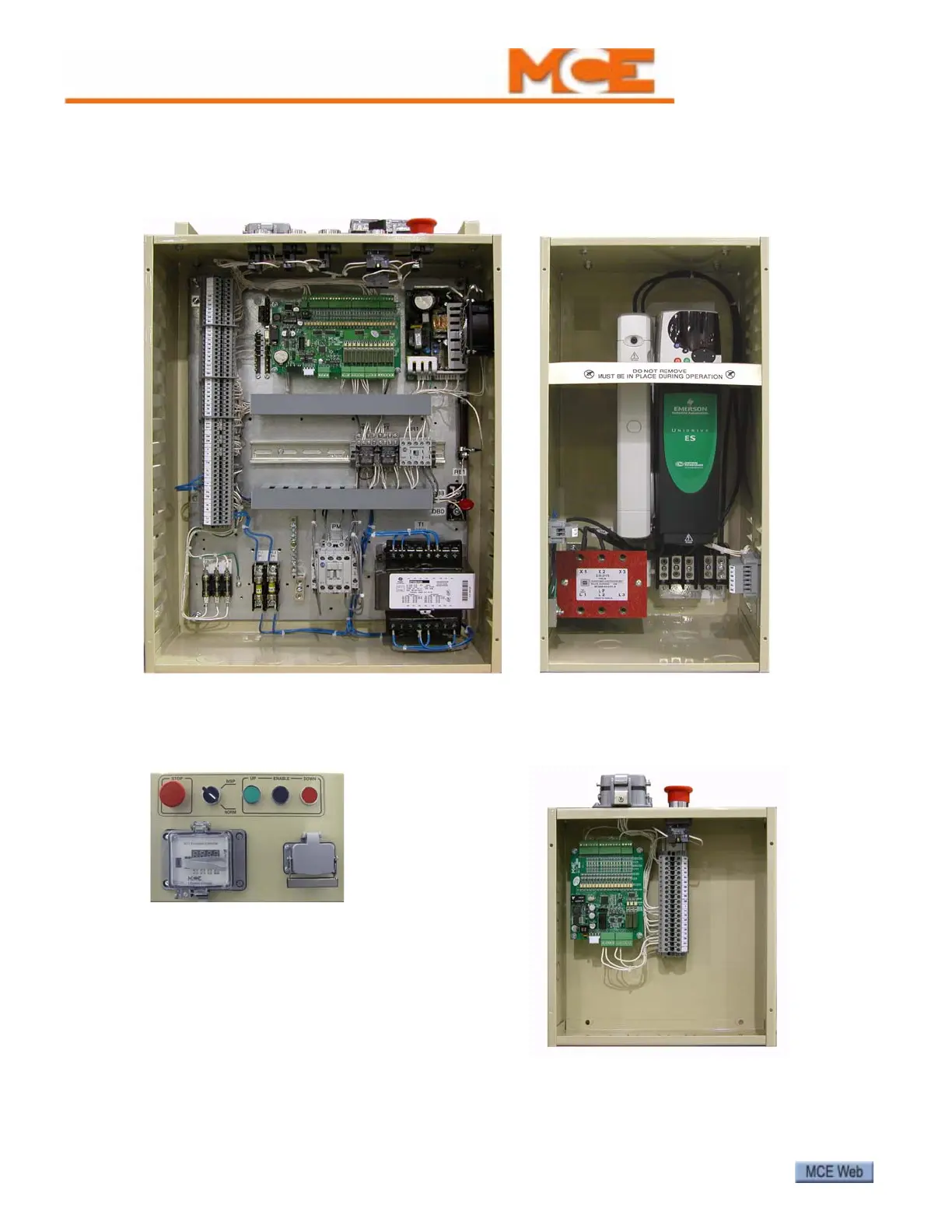

Lower entry cabinet
12” x 12” x 4” (31 x 31 x 10 cm)
Main Upper entry cabinet
24” x 18” x 8” (61 x 46 x 20 cm)
Drive cabinet (if used)
24” x 12” x 12” (61 x 31 x 31 cm)
Main cabinet (top view) controls,
standard programmer, and
inspection control plug
