Disassembly/Reassembly Procedures: Radio Disassembly 8-13

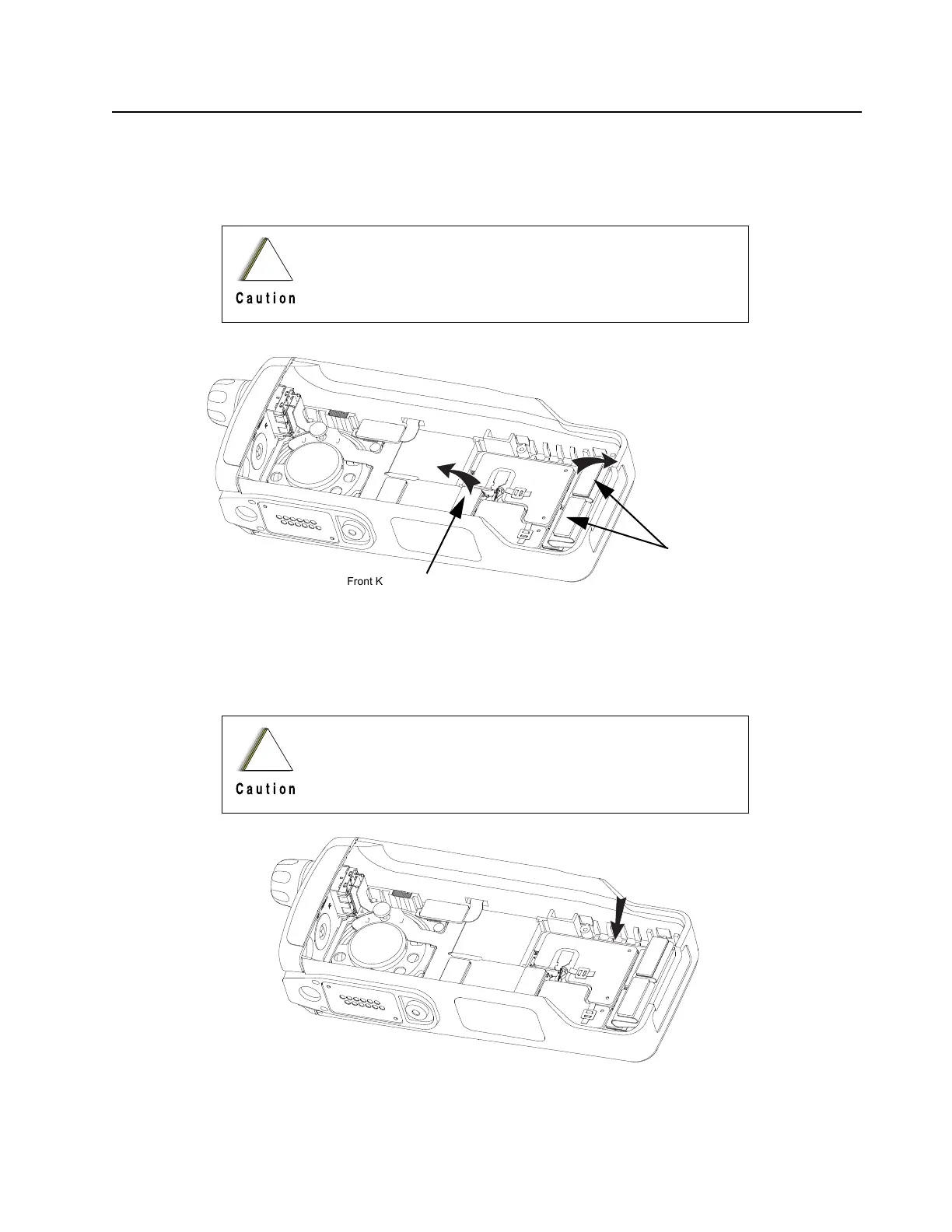

8.4.5.6 Removal of the Keypad Board (27)
1. With the Keypad Retainer (28) removed, gently unplug the connectors of the Front Kit flex (2)
and Back Kit Flex (31) to remove the Keypad Board (27) as shown in Figure 8-18.
Figure 8-18. Unplug the Front Kit Flex and Back Kit Flex Connectors
2. With the connectors unplugged, gently lift the Keypad Board (27) out of the Front Housing
(16) with the aid of the black stick as shown in Figure 8-18.
Figure 8-19. Remove the Keypad Board
When separating the flex and small interconnects, care is
needed to avoid damage to the interconnect and surrounding
on-board components
When lifting the Keypad Board with the black stick, care is
needed to avoid piercing and damage to the Keypad.
Front Kit Flex Connector
Back Kit Flex Connectors
To Next Page
