8-2 Disassembly/Reassembly Procedures: APX 2000/ APX 4000 (Two Knobs) Exploded View (Main Subassemblies)

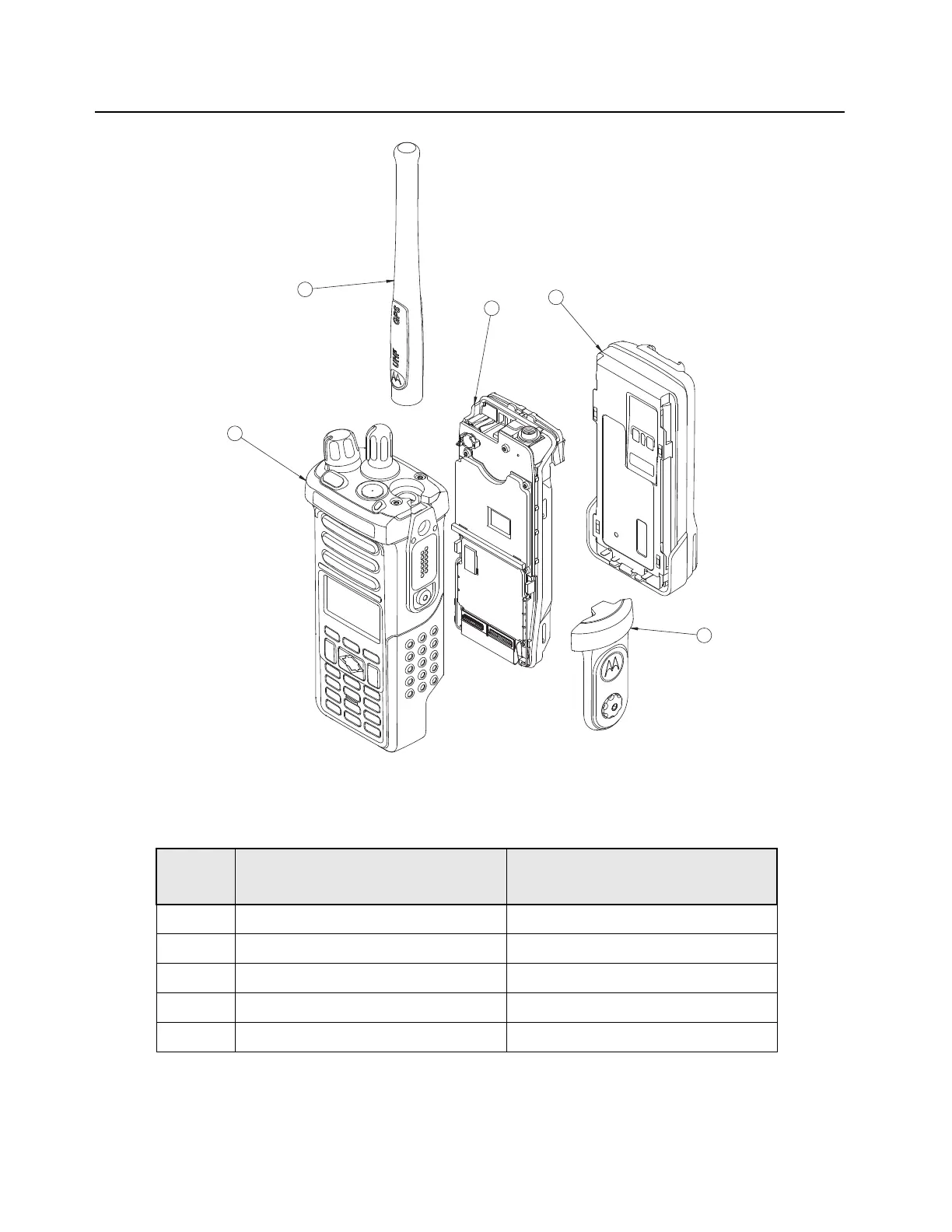

Figure 8-1. APX 2000/ APX 4000 (Two Knobs) Partial Exploded View
Table 8-1. APX 2000/ APX 4000 (Two Knobs) Partial Exploded View Parts List
Item
Letter
Description Exploded View and Parts List
A Front Kit Assembly Refer Figure 10-1.
B Back Kit Assembly Refer
Figure 10-2.
C Battery Assembly Refer
Figure 10-2.
D Accessory-Connector Cover Assembly Refer
Figure 10-1.
E Antenna Assembly Refer
Figure 10-1.
A
E
B
C
D
