RFID Sample Application 4 - 7
•
Max size of memory bank - Storage to allocate for the memory bank's data.
•
Apply - Select to apply the configuration changes.
Filter Settings
Use the sample application’s filter settings to set filters for tag reading. The application supports up to two pre-filters
and two post-filters. By default, the window displays the latest filter information. Add or delete the filter by selecting
Use Filter.
Pre-Filter
To select pre-filter settings, select Operations > Filter > Pre-Filter.

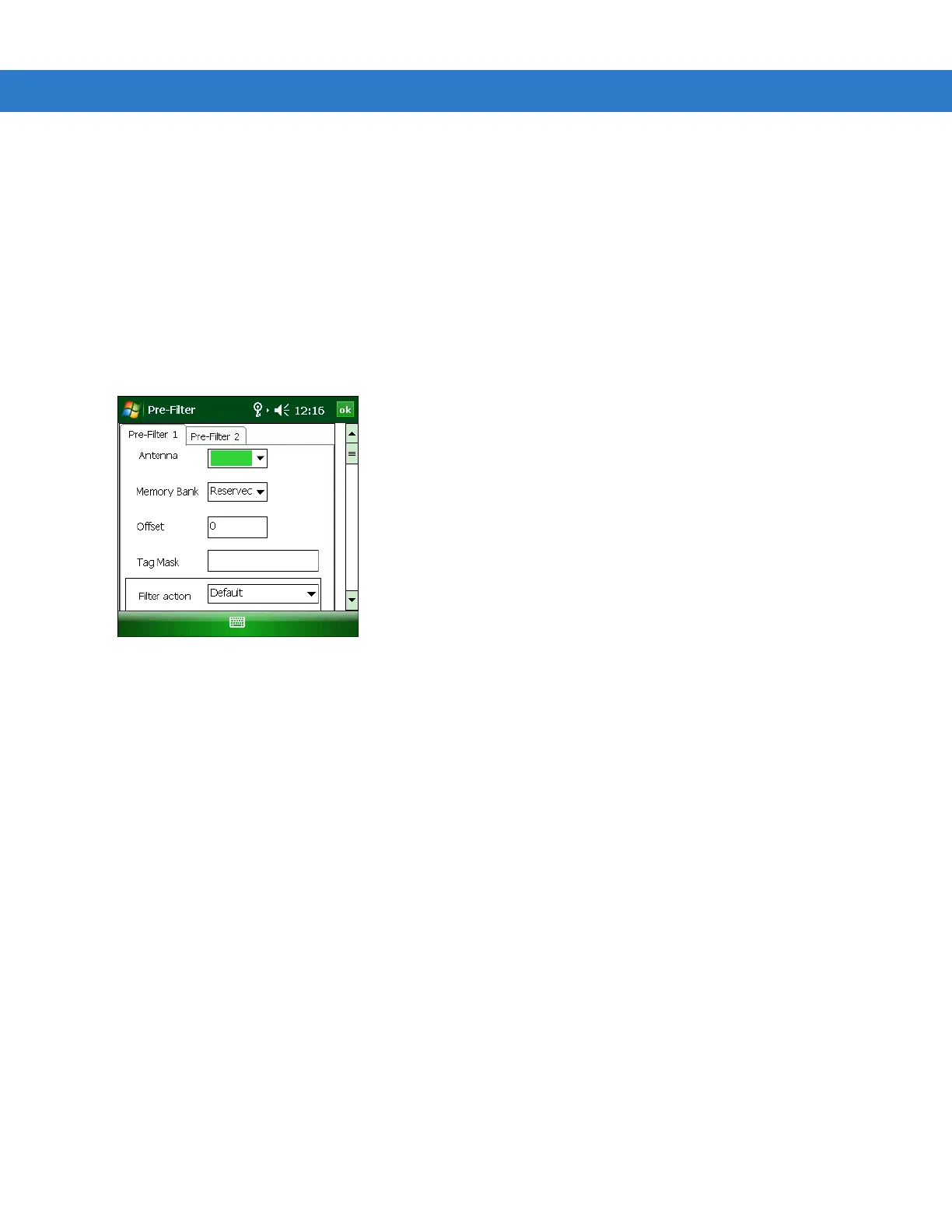

Figure 4-10
Pre-Filter Window
This window includes the following fields:
•
Antenna - Selecting an antenna ID updates the configuration values in the other fields.
•
Memory Bank - Select the memory bank.
•
Offset - The first (msb) bit location of the specified memory bank against which to compare the tag mask.
•
Tag Mask - The pattern against which to compare the specified memory bank.
•
Filter action - Select the required filter action. For more information, refer the Gen2 specification available at
http://www.epcglobalinc.org/standards/.
